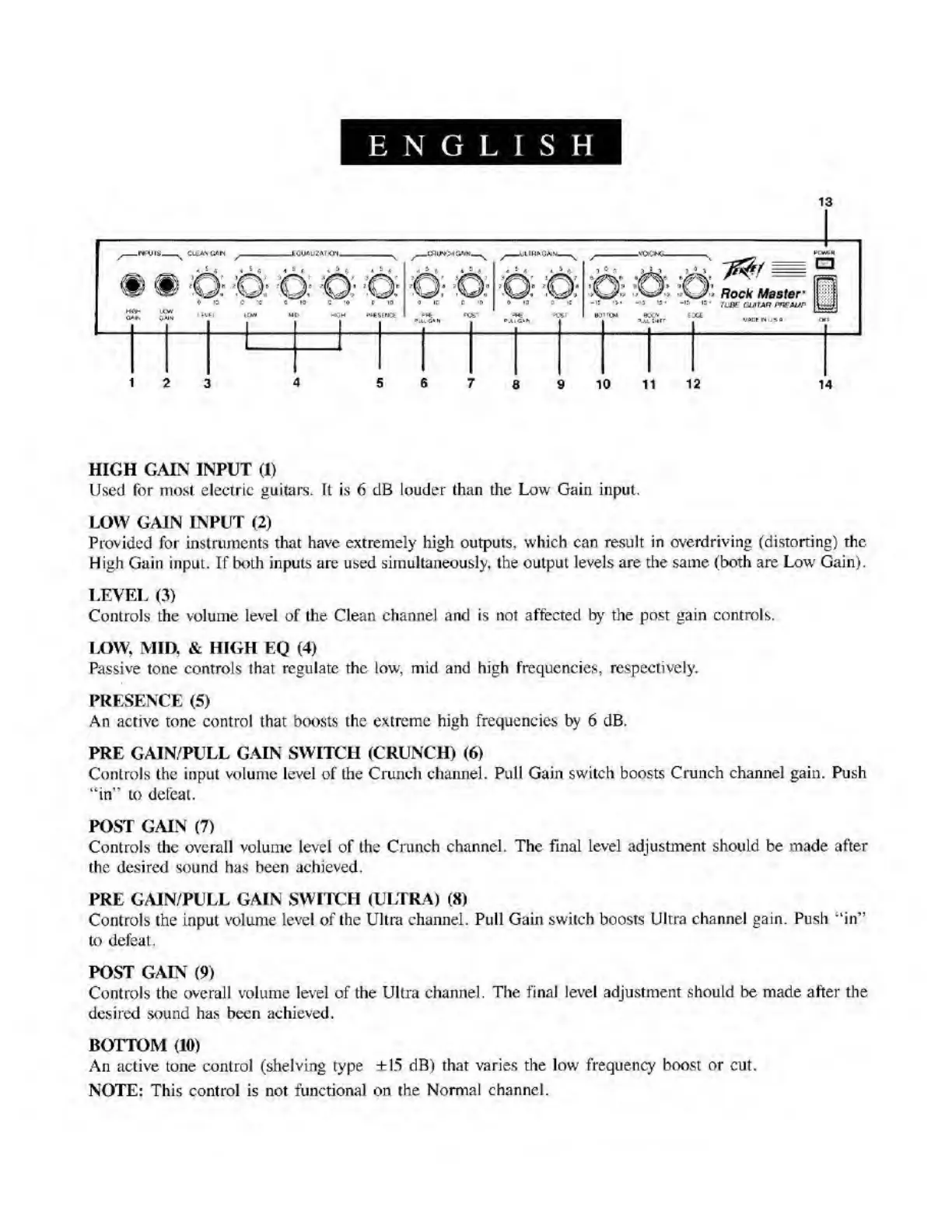

ENGLISH
13
HIGH GAIN INPUT (1)
Used for most electric guitars. It is 6 clB louder than the Low Gain input.
LOW GAIN INPUT (2)
Provided for instniments that have extremely high outputs, which can result in overdriving (distoning) the
High Gain input. If both inputs are used simultaneously, the output levels are die same (both are Low Gain).
LEVEL (3)
Controls the volume level of the Clean channel and is not affected by the post gain controls.
IX)W, MID, & HIGH EQ (4)
Passive tone controls that regulate the low, mid and high frequencies, respectively.
PRESENCE (5)
An active tone control that boosts the extreme high frequencies 6 dB,
PRE GAIN/PULL GAIN SWITCH (CRUNCH) (6)
Controls the input volume level of the Crunch channel. Pull Gain switch boosts Crunch channel gain. Push
“in” to defeat.
POST GAIN (7)
Controls the overall volume level of the Crunch channel. The final level adjustment should be made after
the desired sound has been achieved.
PRE GAIN/PULL GAIN SWITCH (ULTRA) (8)
Controls the input volume level of the Ultra channel. Pull Gain switch boosts Ultra channel gain. Push “in”
to defeat.
POST GAIN (9)
Controls the overall volume level of the Ultra channel. The final level adjustment should be made after the
desired sound has been achieved.
BOTTOM (10)
An active tone control (shelving type ±15 dB) that varies the low frequency boost or cut.
NOTE: This control is not functional on the Normal channel.
