Peavey TNT 115 User Manual

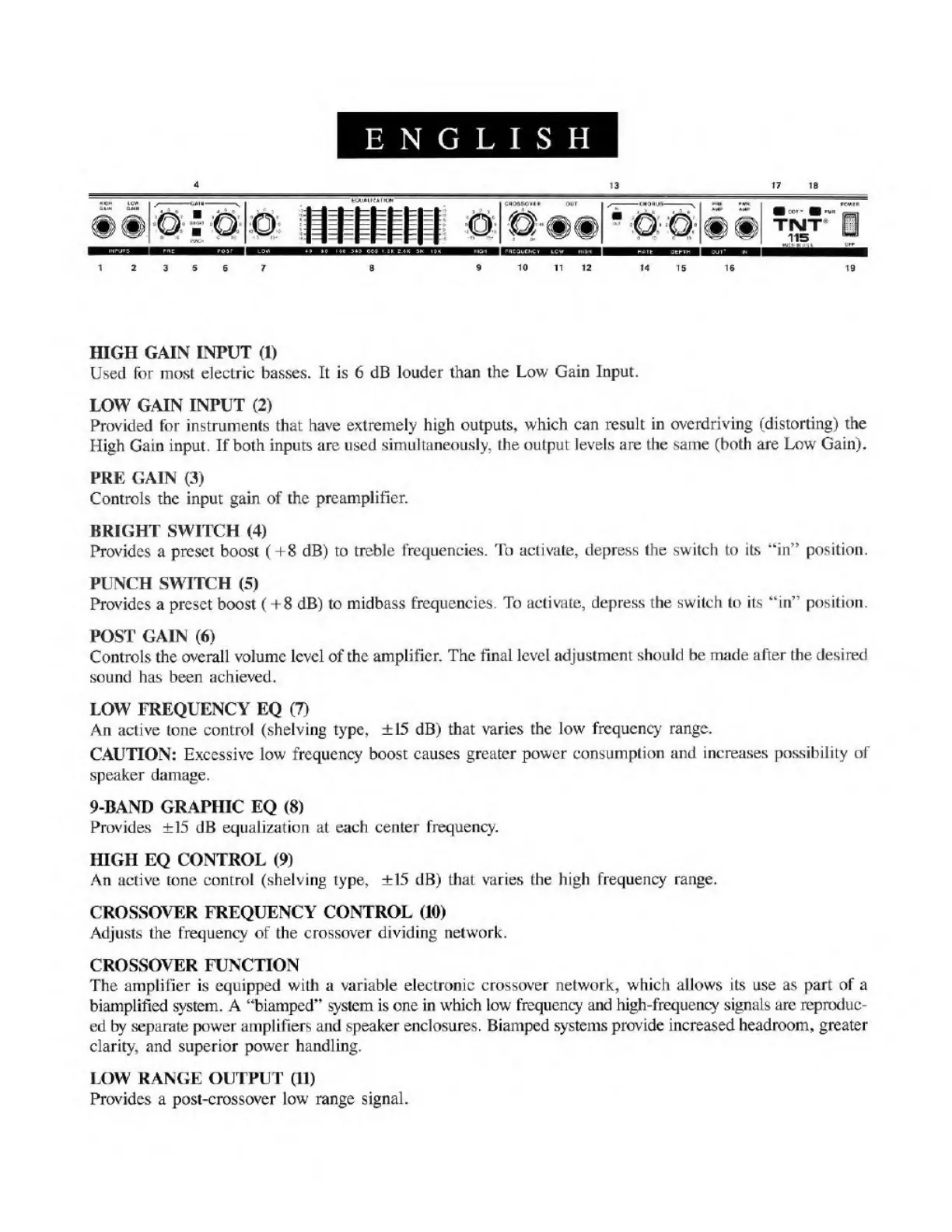

ENGLISH
4 13 17 18
1
10 11 12 14 15 16
19
HIGH GAIN INPUT (1)
Used for most electric basses. It is 6 dB louder than the Low Gain Input.
LOW GAIN INPUT (2)
Provided for instruments that have extremely high outputs, which can result in overdriving (distorting) the
High Gain input. If both inputs are used simultaneously, the output levels are the same (both are Low Gain).
PRE GAIN (3)
Controls the input gain of the preamplifier.
BRIGHT SWITCH (4)
Provides a preset boost (+8 dB) to treble frequencies. To activate, depress the switch to its “in” position.
PUNCH SWITCH (5)
Provides a preset boost (+8 dB) to midbass frequencies. To activate, depress the switch to its “in” position.
POST GAIN (6)
Controls the overall volume level of the amplifier. The final level adjustment should be made after the desired
sound has been achieved.
LOW FREQUENCY EQ (7)
An active tone control (shelving type, ±15 dB) that varies the low frequency range.
CAUTION: Excessive low' frequency boost causes greater power consumption and increases possibility of
speaker damage.
9-BAND GRAPHIC EQ (8)
Provides ±15 dB equalization at each center frequency.
HIGH EQ CONTROL (9)
An active tone control (shelving type, ±15 dB) that varies the high frequency range.
CROSSOVER FREQUENCY CONTROL (10)
Adjusts the frequency of the crossover dividing network.
CROSSOVER FUNCTION
The amplifier is equipped with a variable electronic crossover network, which allows its use as part of a
biamplified system. A “biamped” system is one in which low frequency' and high-frequency signals are reproduc¬
ed by separate power amplifiers and speaker enclosures. Biamped systems provide increased headroom, greater
clarity, and superior power handling.
LOW RANGE OUTPUT (11)
Provides a post-crossover low range signal.

Peavey TNT 115 Specifications

General

Brand	Peavey
Model	TNT 115
Category	Musical Instrument Amplifier
Language	English
