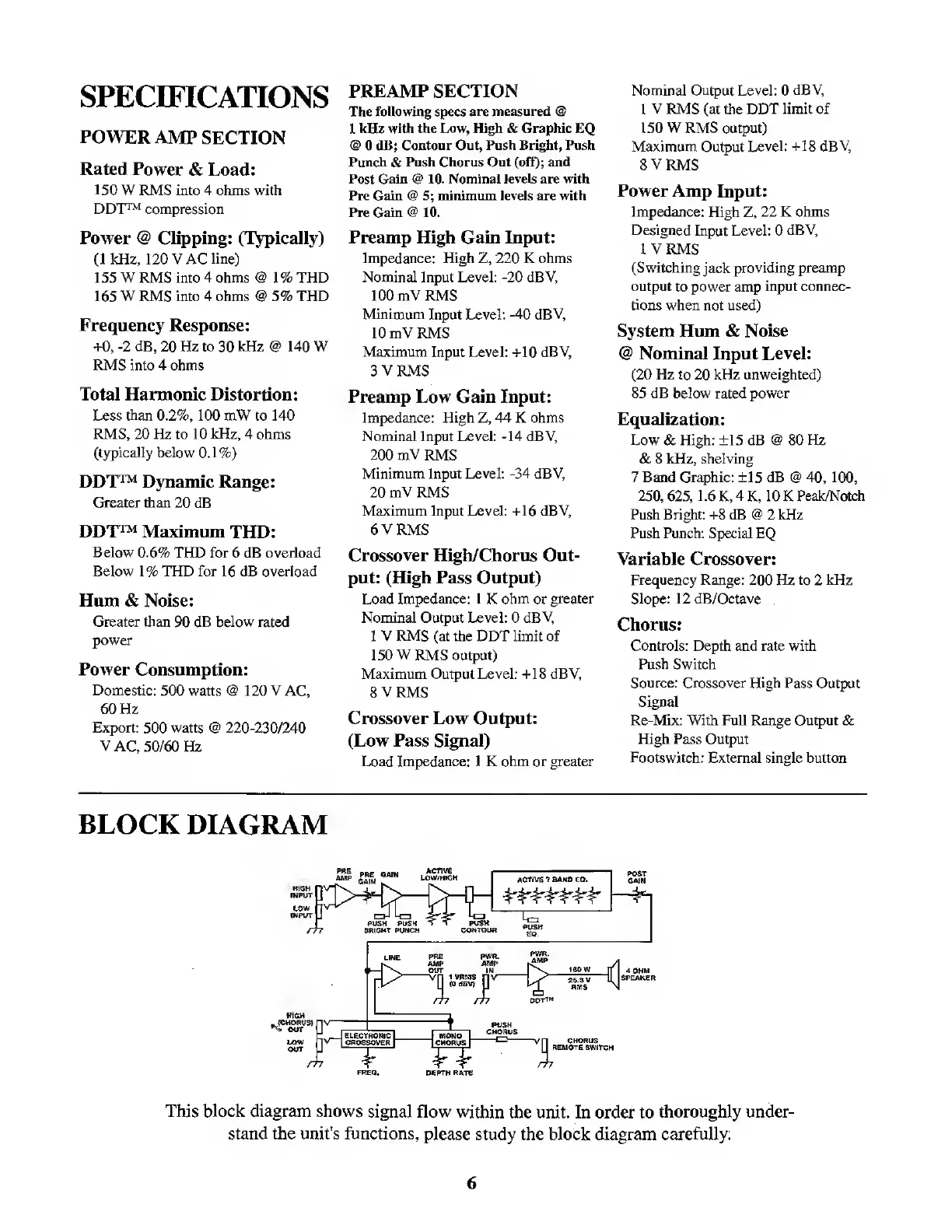

SPECIFICATIONS
POWER AMP SECTION
Rated Power & Load:
150 W RMS into 4 ohms with
DDT ™ compression
Power @ Clipping: (Topically)
(1 kHz, 120 VAC line)
155 W RMS into 4 ohms @ 1% THD
165 W RMS into 4 ohms @ 5% THD
Frequency Response:
+0, -2 dB, 20 Hz to 30 kHz @ 140 W
RMS into 4 ohms
Total Harmonic Distortion:
Less than 0.2%, 100 mW to 140
RMS, 20 Hz to 10 kHz, 4 ohms
(typically below 0.1 %)
DDT ™ Dynamic Range:
Greater than 20 dB
DDT ™ Maximum THD:
Below 0.6% THD for 6 dB overload
Below 1% THD for 16 dB overload
Hum & Noise:
Greater than 90 dB below rated
power
Power Consumption:
Domestic: 500 watts @ 120 V AC,
60 Hz
Export: 500 watts @ 220-230/240
VAC, 50/60 Hz
PREAMP SECTION
The following specs are measured @
1 kHz with the Low, High & Graphic EQ
@ 0 dB; Contour Out, Push Bright, Push
Punch & Push Chorus Out (off); and
Post Gain @ 10. Nominal levels are with
Pre Gain @ 5; minimum levels are with
Pre Gain @ 10.
Preamp High Gain Input:
Impedance: High Z, 220 K ohms
Nominal Input Level: -20 dBV,
100 mV RMS
Minimum Input Level: -40 dBV,
10 mV RMS
Maximum Input Level: +10 dBV,
3 V RMS
Preamp Low Gain Input:
Impedance: High Z, 44 K ohms
Nominal Input Level: -14 dBV,
200 mV RMS
Minimum Input Level: -34 dBV,
20 mV RMS
Maximum Input Level: +16 dBV,
6VRMS
Crossover High/Chorus Out¬
put: (High Pass Output)
Load Impedance: 1 K ohm or greater
Nominal Output Level: 0 dBV,
1 V RMS (at the DDT limit of
150 W RMS output)
Maximum Output Level: +18 dBV,
8 V RMS
Crossover Low Output:
(Low Pass Signal)
Load Impedance: 1 K ohm or greater
Nominal Output Level: 0 dBV,
1 V RMS (at the DDT limit of
150 W RMS output)
Maximum Output Level: +18 dBV,
8 V RMS
Power Amp Input:
Impedance: High Z, 22 K ohms
Designed Input Level: 0 dBV,
1 VRMS
(Switching jack providing preamp
output to power amp input connec¬
tions when not used)
System Hum & Noise
@ Nominal Input Level:
(20 Hz to 20 kHz unweighted)
85 dB below rated power
Equalization:
Low & High: ±15 dB @ 80 Hz
& 8 kHz, shelving
7 Band Graphic: ±15 dB @ 40, 100,
250, 625, 1.6 K, 4 K, 10 K Peak/Notch
Push Bright: +8 dB @ 2 kHz
Push Punch: Special EQ
Variable Crossover:
Frequency Range: 200 Hz to 2 kHz
Slope: 12 dB/Octave
Chorus:
Controls: Depth and rate with
Push Switch
Source: Crossover High Pass Output
Signal
Re-Mix: With Full Range Output &
High Pass Output
Foots witch: External single button
BLOCK DIAGRAM
This block diagram shows signal flow within the unit. In order to thoroughly under¬
stand the unit's functions, please study the block diagram carefully.
6
