Specifications subject to change without notice.
13
POWER AMPLIFIER SECTION:
Rated Power and Load:
Power specs measured with T-Dynamics @ 100%
65W RMS into 8 Ohms
Power @ Clipping: (Typically)
(5% THD, 1 kHz, 120V AC line)
65W RMS into 8 Ohms
Frequency Response:
+3, -0 dB 100 Hz to 20 kHz @ 45W RMS into
8 Ohms
Hum and Noise:
Greater than 88 dB below rated power
Power Consumption:
200W @ 60 Hz, 120V AC, Domestic
200W @ 50/60 Hz, 220-230/240V AC, Export
PREAMP SECTION:
The following specs are measured @ 1 kHz with the
controls preset as follows:
Channel Select, Clean
Clean Mode Switch, Modern
Low and High @ 10
Mid @ 0
Lead Pre and Post Gain @ 10
Lead Mode Switch, Vintage
Reverb @ 0
Nominal Levels are with Clean Volume @ 5
Minimum Levels are with Clean Volume @ 10
Preamp High Gain Input:
Impedance: High Z, 250 K Ohms
Nominal Input Level: -12 dBV, 250mV RMS
Minimum Input Level: -23 dBV, 71mV RMS
Maximum Input Level: +0 dBV, 1V RMS
Preamp Low Gain Input:
Impedance: High Z, 44 k Ohms
Nominal Input Level: -6 dBV, 500mV RMS
Minimum Input Level: -17dBV, 142mV RMS
Maximum Input Level: +6 dBV, 2V RMS
Effects Send:
Load Impedance: 1k Ohms or greater
Nominal Output Level:
Effects Level -9dBV, 355 mV RMS
Effects Return:
Impedance: High Z, 22k Ohms
Designed Input Level:
Effects Level -9dBV, 355 mV RMS
(Switching jack provides Effects Send to Effects
Return connection when not used.)
System Hum and Noise @ Nominal Input Level:
(20Hz to 20kHz unweighted)
Greater than 74dB below rated power
Equalization:
Special Low, Mid, and High passive type EQ
Modern/Vintage switch (Clean): Two distinct
EQ voicings
Vintage/Modern/High Gain switch (Lead):
Three different EQ and Gain voicings
External Footswitch Functions:
Select: Clean or Lead channel selection
Reverb: Reverb bypass
Dimensions (H x W x D):
18” x 21.5” x 10.5”
45.7cm x 54.6cm x 26.7cm
Weight:
34.1 lbs. (15.47kg)

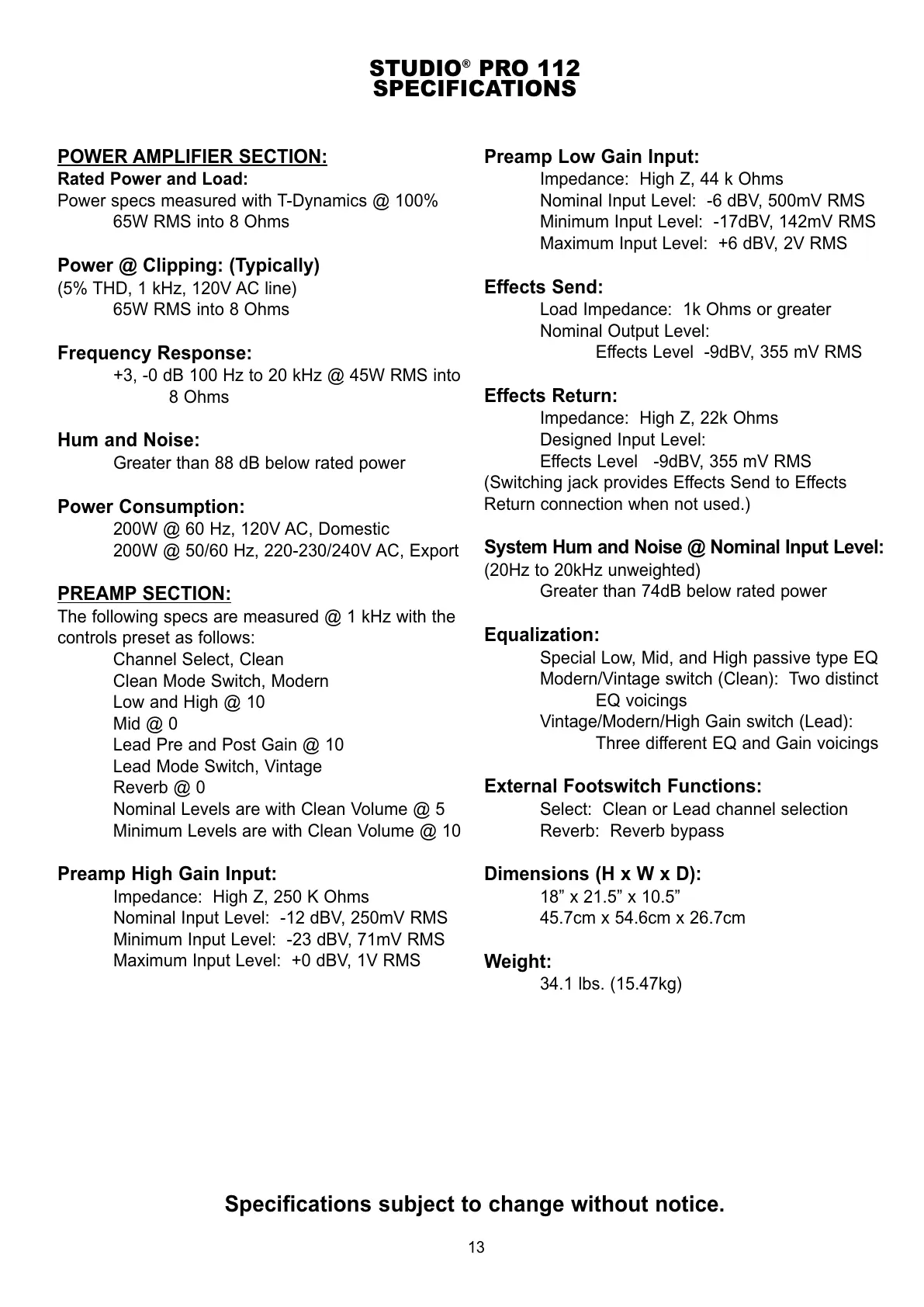

STUDIO
®
PRO 112
SPECIFICATIONS
