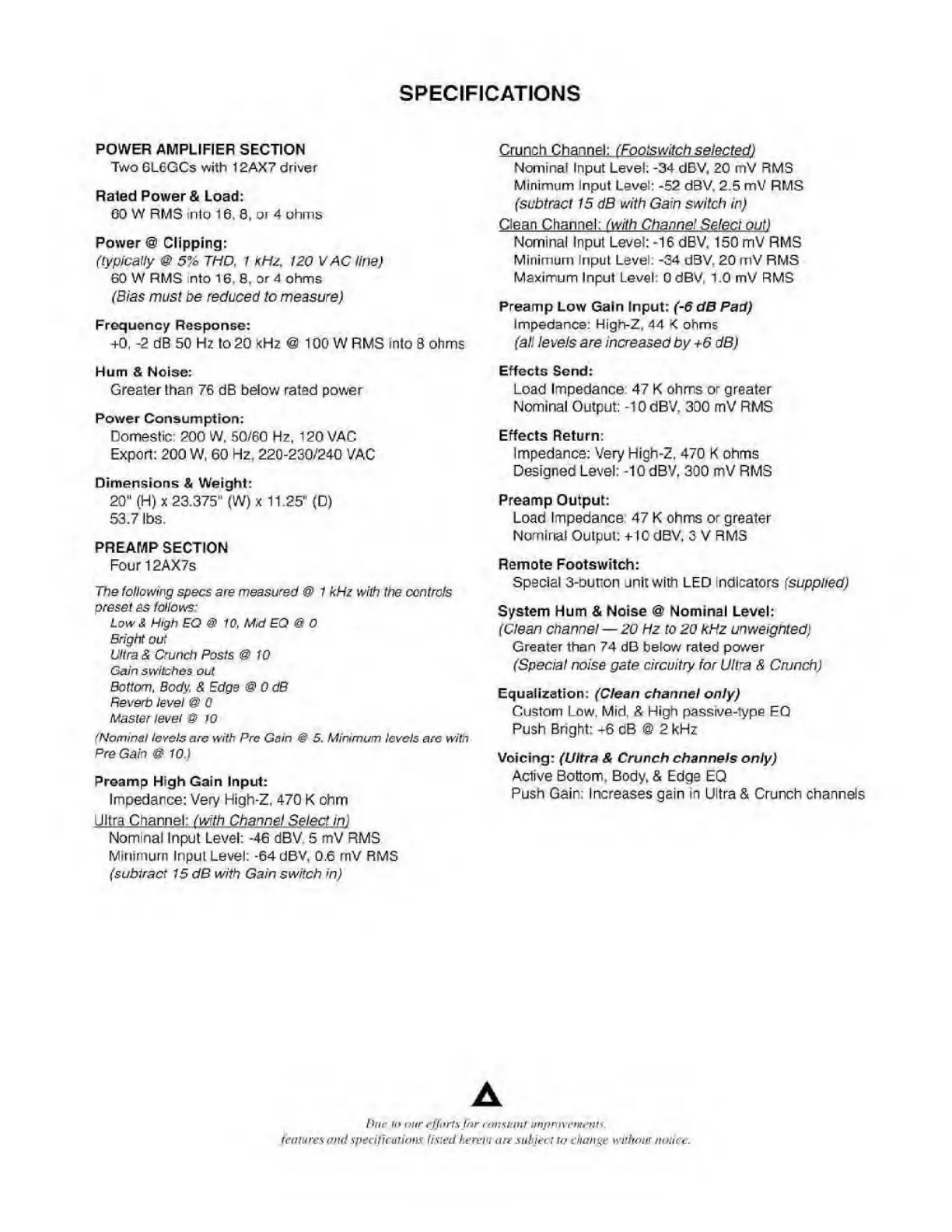

SPECIFICATIONS
POWER AMPLIFIER SECTION
Two eL6GCs with 12AX7 driver
Rated Power & Load:
60 W RMS into 16, 8, or 4 ohms
Power @ Clipping:
(typicafly ^ 5% THD, i kHz, 120 VAC tine)
60 W RMS irito 16, 8, or 4 ohms
(Bias must be reduced to measure}
Frequency Reeponse:
+0, -2 de 50 Hz to 20 kHz 100 W RMS into 8 ohms
Hum & Noise:
Greater than 76 dB below rated power
Power Consumption:
Domestic; 200 W. 50/60 Hz, 120 VAC
Export: 200 W. 60 Hz, 220-230/240 VAC
Dimensions & Weight:
20'' (H) X 23.375“ (W) x 11.25'' (D)
53.7 lbs.
PREAMP SECTION
Four12AX7s
Tbe following specs are measured ^ 1 kHz with (he controls
preset as follovi^:
Low & High EQ ® lO.MdEOeO
Bright out
Ultra & Crunch Posts # 10
Gain swishes out
Bottom. Bol^y^ & Edge >§ OdB
Reverb level @ Q
Mastenevei & w
(Nomine! levels ere with Pre Gain ^ S. Minimum levels are with
PreGah <§ 10.)
Preamp High Gain Input:
Impedance: Very High-Z, 470 K ohm
Ultra Channel: (with Channel Select m )
Nominal Input Level: -46 dBV, 5 mV RMS
Minimum Input Level; *64 dBV, 0.6 mV RMS
(subtract 15 dB with Gain switch in)
Crunch Channel: (Foolswilch selected)
Nominal Input Level: -34 dBV, 20 mV RMS
Minimum Input Level: -52 dBV, 2.5 mV RMS
(subtract 15 dB with Gain switch in}
Clean Channel: (with Channel Select out)
Nominal input Level: -16 dBV. 160 mV RMS
Minimum Input Level; -34 dBV, 20 mV RMS
Maximum Input Level: 0 dBV, 1.0 mV RMS
Preamp Low Gain Input: (~6c/B Pad)
Impedance: High-Z, 44 K ohms
(ali levels are increased by+6 dB}
Effects Send:
Load Impedance; 47 K ohms or greater
Nominal Output: -10 dBV. 300 mV RMS
Effects Return;
Impedance: Very HIgh-Z, 470 K ohms
Designed Level: -10 dBV, 300 mV RMS
Preamp Output:
Load Impedance: 47 K ohms or greater
Nominal Output: +10 dBV. 3 V RMS
Remote Footswitch:
Special 3-bunon unit with LED indicators (supplied)
System Hum & Noise @ Nominal Level:
(Clean channef — 20 Hz to 20 kHz unweighted)
Greater than 74 dB below rated power
(Special noise gate circuitry for Ultra & Crunch)
Equalization: (Ctean channel only)
Custom Low, Mid, & High passive-type EQ
Push Bright: +6 dB 2 kHz
Voicing: (Ultra & Crunch channels only)
Active Bottom, Body, & Edge EQ
Push Gain: increases gain in Ltllra & Crunch channels
Dtie Ui nur ejforfs f*}r lonsUtnr impi'ovcmenu,
teciuren <u}<t ^ptdficctiom lisied hfm') an suhiecno chan^ withoits nonce.
