XR-400B SPECIFICATIONS
CHANNELS:
4
CHANNEL INPUTS:
4 High 2 unbalanced: 4 Low Z balanced
MASTER INPUTS:
Graphic In; Auxiliary In
CHANNEL INPUT CHARACTERISTICS:
SENSITIVITY:
Master. Channel Gain (cd Vertical (12:00) setting; all EQ
Hat: 150 mV RMS (High Z): 28 mV RMS |LOW Z) 'or lull
rated output
INPUT IMPEDANCE:
220K ohms (High Z); 3K ohms (Low Z)
MAXIMUM DYNAMIC RANGE:
3 V RMS {'10 dSV) (High Z)
0.5 V RMS (-4 dBM) (Low Z)
MAXIMUM GAIN:
26 dB (High Z), 72 dB (Low Z) at Channel Gain lull CW
70dB (High Z) 86dB (Low Z) at Channel Gain and Main
Level full CW
INPUT IMPEDANCE:
22QK ohms (Jack A); 44K ohms (Jack B|
SIGNAL-TO-NOISE RATIO:
Main Level <@ 12:00: all EQ tlaU 20 Hz to 70 kHz
unweighted. 600 ohm termination (Low Z)
1 Channel Gam @ 12:00: 80 dB
All Channel Gains |ffi 12 00: 78 dB
CHANNEL EQUALIZATION:
< -15 dB @ 80 Hz & 8 kHz. Shelving Characteristic
MASTER GRAPHIC EQUALIZATION:
* -15 dB @ 100 Hz. 350 Hz. 1 kHz. 3 kH2 and 8 kHz.
Peak'Notch Characteristic; Average "Q~ of 1.5
TOTAL SYSTEM FREQUENCY RESPONSE:
* -2 dB. $3 Hz to 25 kHz. all EQ flat
LINE OUTPUTS:
Mam. Monitor, and ElteclS
MAXIMUM OUTPUT:
8 V RMS Into 10K ohms (*18d8V) or 4 V RMS into 600
ohms <->td dBM)
POWER AMP SPECIFICATIONS:
RATED POWER:
100 W RMS into 4 ohms load
POWER AT CLIPPING:
1% THD (& 1 kHz 120 VAC l> ne; typically 80 W RMS into 8
ohms; 120 W RMS into 4 ohms 2 ohm load not
recommended
FREQUENCY RESPONSE:
*0, -l dB. 30 Hz to 30 kHz. 103 W RMS into 4 ohms
TOTAL HARMONIC DISTORTION:
LOSS than Q2**L ICC mVJio I00WRMS. 50Hr to 10kHz. 4
ohms; typically below 0 . 1 %
INTERMODULATION DISTORTION:
Less than 0 2%. lOOmWto 100 W RMS. 60 Hz to 5 kHz. 4
ohms; typically below 01 %

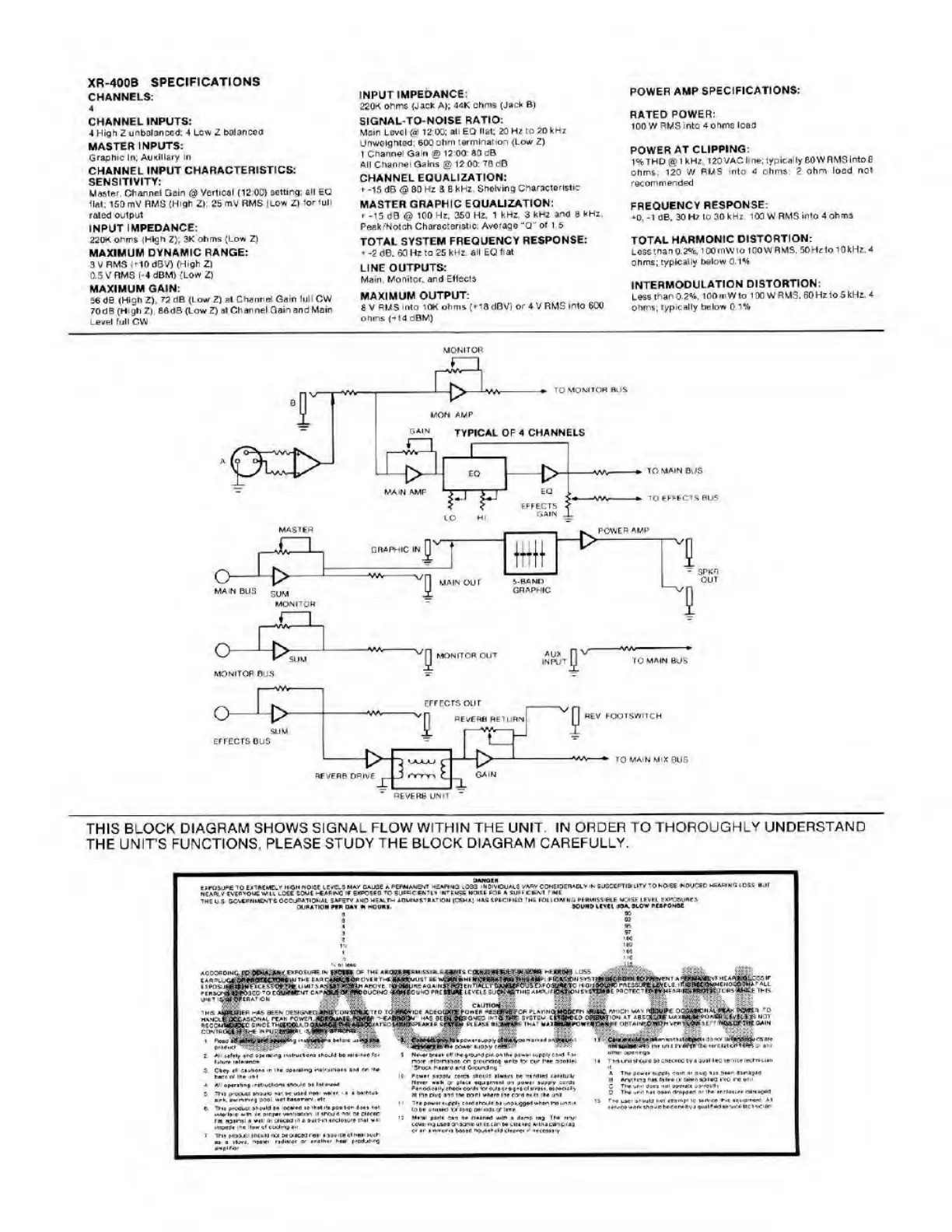

THIS BLOCK DIAGRAM SHOWS SIGNAL FLOW WITHIN THE UNIT. IN ORDER TO THOROUGHLY UNDERSTAND
THE UNIT’S FUNCTIONS. PLEASE STUDY THE BLOCK DIAGRAM CAREFULLY.
