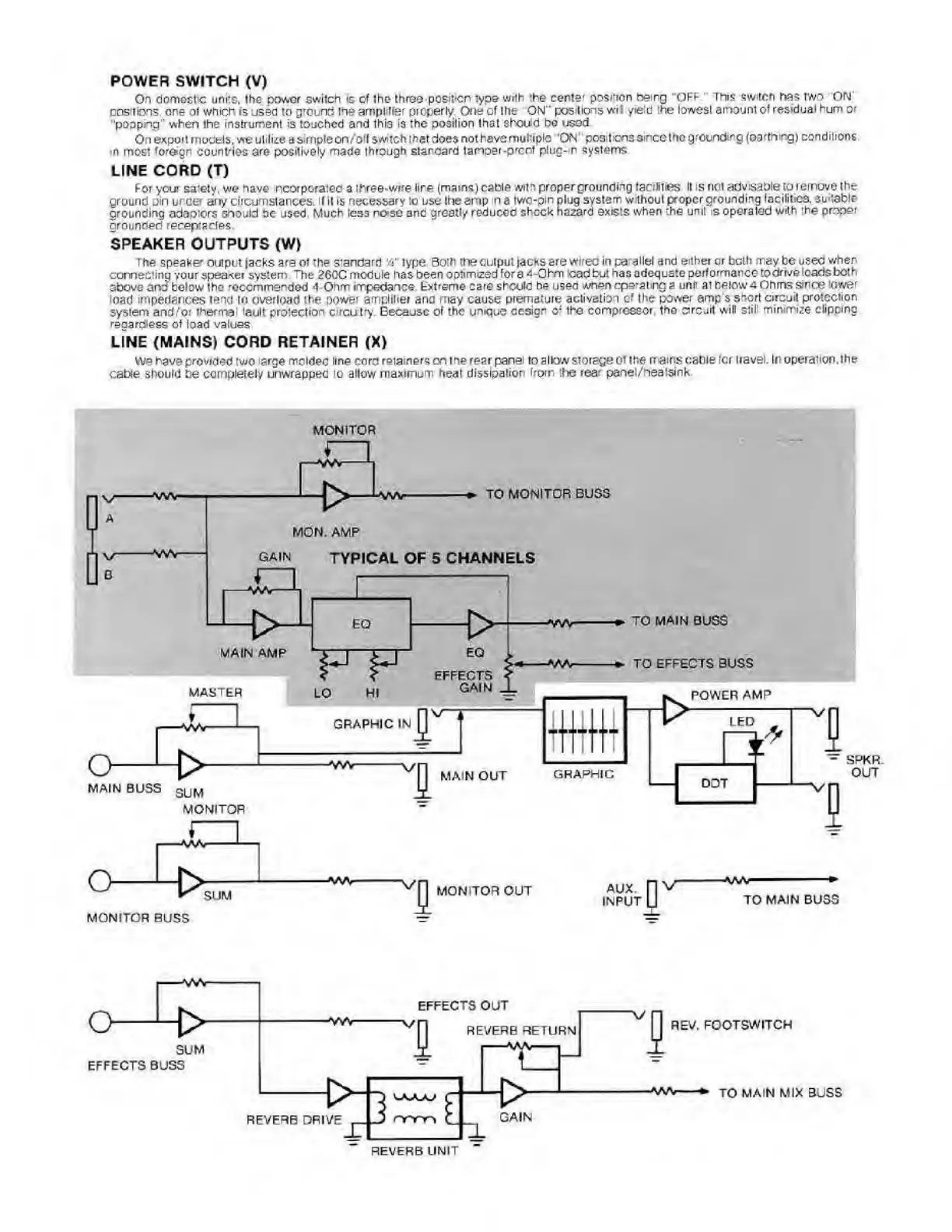

POWER
SWITCH
(V)
On
domestic
units,
the
pcMer
switch
is
of
the
three
position
type
with
’.he
cente'
position
being
“OFF
"
This
switch
has
two
ON'
positions,
one
ot
which
is
used
to
ground
the
amplifier
properly
One
cf
the
ON”
positions
wi
i
yield
the
lowest
amount
of
residual
hum
or
''popping"
when
the
instrument
is
touched
and
this
is
the
position
that
should
be
used
On
export
models,
we
utilize
a
simple
on/ot'f
switch
that
does
not
have
multiple
'ON'
positcn3
since
the
grounding
(earthing)
condilions
m
most
foreign
countries
are
positively
made
through
staroard
tanper-prenf
plug-m
systems
LINE
CORD
(T)
For
your
sa-Gtv.
we
have
ncorporatec
a
three-wire
lire
(mams)
cable
with
proper
grounding
facilities
It
is
not
advisable
to
remove
the
Qround
pin
under
any
circumstances.
1
it
is
necessary
lo
use
the
amp
n
a
tv/o-pm
plug
system
wihout
proper
grounding
facilities,
suitable
grounding
adaptors
should
be
used.
Much
less
nose
anc
greatly
reduced
shock
hazard
exists
when
-he
unit
is
operated
with
the
proper
grounded
receptacles
SPEAKER
OUTPUTS
(W)
The
speaker
output
jacks
are
ot
the
s'andard
'/•'
type
Both
the
output
jacks
are
wirec
in
parallel
and
either
or
belli
may
be
used
when
connecting
your
speaker
system.
The
260C
module
has
been
optimized
fora
4-Ohm
lead
but
has
adequate
performance
to
drivo
loads
both,
above
an3
below
the
-ecommendod
>1-Ohm
impectence.
bxtreme
care
should
be
used
when
operating
s
unit
ai
below
4
Ohms
since
lower
load
impedances
lend
to
overload
the
power
amplilier
and
may
cause
premature
activation
of
the
power
amp's
short
circuit
protection
system
and/or
thermal
fault
protection
circuitry.
Because
of
the
unique
design
of
the
compressor,
the
circuit
will
still
minimize
clipping
regardless
of
load
values
LINE
(MAINS)
CORD
RETAINER
(X)
We
have
provided
two
srge
molded
line
cord
retainers
on
the
rear
panel
to
allow
storage
Of
the
mams
cable
for
navel.
In
operation,
the
cable
should
be
completely
unwrapped
to
allow
maximum
heat
dissipation
from
the
rear
pane:/heatsink.
MONITOR
REVERB
UNIT
