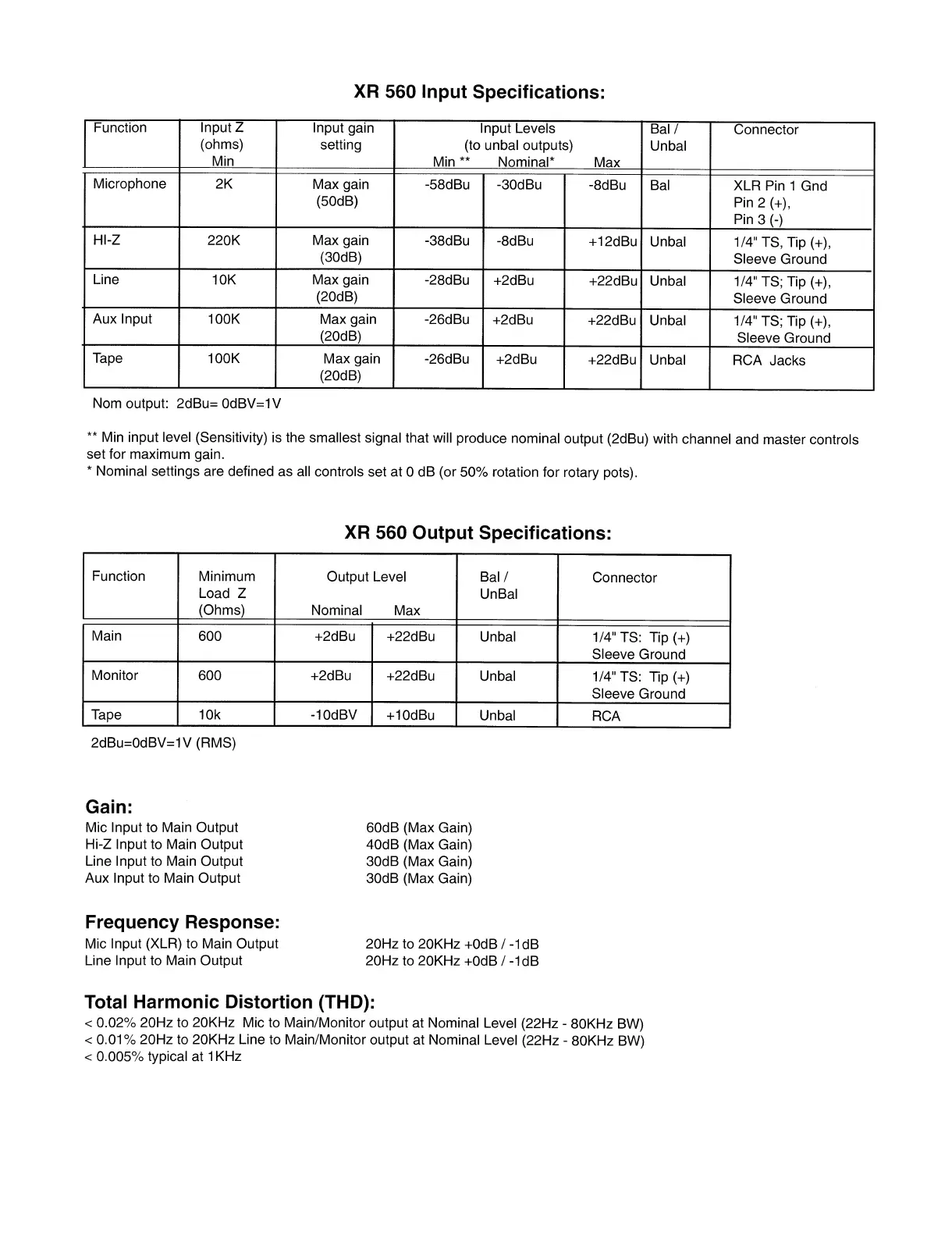

Peavey XR 560 - Technical Specifications; XR 560 Input Specifications; XR 560 Output Specifications

XR 560 Input Specifications:
Function
Input Z
(ohms)
Min
Input gain
setting
Input Levels
(to unbal outputs)
Min ** Nominal* Max
Bal/
Unbal
Connector
Microphone 2K
Max gain
(50dB)
-58dBu -30dBu
-8dBu
Bal
XLR Pin 1 Gnd
Pin 2 (+),
Pin 3 (-)
HI-Z
220K
Max gain
(30dB)
-38dBu
-8dBu
+12dBu
Unbal
1/4" TS,Tip (+),
Sleeve Ground
Line 10K
Max gain
(20dB)
-28dBu
+2dBu
+22dBu
Unbal
1/4" TS; Tip (+),
Sleeve Ground
Aux Input
100K
Max gain
(20dB)
-26dBu
-i-2dBu
+22dBu
Unbal
1/4" TS; Tip (+),
Sleeve Ground
Tape 100K
Max gain
(20dB)
-26dBu
-i-2dBu
+22dBu
Unbal
RCA Jacks
Norn output: 2dBu= 0dBV=1 V
** Min input level (Sensitivity) is the smallest signal that will produce nominal output (2dBu) with channel and master controls
set for maximum gain.
* Nominal settings are defined as all controls set at 0 dB (or 50% rotation for rotary pots).
XR 560 Output Specifications:
Function
Minimum
Load Z
(Ohms)
Output Level
Nominal Max
Bal/
UnBal
Connector
Main
600
+2dBu -F22dBu
Unbal
1/4" TS: Tip(+)
Sleeve Ground
Monitor
600
+2dBu
+22dBu
Unbal
1/4" TS: Tip(-H)
Sleeve Ground
Tape
10k
-lOdBV
+10dBu
Unbal
RCA
2dBu=0dBV=1V (RMS)
Gain:
Mic Input to Main Output
Hi-Z Input to Main Output
Line Input to Main Output
Aux Input to Main Output
Frequency Response:
Mic Input (XLR) to Main Output
Line Input to Main Output
60dB (Max Gain)
40dB (Max Gain)
30dB (Max Gain)
30dB (Max Gain)
20Hz to 20KHZ +0dB/-1dB
20Hz to 20KHZ +0dB/-1dB
Total Harmonic Distortion (THD):
< 0.02% 20Hz to 20KHz Mic to Main/Monitor output at Nominal Level (22Hz - 80KHz BW)
< 0.01% 20Hz to 20KHz Line to Main/Monitor output at Nominal Level (22Hz - 80KHz BW)
< 0.005% typical at 1 KHz
