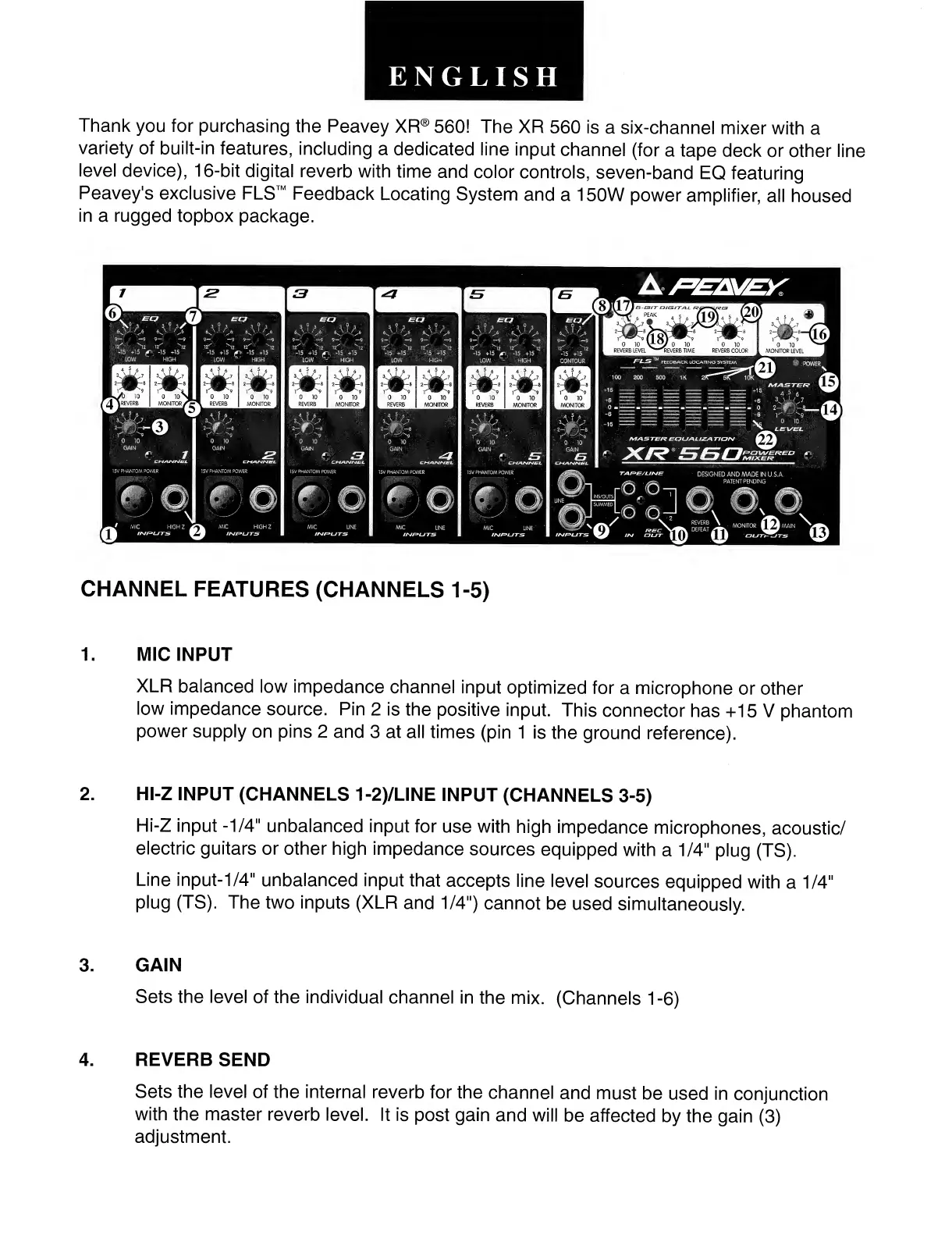

ENGLISH
Thank
you
for
purchasing
the
Peavey
XR®
560!
The
XR
560
is
a
six-channel
mixer
with
a
variety
of
built-in
features,
including
a
dedicated
line
input
channel
(for
a
tape
deck
or
other
line
level
device),
16-bit
digital
reverb
with
time
and
color
controls,
seven-band
EQ
featuring
Peavey's
exclusive
FLS
Feedback
Locating
System
and
a
150W
power
amplifier,
all
housed
in
a
rugged
topbox
package.
CHANNEL
FEATURES
(CHANNELS
1-5)
1.
MIC
INPUT
XLR
balanced
low
impedance
channel
input
optimized
for
a
microphone
or
other
low
impedance
source.
Pin
2
is
the
positive
input.
This
connector
has
+15
V
phantom
power
supply
on
pins
2
and
3
at
all
times
(pin
1
is
the
ground
reference).
2.
Hl-Z
INPUT
(CHANNELS
1
-2)/LINE
INPUT
(CHANNELS
3-5)
Fli-Z
input
-1/4"
unbalanced
input
for
use
with
high
impedance
microphones,
acoustic/
electric
guitars
or
other
high
impedance
sources
equipped
with
a
1/4"
plug
(TS).
Line
input-1/4"
unbalanced
input
that
accepts
line
level
sources
equipped
with
a
1/4"
plug
(TS).
The
two
inputs
(XLR
and
1/4")
cannot
be
used
simultaneously.
3.
GAIN
Sets
the
level
of
the
individual
channel
in
the
mix.
(Channels
1-6)
4.
REVERB
SEND
Sets
the
level
of
the
internal
reverb
for
the
channel
and
must
be
used
in
conjunction
with
the
master
reverb
level.
It
is
post
gain
and
will
be
affected
by
the
gain
(3)
adjustment.
