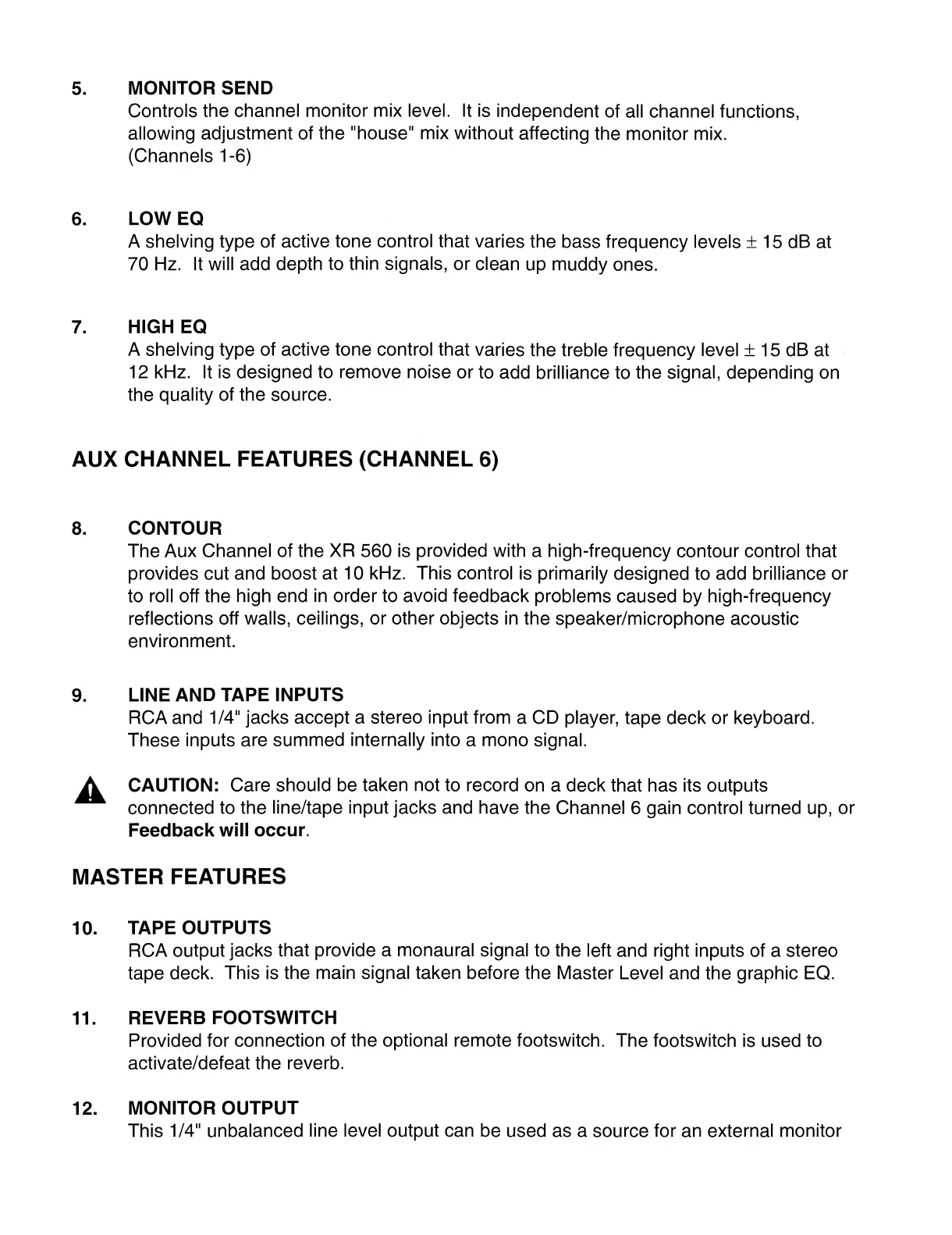

5.
MONITOR SEND
Controls the channel monitor mix level. It is independent of all channel functions,
allowing adjustment of the "house" mix without affecting the monitor mix.
(Channels 1-6)
6. LOW EQ
A shelving type of active tone control that varies the bass frequency levels ± 15 dB at
70 Hz. It will add depth to thin signals, or clean up muddy ones.
7. HIGH EQ
A shelving type of active tone control that varies the treble frequency level ± 15 dB at
12 kHz. It is designed to remove noise or to add brilliance to the signal, depending on
the quality of the source.
AUX CHANNEL FEATURES (CHANNEL 6)
8. C O N T OUR
The Aux Channel of the XR 560 is provided with a high-frequency contour control that
provides cut and boost at 10 kHz. This control is primarily designed to add brilliance or
to roll off the high end in order to avoid feedback problems caused by high-frequency
reflections off walls, ceilings, or other objects in the speaker/microphone acoustic
environment.
9. L I N E AND TAPE INPUTS
RCA and 1/4" jacks accept a stereo input from a CD player, tape deck or keyboard.
These inputs are summed internally into a mono signal.
CAUTION: Care should be taken not to record on a deck that has its outputs
connected to the line/tape input jacks and have the Channel 6 gain control turned up, or
Feedback will occur.
MASTER FEATURES
10. TAPE OUTPUTS
RCA output jacks that provide a monaural signal to the left and right inputs of a stereo
tape deck. This is the main signal taken before the Master Level and the graphic EQ.
11. REVERB FOOTSWITCH
Provided for connection of the optional remote footswitch. The footswitch is used to
activate/defeat the reverb.
12. M O N I T OR OUTPUT
This 1/4" unbalanced line level output can be used as a source for an external monitor
