Peavey XR 560 User Manual

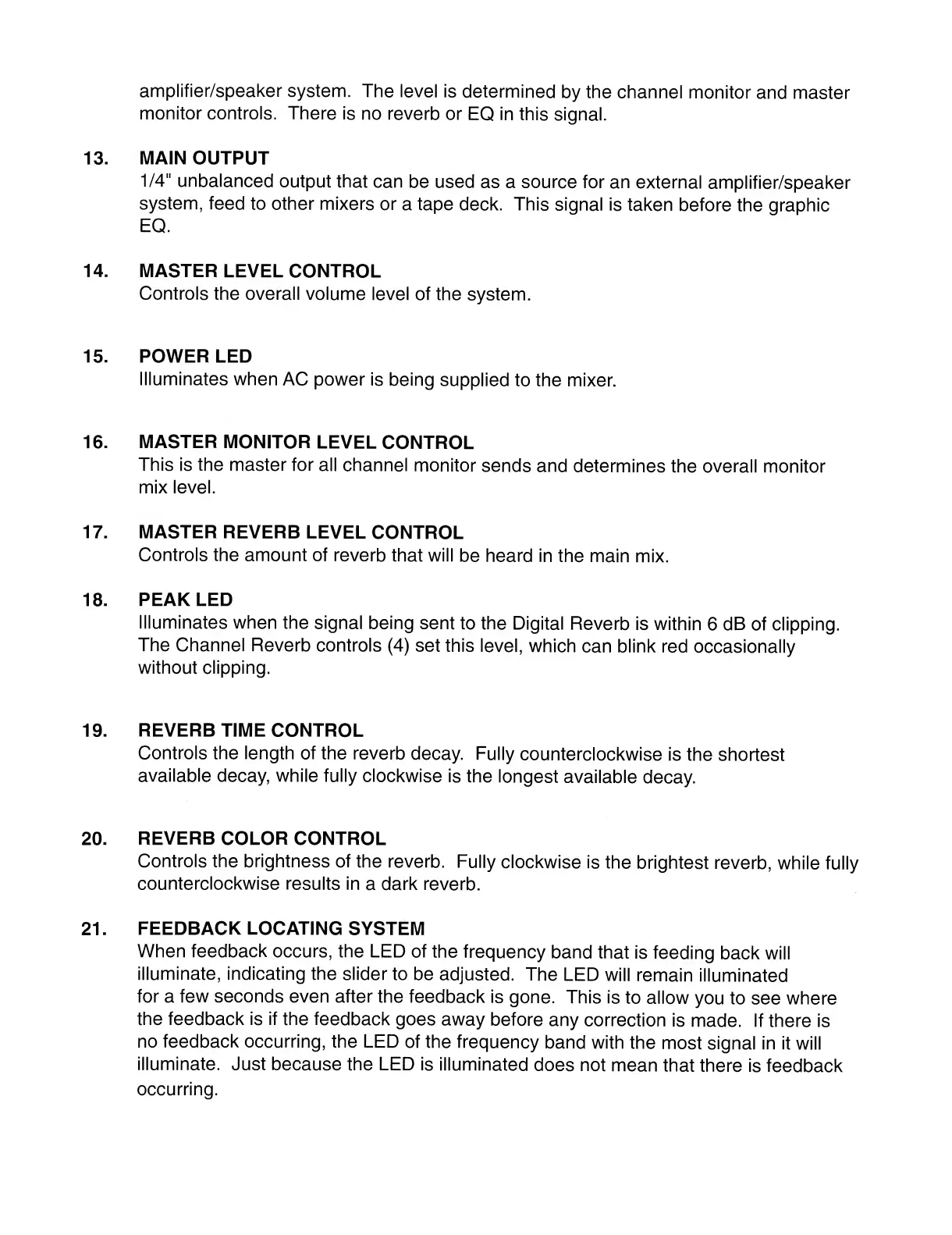

amplifier/speaker system. The level is determined by the channel monitor and master
monitor controls. There is no reverb or EQ in this signal.
13. MAIN OUTPUT
1/4" unbalanced output that can be used as a source for an external amplifier/speaker
system, feed to other mixers or a tape deck. This signal is taken before the graphic
EQ.
14. MASTER LEVEL CONTROL
Controls the overall volume level of the system.
15. POWER LED
Illuminates when AC power is being supplied to the mixer.
16. MASTER MONITOR LEVEL CONTROL
This is the master for all channel monitor sends and determines the overall monitor
mix level.
17. MASTER REVERB LEVEL CONTROL
Controls the amount of reverb that will be heard in the main mix.
18. PEAK LED
Illuminates when the signal being sent to the Digital Reverb is within 6 dB of clipping.
The Channel Reverb controls (4) set this level, which can blink red occasionally
without clipping.
19. REVERB TIME CONTROL
Controls the length of the reverb decay. Fully counterclockwise is the shortest
available decay, while fully clockwise is the longest available decay.
20. REVERB COLOR CONTROL
Controls the brightness of the reverb. Fully clockwise is the brightest reverb, while fully
counterclockwise results in a dark reverb.
21. FEEDBACK LOCATING SYSTEM
When feedback occurs, the LED of the frequency band that is feeding back will
illuminate, indicating the slider to be adjusted. The LED will remain illuminated
for a few seconds even after the feedback is gone. This is to allow you to see where
the feedback is if the feedback goes away before any correction is made. If there is
no feedback occurring, the LED of the frequency band with the most signal in it will
illuminate. Just because the LED is illuminated does not mean that there is feedback
occurring.
