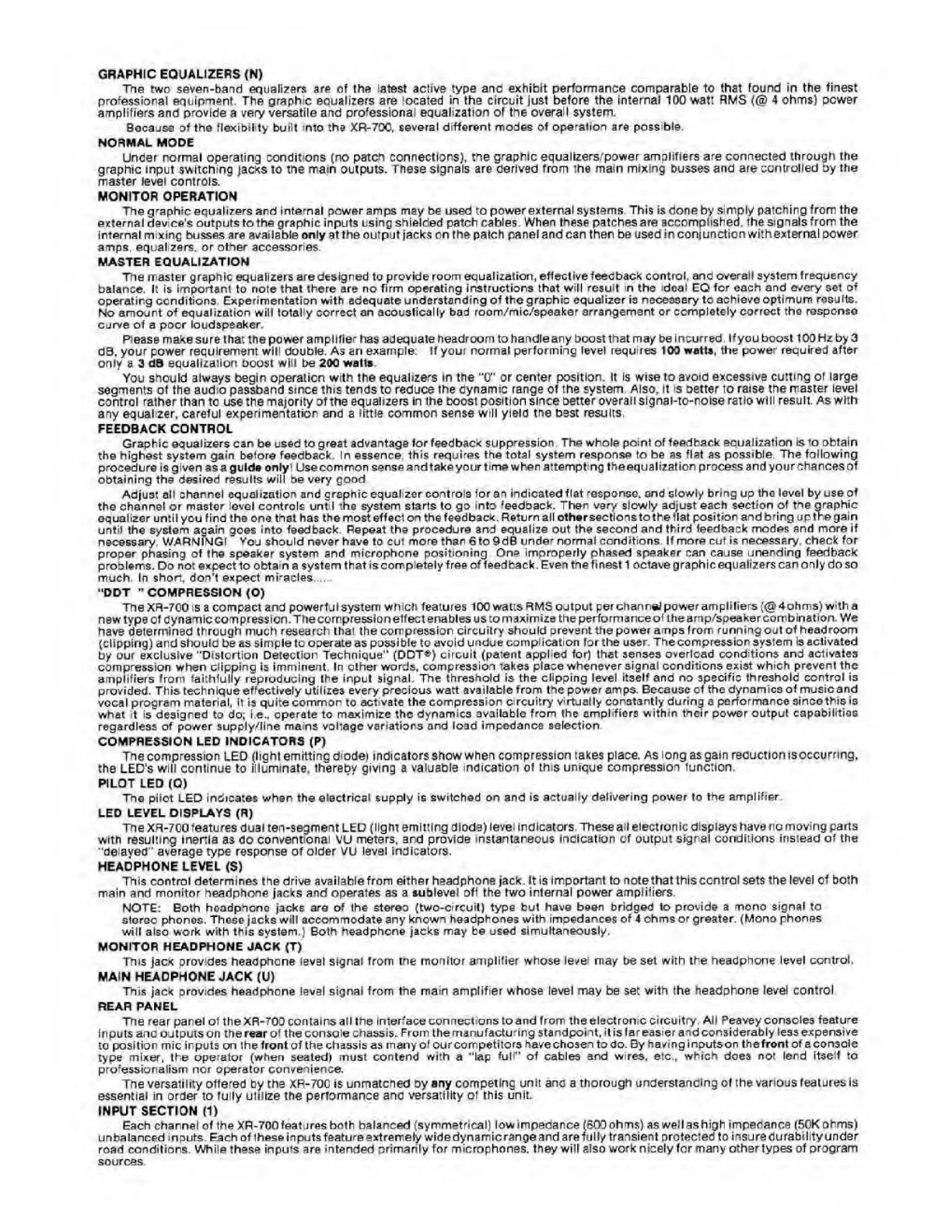

Page #4 background imageLoading...
Page #4 background image
GRAPHIC
EQUALIZERS
(N)
The
two
seven-band
equalizers
are
of
the
latest
active
type
and
exhibit
performance
comparable
to
that
found
in
the
finest
professional
equipment.
The
graphic
equalizers
are
ocated
in
the
circuit
just
before
the
internal
100
watt
RMS
(@
4
ohms)
power
amplifiers
and
provide
a
very
versatile
and
professional
equalization
of
the
overall
system.
Because
of
the
flexibility
built
into
the
XR-700,
several
different
modes
of
operation
are
possible.
NORMAL
MODE
Under
normal
operating
conditions
(no
paten
connections),
the
graphic
equallzers'power
amplifiers
are
connected
through
the
graphic
input
switching
jacks
to
the
main
outputs.
These
signals
are
derived
from
the
main
mixing
busses
and
are
controlled
Dy
the
master
level
controls.
MONITOR
OPERATION
The
graphic
equalizers
and
internal
power
amps
may
be
used
to
power
external
systems
This
is
done
by
simply
patching
from
the
external
device’s
outputs
to
the
graphic
inputs
using
shielded
patch
cables
When
these
patches
are
accomplished,
the
signals
from
the
internal
mixing
busses
are
available
only
at
the
output
jacks
on
the
patch
panel
and
can
then
be
used
in
conjunction
with
external
power
amps,
equalizers,
or
other
accessories
MASTER
EQUALIZATION
The
master
graphic
equalizers
are
designed
to
provide
room
equalization,
effective
feedback
control,
and
overall
system
frequency
balance.
It
is
important
to
note
that
there
are
no
firm
operating
instructions
that
will
result
in
the
deal
EO
for
each
and
every
set
of
operating
conditions.
Experimentation
with
adequate
understanding
of
the
graphic
equalizer
is
necessary
to
achieve
optimum
results.
No
amount
of
equalization
will
totally
correct
an
acoustically
bad
room/mic/speaker
arrangement
or
completely
correct
the
response
curve
of
a
poor
loudspeaker.
Please
make
sure
that
the
power
amplifier
has
adequate
headroom
to
handleany
boost
that
may
be
incurred.
Ifyou
boost
100
Hz
by
3
dB.
your
power
requirement
will
double.
As
an
example:
If
your
normal
performing
level
requires
100
watts,
the
power
required
after
only
a
3
dB
equalization
boost
will
be
200
watts.
You
should
always
begin
operation
with
the
equalizers
in
the
”0"
or
center
position.
It
Is
wise
to
avoid
excessive
cutting
of
large
segments
of
the
audio
passband
since
this
tends
to
reduce
the
dynamic
range
of
the
system
Also,
it
is
better
to
raise
the
master
level
control
rather
than
to
use
the
majority
of
the
equalizers
in
the
boost
position
since
better
overall
signai-to-roise
ratio
will
result.
As
with
any
equalizer,
caretul
experimentation
and
a
little
common
sense
will
yield
the
best
results.
FEEDBACK
CONTROL
Graphic
equalizers
can
be
used
to
great
advantage
tor
feedback
suppression
The
whole
point
of
feedback
equalization
is
to
obtain
the
highest
system
gain
before
feedback.
In
essence,
this
requires
the
total
system
response
to
be
as
flat
as
possible
The
following
procedure
is
given
as
a
guide
only'
Use
common
sense
andtake
your
time
when
attempting
theequalization
process
and
your
chances
of
obtaining
the
desired
results
will
be
very
good
Adjust
all
channel
equalization
and
graphic
equalizer
controls
for
an
indicated
flat
response,
and
slowly
bring
up
the
level
by
use
of
the
channel
or
master
lovol
controls
until
ihe
system
starts
to
go
into
feedback.
Then
very
slowly
adjust
each
section
ot
the
graphic
equalizer
until
you
find
the
one
that
has
the
most
effect
on
the
feedback.
Return
all
other
sections
to
the
flat
position
and
bring
up
the
gain
until
the
system
again
goes
into
feedback
Repeat
the
procedure
and
equalize
out
the
second
and
third
feedback
modes
and
more
if
necessary
WARNING!
You
should
never
have
to
cut
more
than
6
to
9dB
under
normal
conditions.
If
more
cut
is
necessary,
check
for
proper
phasing
of
the
speaker
system
and
microphone
positioning
One
improperly
phased
speaker
can
cause
unending
feedback
problems.
Do
not
expect
to
obtain
a
system
that
is
completely
free
of
feedback.
Even
the
finest
1
octave
graphic
equalizers
can
only
do
so
much.
In
short,
don’t
expect
miracles
..
“DDT
"
COMPRESSION
(O)
The
XR-700
is
acompact
and
powerful
system
which
features
100
watts
RMS
output
per
channel
power
amplifiers
(@4ohms)
with
a
n8w
type
of
dynamic
compression.
The
compression
effect
enables
us
to
maximize
theperformanceof
the
amp/speaker
combination.
We
have
determined
through
much
research
that
the
compression
circuitry
should
prevent
the
power
amps
from
running
out
of
headroom
(clipping)
and
should
be
as
simple
to
operate
as
possible
to
avoid
undue
complication
for
the
user.
The
compression
system
is
activated
by
our
exclusive
“Distortion
Detection
Technique”
(DDT»)
circuit
(patent
applied
for)
that
senses
overload
conditions
and
activates
compression
when
clipping
is
imminent.
In
other
words,
compression
takes
place
whenever
signal
conditions
exist
which
prevent
the
amplifiers
from
faithfully
reproducing
the
input
signal.
The
threshold
is
the
clipping
level
itself
and
no
specific
threshold
control
is
provided.
This
technique
effectively
utilizes
every
precious
watt
available
from
the
power
amps.
Because
of
the
dynamics
of
music
and
vocal
program
material,
it
is
quite
common
to
activate
the
compression
circuitry
virtually
constantly
during
a
performance
sincothis
is
what
it
is
designed
to
do;
i
e..
operate
to
maximize
the
dynamics
available
from
the
amplifiers
within
their
power
output
capabilities
regardless
of
power
supply/line
mains
voltage
variations
and
load
impedance
selection.
COMPRESSION
LED
INDICATORS
(P)
The
compression
LED
(light
emitting
diode)
indicators
show
when
compression
takes
place.
As
long
as
gain
reduction
isoccurrmg,
the
LED’s
will
continue
to
illuminate,
thereby
giving
a
valuable
indication
of
this
unique
compression
function.
PILOT
LED
(O)
The
pilot
LED
indicates
when
the
electrical
supply
is
switched
on
and
is
actually
delivering
power
to
the
amplifier.
LED
LEVEL
DISPLAYS
(R)
The
XR-700
features
dual
ten-segment
LED
(light
emitting
diode)
level
Indicators.
These
all
electronic
displays
have
no
moving
parts
with
resulting
inertia
as
do
conventional
VU
meters,
and
provide
instantaneous
indication
of
output
signal
conditions
instead
of
the
“delayed''
average
type
response
of
older
VU
level
indicators.
HEADPHONE
LEVEL
(S)
This
control
determines
the
drive
available
from
either
headphone
jack.
It
is
important
to
note
that
this
control
sets
the
level
of
both
main
and
monitor
headphone
jacks
and
operates
as
a
sublevel
off
the
two
internal
power
amplifiers.
NOTE:
Both
headphone
jacks
are
of
the
stereo
(two-circuit)
type
but
have
been
bridged
to
provide
a
mono
signal
to
stereo
phones.
Those
jacks
will
accommodate
any
known
headphones
with
impedances
of
4
ohms
or
greater.
(Mono
phones
will
also
work
with
this
system.)
Both
headphone
jacks
may
be
used
simultaneously.
MONITOR
HEADPHONE
JACK
(T)
This
jack
provides
headphone
level
signal
from
tne
monitor
amplifier
whose
level
may
be
set
with
the
headphone
level
control.
MAIN
HEADPHONE
JACK
(U)
This
jack
provides
headphone
level
signal
from
the
main
amplifier
whose
level
may
be
se;
with
the
headphone
level
control
REAR
PANEL
The
rear
panel
of
the
XR-700
contains
all
the
interface
connections
toand
from
the
electronic
circuitry.
All
Peavey
consoles
feature
inputs
and
outputs
on
the
rear
of
the
console
chassis.
From
the
manufacturing
standpoint,
*t
is
far
easier
and
considerably
less
expensive
to
position
mic
inputs
on
the
front
of
the
chassis
as
many
of
our
competitors
havechosen
to
do.
By
having
inputson
the
front
of
a
console
type
mixer,
the
operator
(when
seated)
must
contend
with
a
"lap
full”
of
cables
and
wires,
etc.,
which
does
not
lend
itself
to
professionalism
nor
operator
convenience.
Tne
versatility
offered
by
the
XR-700
is
unmatched
Dy
any
competing
unit
ana
a
thorough
understanding
of
the
various
features
is
essential
in
order
to
fully
utilize
the
performance
and
versatility
of
this
unit.
INPUT
SECTION
(1)
Each
channel
of
the
XR-700
features
both
balanced
(symmetrical)
low
impedance
(600
ohms)
as
well
as
high
impedance
(5CK
ohms)
unbalanced
inputs.
Each
of
these
inputs
feature
extremely
wide
dynamic
range
and
are
fully
transient
protected
to
insure
durability
under
road
conditions.
While
these
inputs
are
intended
primarily
for
microphones,
they
will
also
work
nicely
for
many
other
types
of
program
sources

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Peavey XR-700 and is the answer not in the manual?

Peavey XR-700 Specifications

General IconGeneral
BrandPeavey
ModelXR-700
CategoryAmplifier
LanguageEnglish

Related product manuals
