peerless-AV ESF655P - Page 5

5
2014-09-24 #:203-9450-2 (2017-04-04)
E (4)
A
1a-3
1a-4

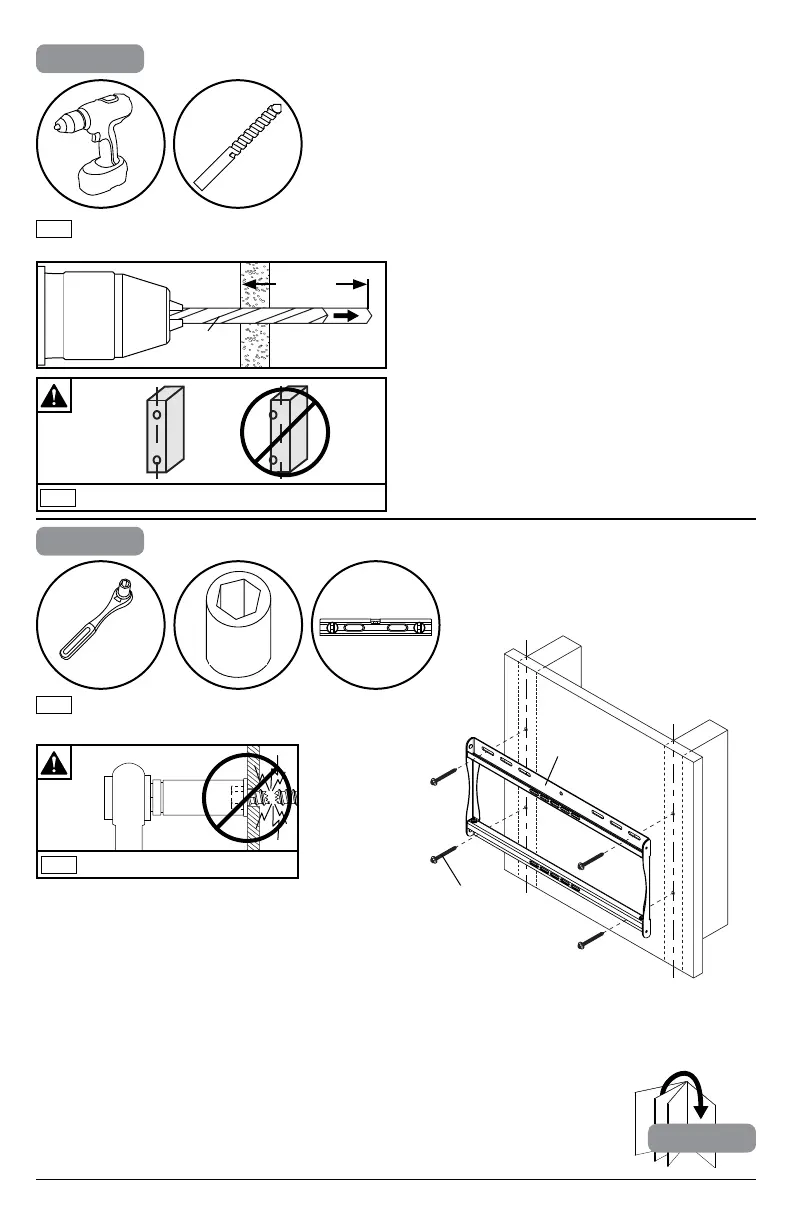

Level wallplate. Install using wood screws
provided.
ENG
5/32"
(4mm)
3/8"
(10mm)
Drill mounting holes into supporting surface
(2.5" (64mm) minimum depth required).
ENG
2
Maximum 80 in. • lb (9 N.M.).
ENG
Mounting hole must center on stud.
ENG
2.5"
(64mm)
5/32"
(4mm)
