ENG - When installing Peerless wall mounts on a concrete wall, the wall must be at least 8" thick with a minimum
compressive strength of 2000 psi. When installing Peerless wall mounts on a cinder block wall, the cinder blocks
must meet ASTM C-90 specications and have a minimum nominal width of 8". Do not drill into mortar joints!
Be sure to mount in a solid part of the block, generally 1" (25 mm) minimum from the side of the block. It is
suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid
breaking out the back of the hole when entering a void or cavity. Never attach concrete expansion anchors to
concrete or cinder block covered with plaster, drywall or other nishing material.
WARNING
2.5"
(64mm)
5/16"
(8mm)
1b-1
1b-2

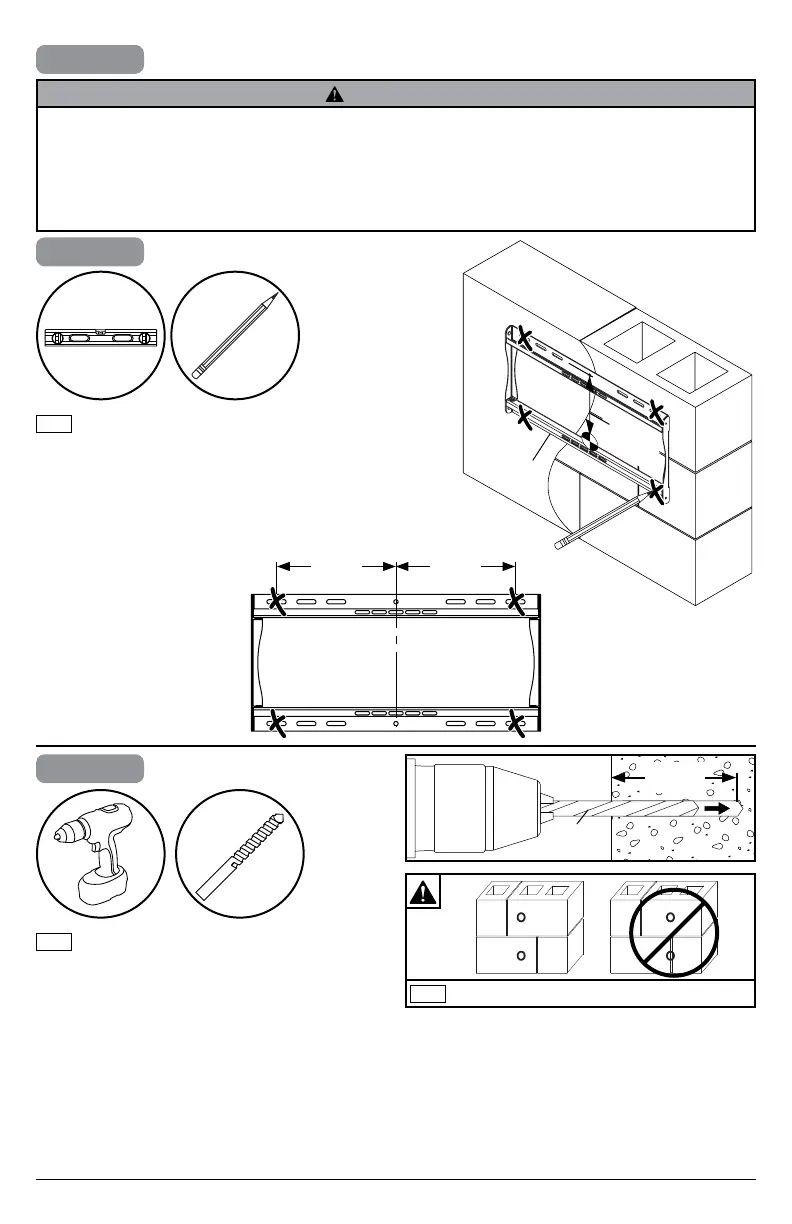

Level wallplate. Mark mounting holes.
ENG
5/16"
(8mm)
Do not drill into mortar joints.
ENG
Drill mounting holes into supporting surface
(2.5" (64mm) minimum depth required).
ENG
A
8"
(20cm)
8"
(20cm)
5.35"
(136mm)
To Next Page
