peerless-AV MOD-FPSKIT100 - Page 6

6
2012-04-30 #:203-9115-7 2017-07-07

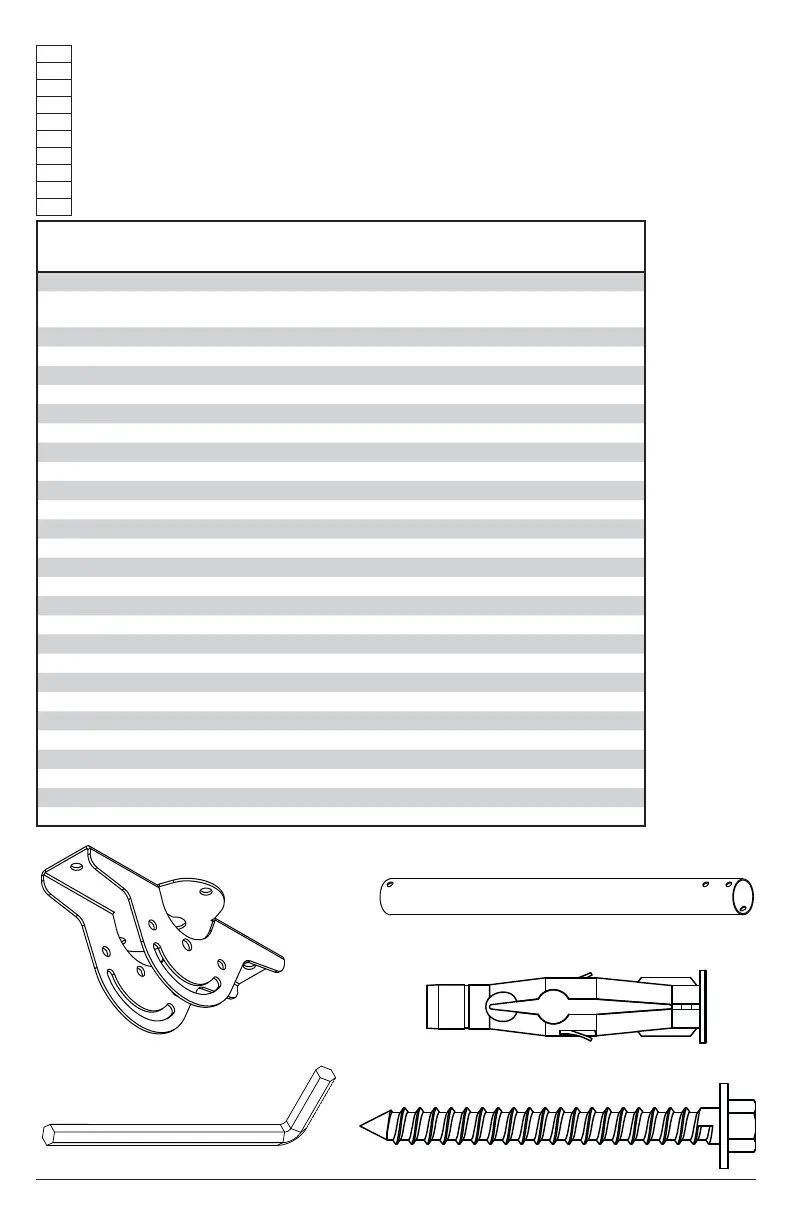

Parts (Before beginning, make sure you have all parts shown below).
Piezas (antes de iniciar, asegúrese de tener todas las piezas siguientes).
Pièces (avant de commencer, assurez-vous d’avoir toutes les pièces illustrées ci-dessous).
Teile (Achten Sie vor Beginn der Arbeiten darauf, dass alle unten abgebildeten Teile vorhanden sind).
Onderdelen (hoort u zich ervan te overtuigen dat u alle onderdelen hebt, die hieronder te zien zijn).
Parti (prima di iniziare, accertarsi di disporre tutte le parti sotto indicate).
Díly (předtím, než začnete, připravte si všechny díly zobrazené níže).
Diely (predtým, ako začnete, pripravte si všetky diely zobrazené nižšie).
Peças (antes de iniciar, certifi que-se de que tem todas as peças apresentadas em baixo).
Parçalar (Başlamadan önce, aşağıda gösterilen bütün parçaların elinizde olduğundan emin olun).
ENG
ESP
FRN
DEU
NEL
ITL
ČEŠ
SLK
POR
TÜR
D
(
4
)
10mm concrete anchor
E
(
4
)
3" wood screw
C (1)
5mm allen
wrench
B (1)
pole
A (1)
ceiling plate
Parts List
MOD-FPSKIT100-B
MOD-FPSKIT150-B
Part #
MOD-FPSKIT100
MOD-FPSKIT150
Part #Description Qty
A ceiling plate 1 100-1044 100-1044
B pole 1.0M
pole 1.5M
1
1
100-1065
100-1066
100-5141
100-5142
C 5mm allen wrench 1 560-9640 560-9640
D concrete anchor 4 590-0321 590-0321
E wood screw 4 520-1243 520-1243
F M8 x 65mm socket screw 2 520-1750 520-1750
G M8 split lock washer 1 540-9405 540-9405
H M8 fl at washer 3 540-9478 540-9478
I M8 nut 1 530-1068 530-1068
J tilt box 1 100-1069 100-1069
K tilt plate 1 100-1047 100-1047
L M8 x 15mm socket pin screw 2 520-1068 520-1068
M support collar 1 100-1048 100-1048
N M5 x 10mm self-tapping screw 2 520-1164 520-1164
O M5 x 10mm socket pin screw 8 520-1063 520-1063
P vertical bracket 1 096-1437 096-1437
Q horizontal bracket 2 096-1439 096-1439
R plate nut 2 096-1440 096-1440
AA M4 x 12mm socket pin screw 4 520-1079 520-1079
BB M4 x 25mm socket pin screw 4 520-1082 520-1082
CC M6 x 12mm socket pin screw 4 520-1050 520-1050
DD M6 x 25mm socket pin screw 4 520-1211 520-1211
EE M8 x 12mm socket pin screw 4 520-1724 520-1724
FF M8 x 25mm socket pin screw 4 520-1101 520-1101
GG M4 washer 4 540-9400 540-9400
HH M6/M8 washer 8 540-9406 540-9406
II spacer 8 600-1215 600-1215
JJ 4mm allen wrench 1 560-9646 560-9646
