7
2012-04-30 #:203-9115-7 2017-07-07

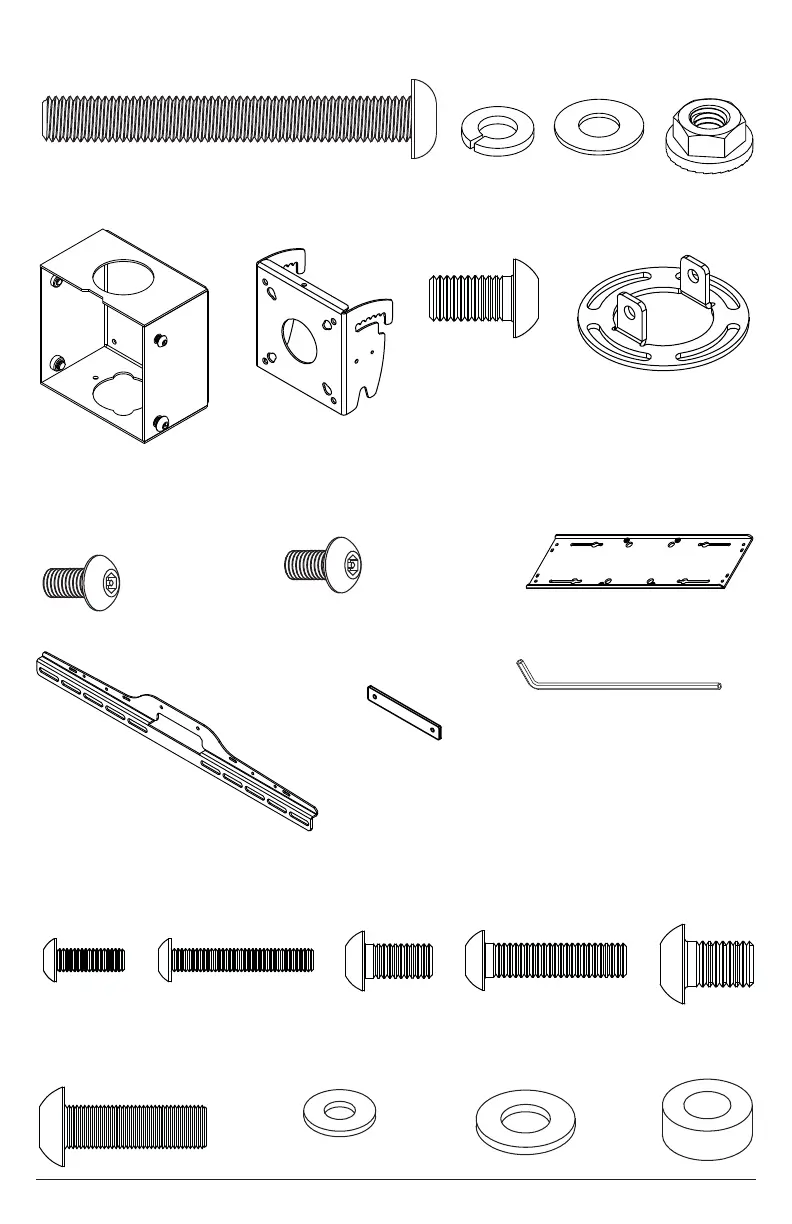

F
(
2
)
M8 x 65mm
I
(
1
)
M8 nut
H
(
3
)
M8 fl at waser
G
(
1
)
M8 split
lock washer
J (1)
tilt box
K (1)
tilt plate
L (2)
M8 x 15mm
O (8)
M5 x 10mm
M (1)
support collar
P (1)
vertical bracket
Q (2)
horizontal bracket
R (2)
plate nut
GG
(
4
)
M4 washer
II
(
8
)
spacer
HH
(
8
)
M6/M8 washer
CC
(
4
)
M6 x 12mm
AA
(
4
)
M4 x 12mm
FF
(
4
)
M8 x 25mm
DD
(
4
)
M6 x 25mm
EE
(
4
)
M8 x 12mm
BB
(
4
)
M4 x 25mm
N (2)
M5 x 10mm
self tapping
JJ
(
1
)
4mm allen wrench
