peerless-AV PT640 - Parts Identification and List; Component Overview

6
2014-10-17 #:203-9440-3 (2016-11-16)

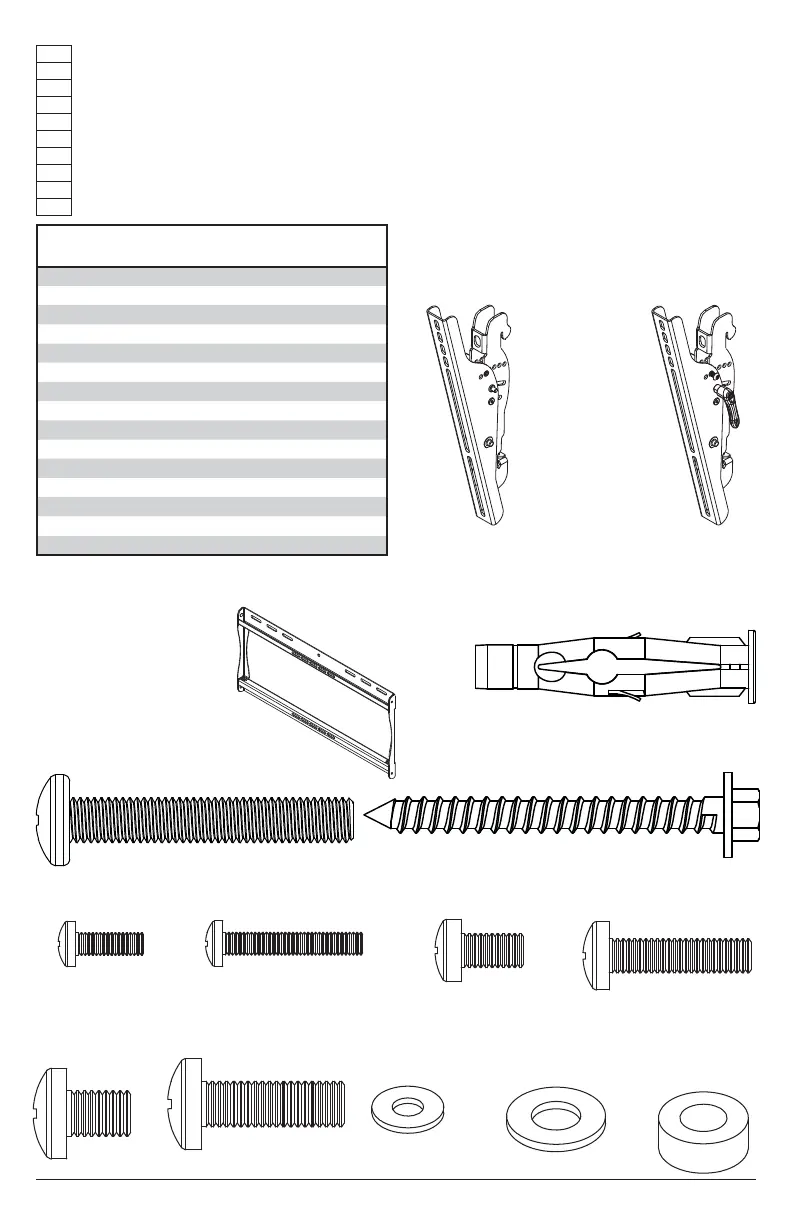

Parts (Before beginning, make sure you have all parts shown below).
Piezas (antes de iniciar, asegúrese de tener todas las piezas siguientes).
Pièces (avant de commencer, assurez-vous d’avoir toutes les pièces illustrées ci-dessous).
Teile (Achten Sie vor Beginn der Arbeiten darauf, dass alle unten abgebildeten Teile vorhanden sind).
Onderdelen (hoort u zich ervan te overtuigen dat u alle onderdelen hebt, die hieronder te zien zijn).
Parti (prima di iniziare, accertarsi di disporre tutte le parti sotto indicate).
Díly (předtím, než začnete, připravte si všechny díly zobrazené níže).
Diely (predtým, ako začnete, pripravte si všetky diely zobrazené nižšie).
Peças (antes de iniciar, certifi que-se de que tem todas as peças apresentadas em baixo).
Parçalar (Başlamadan önce, aşağıda gösterilen bütün parçaların elinizde olduğundan emin olun).
ENG
ESP
FRN
DEU
NEL
ITL
ČEŠ
SLK
POR
TÜR
D
(
4
)
8mm concrete anchor
E
(
4
)
#14 x 2-1/2" wood screw
A
(
1
)
wall plate
B (1)
right adaptor bracket
C (1)
left adaptor bracket
Parts List
Part #Description Qty
A wall plate 1 201-P1946
B right adaptor bracket 1 202-P1690
C left adaptor bracket 1 202-P1687
D 8mm concrete anchor 4 590-0320
E #14 x 2-1/2" wood screw 4 5S1-015-C03
F M4 x 12mm 4 504-9013
G M4 x 25mm 4 504-1015
H M6 x 12mm 4 520-1128
I M6 x 25mm 4 520-1208
J M8 x 12mm 4 520-9571
K M8 x 25mm 4 520-1031
L M4 x 1mm washer 4 540-9400
M M6/M8 x 1.5mm washer 8 540-9406
N 1/4" (6mm) height spacer 8 600-1215
O M8 x 50mm 4 521-1009
F
(
4
)
M4 x 12mm
G
(
4
)
M4 x 25mm
H
(
4
)
M6 x 12mm
I
(
4
)
M6 x 25mm
J
(
4
)
M8 x 12mm
K
(
4
)
M8 x 25mm
L
(
4
)
M4 x 1mm
washer
N
(
8
)
1/4" (6mm)
height spacer
M
(
8
)
M6/M8 x
1.5mm washer
O
(
4
)
M8 x 50mm
