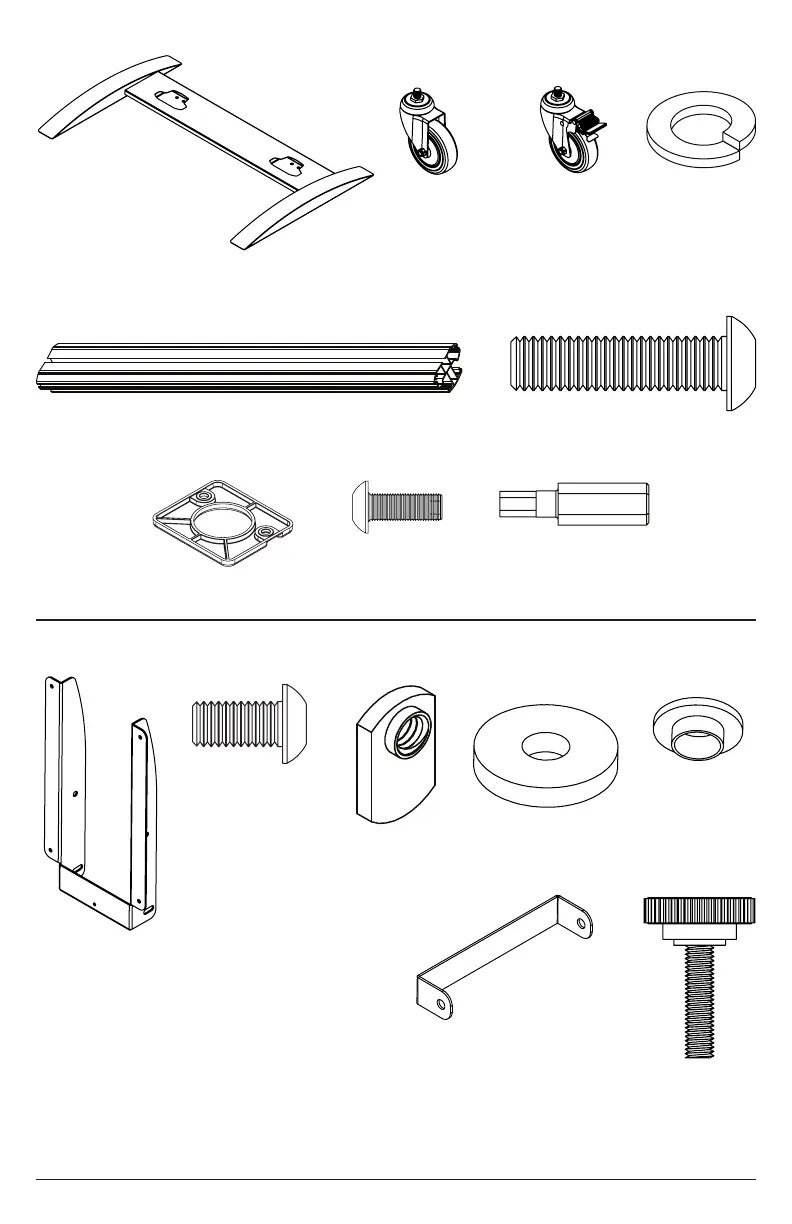

peerless-AV SR598E - Table of Contents

8
2018-05-15 #:009-9136-1
D
(
2
)
vertical
column
A
(
1
)
base
B
(
2
)
caster non locking
C
(
2
)
caster locking
E
(
8
)
3/8"-16 x 1.5" long bolts
F
(
8
)
split washer
I
(
8
)
bracket nut
G
(
2
)
bracket
K
(
4
)
shoulder
washer
H
(
16
)
5/16-18 x 5/8"
J
(
4
)
.164" height
spacer
M
(
2
)
knob
L
(
2
)
adjustment
bracket
CC
(
1
)
4mm security driver bit
AA
(
4
)
base foot
BB
(
8
)
M5 x 13mm
