Parts List
ST940-EXA
ST940-EXB
ST940-EXC
Part #
ST940-EXA-W
ST940-EXB-W
ST940-EXC-W
Part#Description Qty
A EXA ceiling plate assembly
EXB ceiling plate assembly
EXC ceiling plate assembly
1
1
1
056-1166
056-1171
056-1176
056-2166
056-2171
056-2176
B adaptor plate 1 096-1399 096-2399
C left braket 1 056-1359 056-2359
D right bracket 1 056-1358 056-2358
E end plug 1 590-1402 590-2402
F cover 2 590-1393 590-2393
G knob 1 560-1199 560-1199
H extension tube 1 056-1361 056-2361
I 8mm anchor 2 590-0320 590-0320
J #14 x 2-1/2" wood screw 2 5S1-015-C03 5S1-015-C04
K M4 x 12mm 4 520-1079 520-2695
L M4 x 25mm 4 520-1082 520-2082
M M6 x 12mm 4 520-1050 520-2050
N M6 x 25mm 4 520-1211 520-2700
O M8 x 12mm 4 520-1724 520-2724
P M8 x 25mm 4 520-1101 520-2101
Q 5/16" washer 8 540-9406 540-9446
R spacer 8 600-1215 600-1215
S 4mm allen wrench 1 560-9646 560-9646
T carriage bolt 1 520-1244 520-2244
U carraige bolt washer 1 540-1625 540-2625
V #10 washer 8 540-9400 540-9442
W 1/4" washer 1 540-9440 560-9444
X M5 x .8 x 6mm 4 520-1023 520-2214
Y M5 x 5mm set screw 1 520-1975 520-2355
Z at tie holder 1 590-1290 590-1290
AA 8-32 x 1/4" phillips screw 1 520-1622 520-1622
BB cable tie 1 560-9711 560-9711

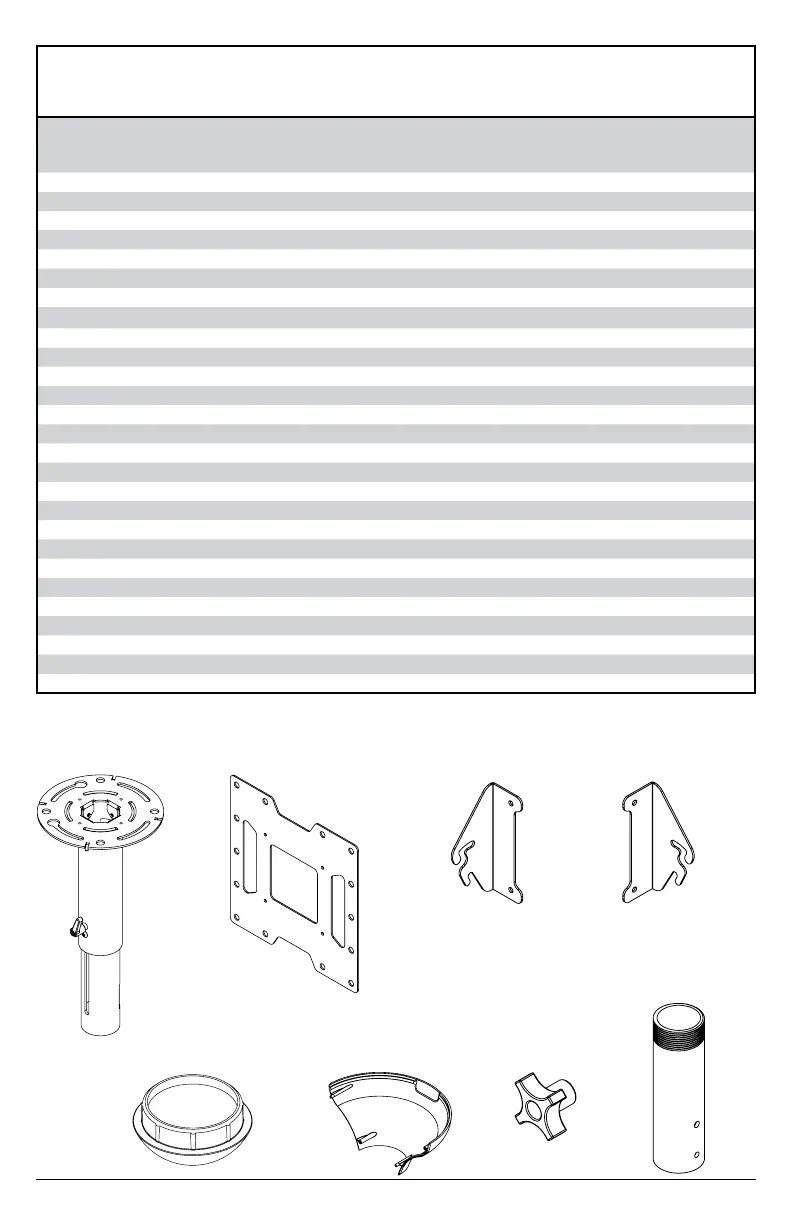

B
(
1
)
adaptor plate
D
(
1
)
right braket
C
(
1
)
left braket
H
(
1
)
extension tube
F
(
2
)
cover
G (1)
knob
E (1)
end plug
A
(
1
)
ceiling plate assembly
