peerless-AV ST940-EXA - Page 7

7
2015-03-17 #:056-9641-3 (2017-02-08)
J
(
2
)

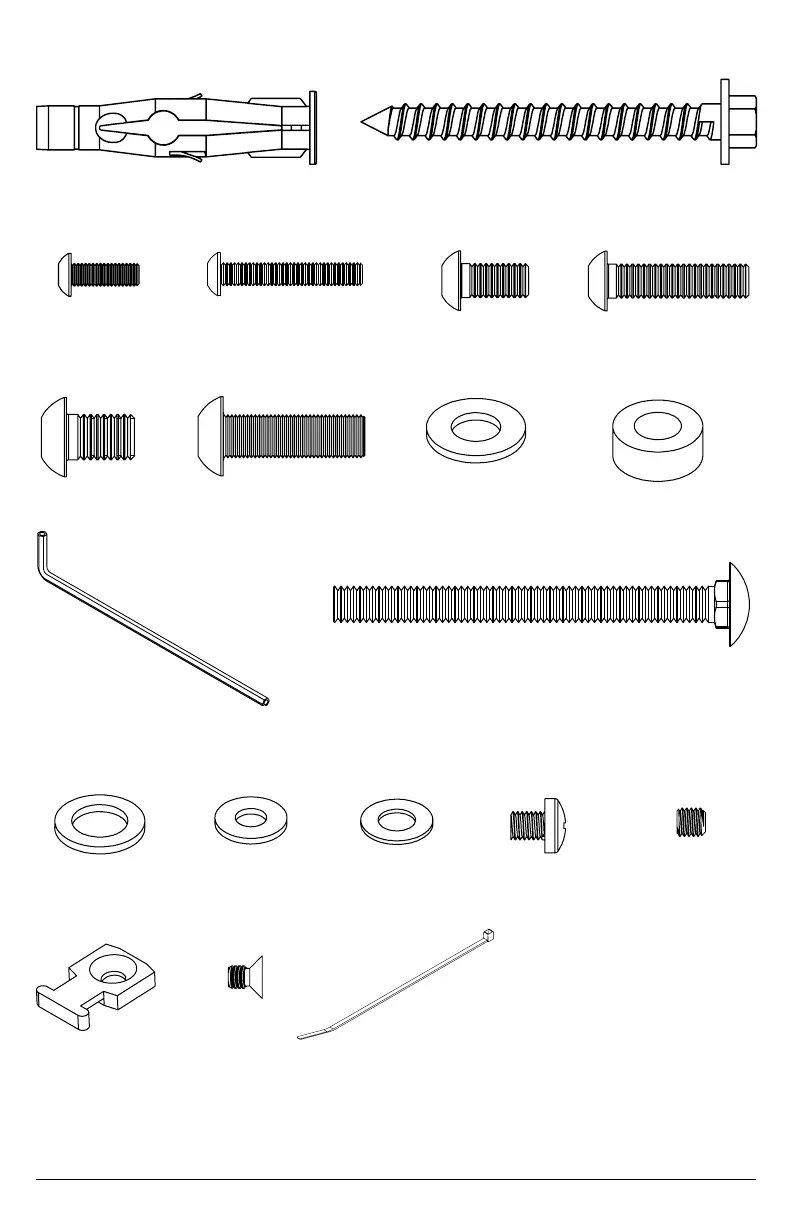

#14 x 2-1/2" wood screw
I
(
2
)
8mm concrete anchor
S (1)
4mm security
wrench
Y (1)
M5 x 5mm set screw
at tie holder
Z
(
1
)
AA
(
1
)
8-32 x 1/4"
BB
(
1
)
cable tie
X
(
4
)
M5 x .8 x 6mm
T
(
1
)
carriage bolt
U (1)
carriage bolt washer
V (8)
#10 washer
W (1)
1/4" washer
K (4)
M4 x 12mm
L (4)
M4 x 25mm
M (4)
M6 x 12mm
N (4)
M6 x 25mm
O (4)
M8 x 12mm M8 x 25mm
P (4) Q (8)
5/16" washer
R (8)
spacer
