ISSUED: 01-10-07 SHEET #: 009-9039-14 01-11-11
L
D
G
X
fi g. 3.2
CORD MANAGE-
MENT HOLES
fi g. 3.1

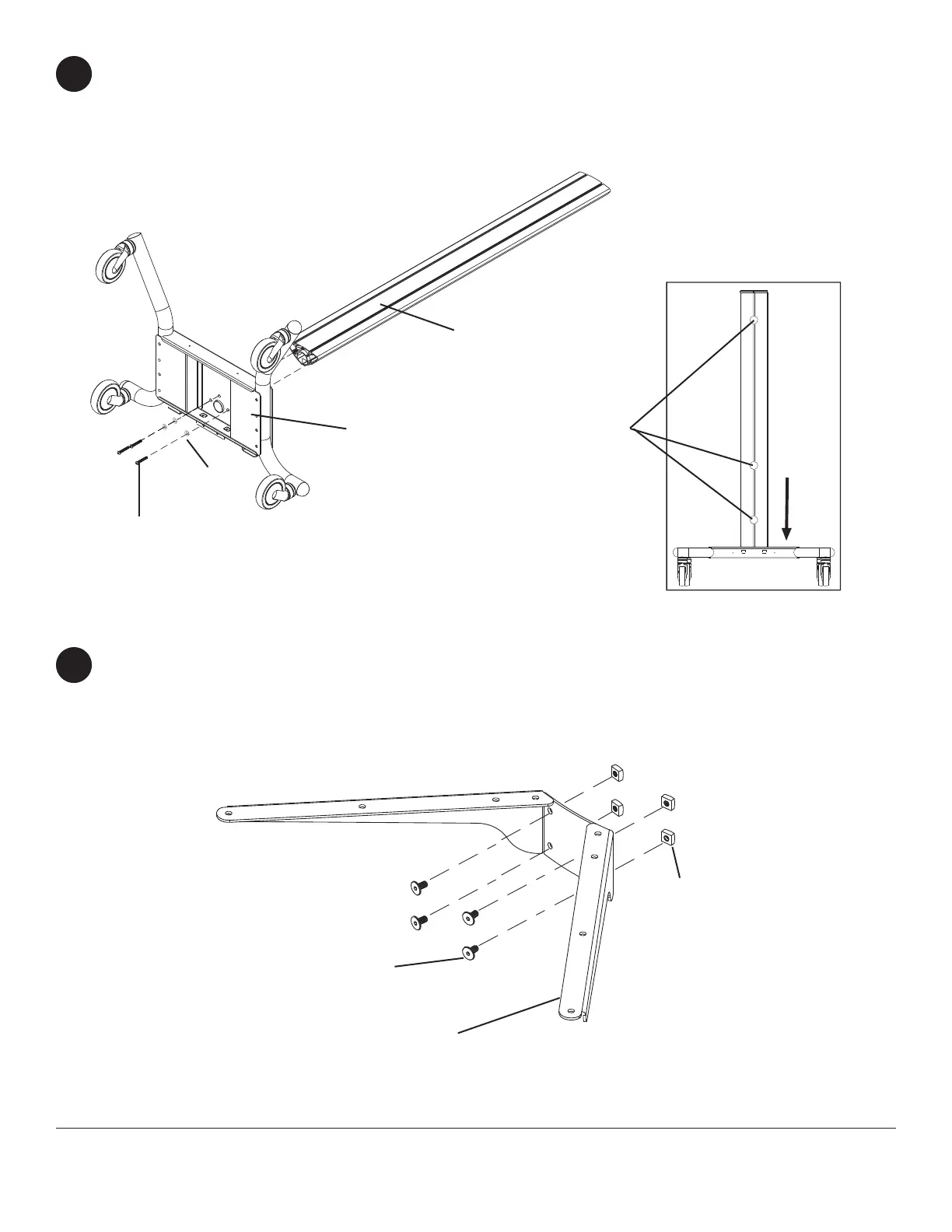

Attach upright (G) to base (D), as shown in  g 3.1 using three 3/8-16 x 2.5" socket screws (L) and M10 x .402ID
lock washers (X). Tighten screws using 7/32" allen wrench (M).
NOTE: Be sure cord management holes are in the con guration shown in  g 3.2.
3
Loosely attach four 1/4-20 x 12 mm screws (I) and 1/4-20 nuts (J) to shelf support (C).
4
C
I
J
