PEERLESS SR560G - Assembling Cart

5 of 13
ISSUED: 01-10-07 SHEET #: 009-9039-14 01-11-11

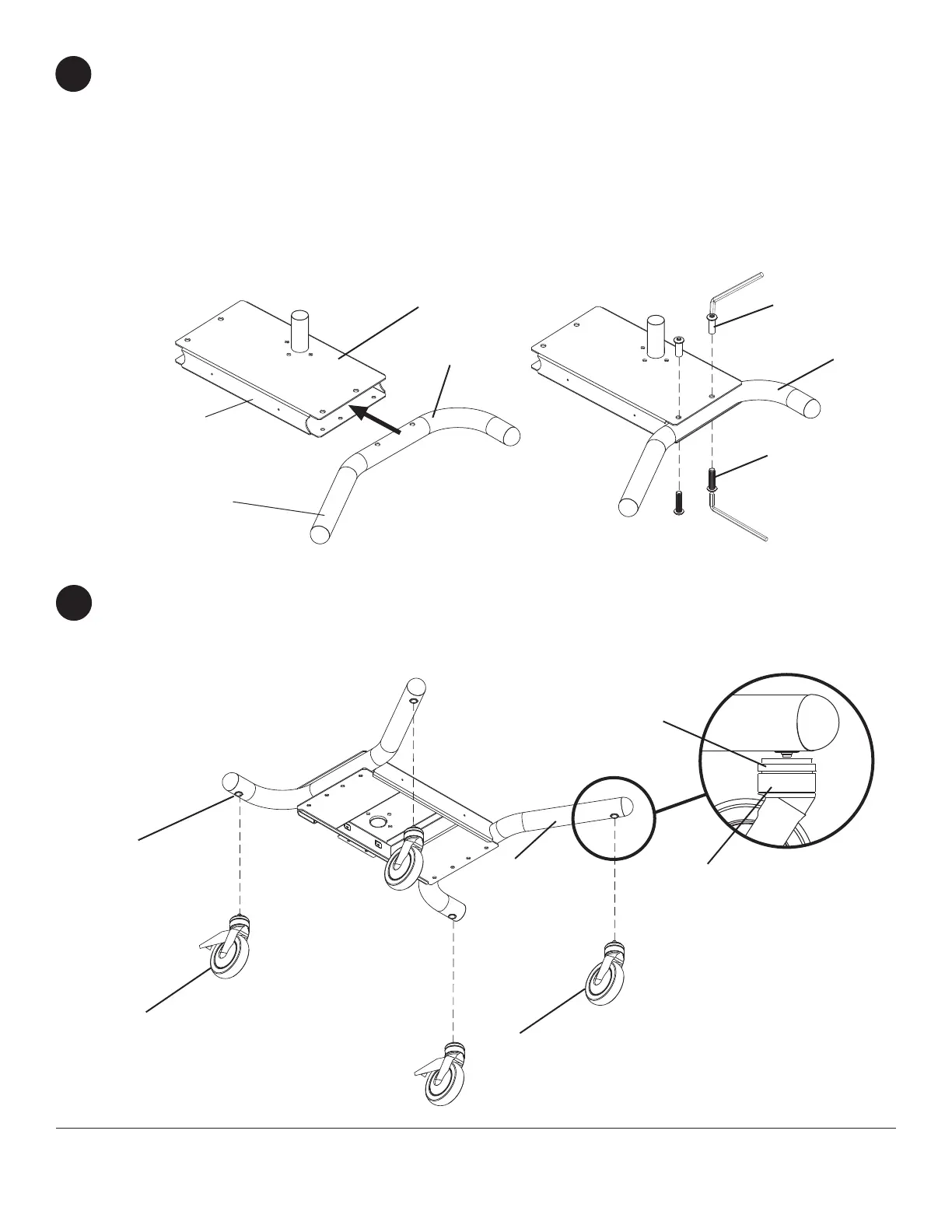

Insert right leg (S) into base housing (D) as shown in  g. 1.1. Then align holes in right leg with holes in base
housing (D). Fasten base housing to right leg using two 3/8-16 x 1.5" bolts (W) and two joint connectors (V). Tighten
using 3/16" allen wrench (Z) and 7/32" allen wrench (M) as shown in  g.1.2.
NOTE: Left and right legs can be identi ed by looking at the cart from the front.
Repeat for left side with left leg (R).
1
S
W
fi g. 1.2
V
fi g. 1.1
D
S
FRONT OF CART
FRONT OF LEG
2
Insert casters (U & T) into holes of support legs (R & S) and hand thread to secure. Attach casters with brake (U) to
the back of left and right support legs (R & S). Attach casters without brake (T) to front of support legs as shown.
NOTE: Lock brakes on casters to avoid sudden movements during installation.
R
U
T
S
HAND THREAD
HOLD WHEEL
