+15V

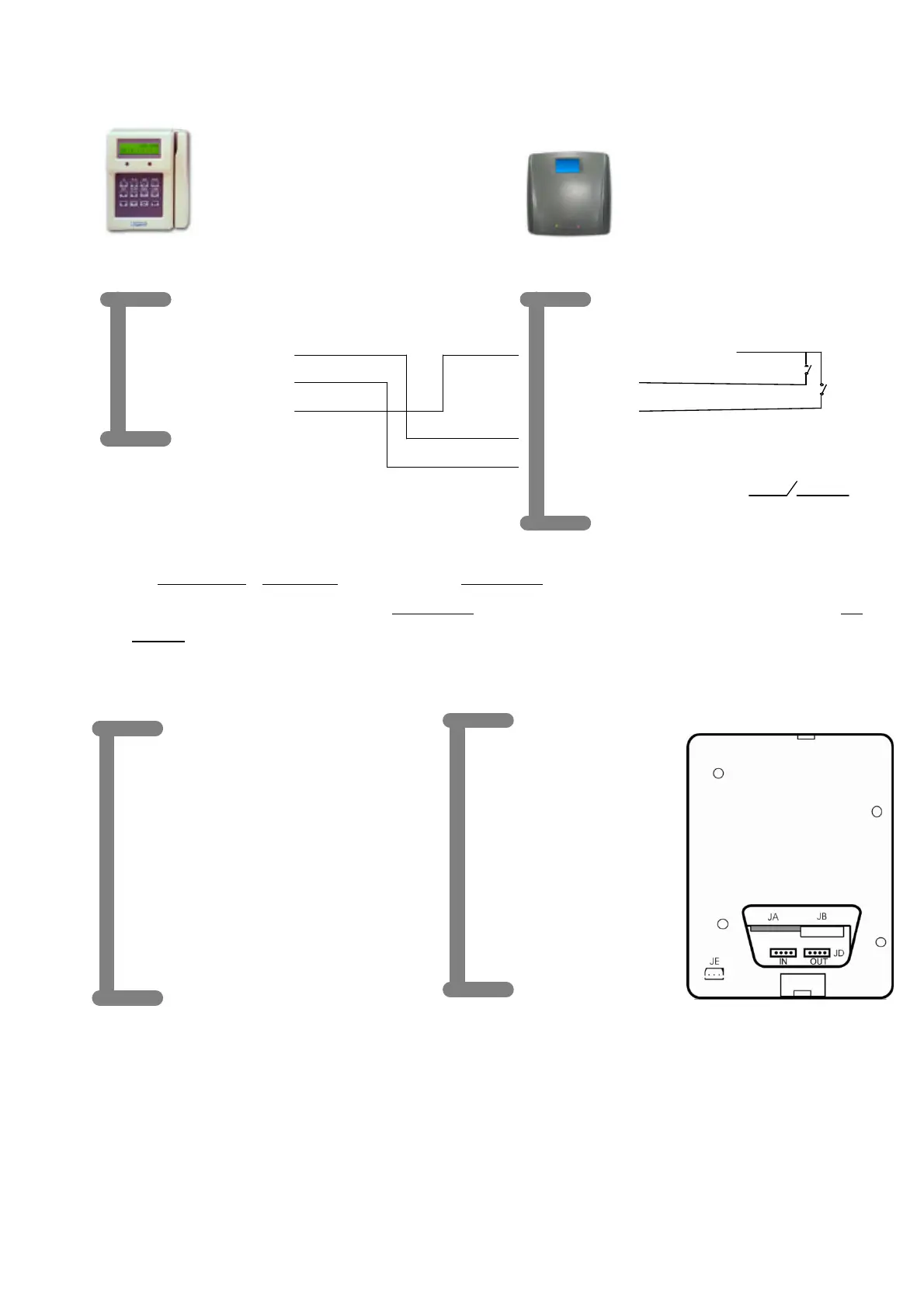

PP-2752 Connecting Diagram Of Long Range Hand Free Vehicle
Access Control System
Ver.5.02
PP-2752 Controller 4 PIN Wiegand port (white)- JC、JD PFH-9210-620-1/W Receiver 7PIN wire
1.(Red) -- 1.A(Red)— +15V Input Entry sensor
2.(Yellow) --Data 1 2.B(Black)— DC GND-
3.(Green) --Data 0 3.C(Green)
4.(Black) –Ground 4.D(Blue) Exit sensor
5.E (White) — Data 1
6.F(Yellow)— Data 0
7.G(Gray) — Power for reader
Noted：1. The PIN C(green) or PIN D(blue) must be shorted to PIN B(black) DC Ground to read the card.
2. The reader will only be powered when PIN G(Gray) is connected to +15V power supply (min. 300mA). The PIN
G(Gray) can be controlled by relay contacts which is controlled by timer delayed relay. After effective reading, it will be
disable for a few seconds during vehicle passes the gate.
PP-2752 Controller 9 PIN connector JA (blue) Controller 8 PIN connector JB (white)
1.(Red)— +12V A.(Brown)
2.(Black)— GND B.(Red)
3.(Brown)— Common COM C.(Orange)
4.(Orange)— Common(FORM A) N.O. D.(Yellow)
5.(Yellow)— Common(FORM B) N.C. E.(Green)— COM
6.(Green) F.(Blue) — N.O.
7.(Blue)— Exit push button G.(Purple)
8.(Purple)— Door monitoring H.(Gray)
9.(Gray)— Printer output
Remarks: 1. you could use sensor coil controller or IRF sensor to compatible with entry / exit sensor.
2. sensor contact：it’s a dry contact, when the vehicle reach it becomes short output which is outputted by coil
sensor or IRF sensor.
3. The PP-2752 could parallel many PFH-9210-620-1/W receiver boxes at the same time, but the distance of
receiver box and receiver box has to be kept min. 2 meters.
The max. distance of PP-2752 &
PFH-9210-620-1/W is 30 meters.
( vehicle loop detector or
IR sensor)
}Barrier 2
}Barrier 1
To Next Page
