HUM2ESXX CONFIGURATION
HARDWARE CONFIGURATION
Remove the cover over the front hole of the Master HUM2. The Jumper J2 with sensitivity
configuration TA can now be accessed through the hole below.

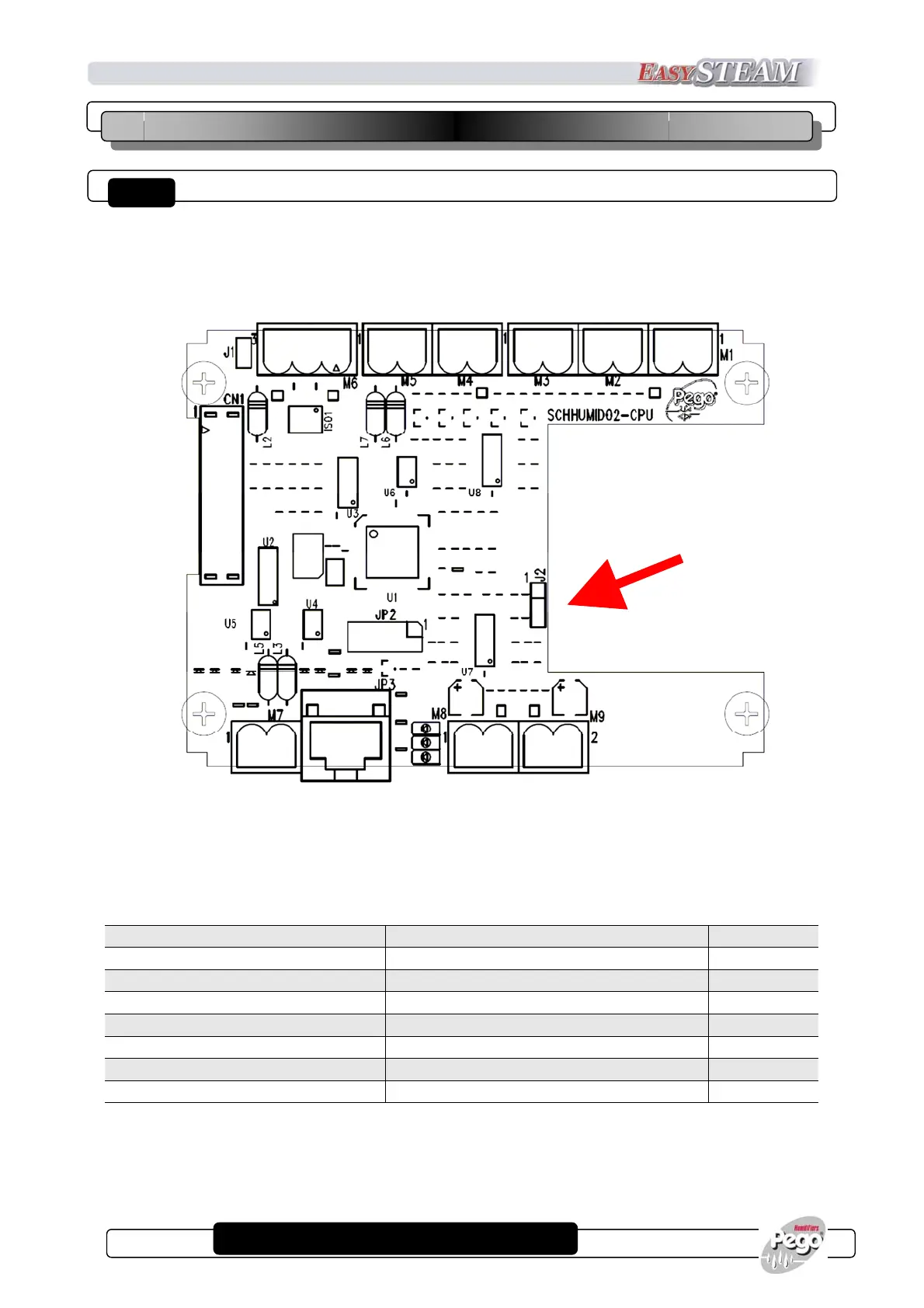

Set the jumper J2 (fig.1) in the position corresponding to the humidifier model according to 1.
(fig.1)
Jumper J2 has 2 possible positions; the jumper can be connected in position 1-2 or position 2-3.
Table 1: hardware setting correspondence through jumper J2 and humidifier size.
ES series humidifier model OEM series humidifier model J2 Position
400ES3MN 400ES3MOEMN / 400ES3MOEMCN 2-3
400ES6MN 400ES6MOEMN / 400ES6MOEMCN 2-3
400ES6N 400ES6OEMN / 400ES6OEMCN 1-2
400ES12N 400ES12OEMN / 400ES12OEMCN 2-3
400ES24N 400ES24OEMN / 400ES12OEMCN 2-3
400ES48N 2-3
