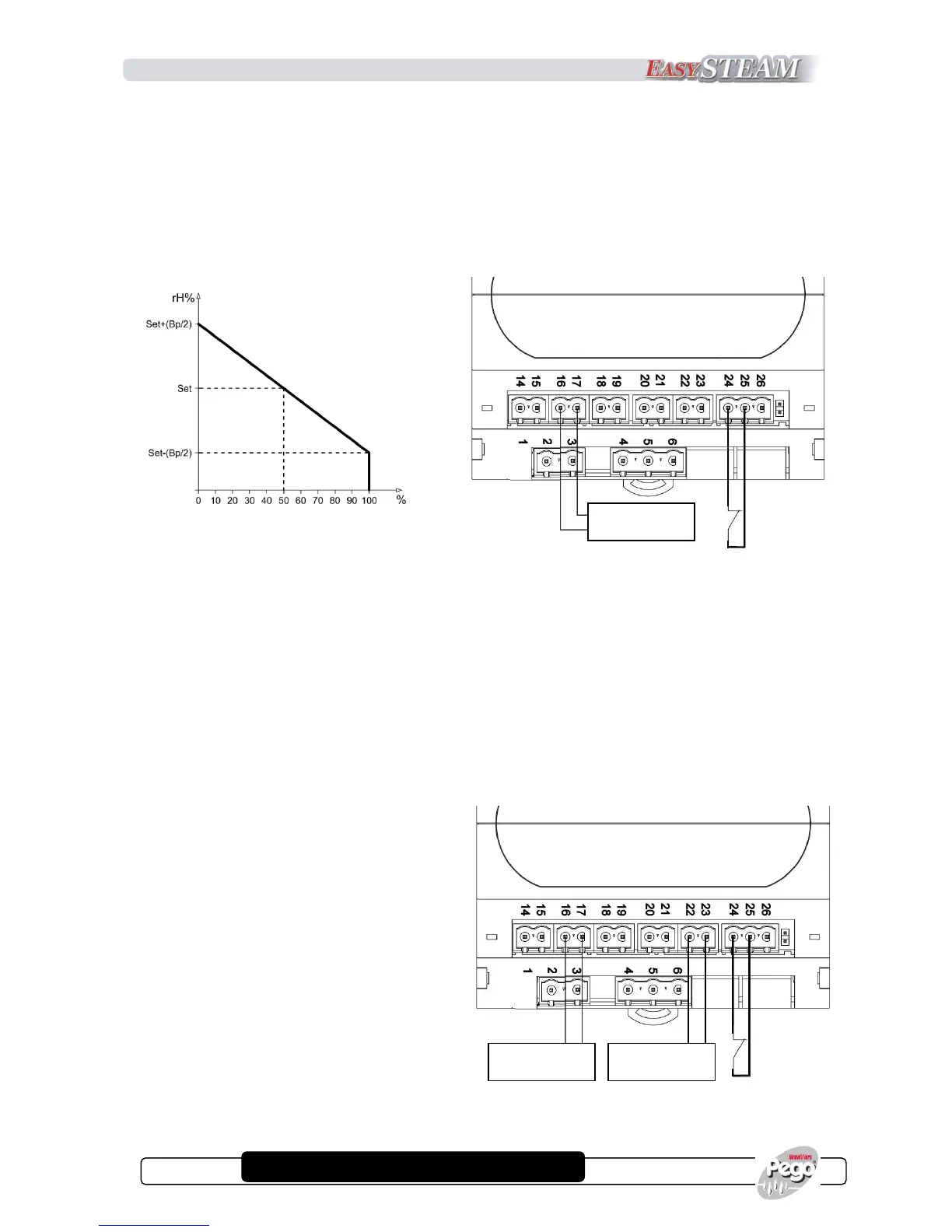

- [S9=5] PROPORTIONAL functioning with 0-10Vdc ambient humidity probe
(INTEGRATED HUMIDOSTAT):
This type of functioning envisions proportional steam output; the humidifier will automatically
regulate the steam output based on the request in ambient depending on set set. Consent is given
by a 0-10Vdc (0-100%RH) humidity probe that, as well as regulate steam output, enables
displaying relative humidity in ambient, directly on humidifier display. Set the second level
variable S9=5 and connect signal 0-10Vdc of the humidity probe to clamps 16 and 17; in
particular, connect VRH signal to clamp 16, connect GND to clamp 17.
-
-
-
The Bp proportional band is the percentage value of the humidity around the set point; within
this value the humidifier works proportionally. Example: if the proportional band is set on
default value 10% (-5% / +5% set point value) and humidity is set at 50%, below 45% the
humidifier will work at 100% of steam output; above 55%, the humidifier will not produce
steam. Between 45% and 55%, the humidifier will optimally regulate steam output.
- [S9=6] PROPORTIONAL functioning with 0-10Vdc ambient humidity probe + 0-10Vdc
limit channel probe (INTEGRATED HUMIDOSTAT):
This type of functioning envisions proportional steam output; the humidifier will automatically
regulate the steam output based on the request.
in ambient depending on set set and the value measured in duct.
Set the second level variable S9=6 and
connect signal 0-10Vdc of the humidity
probe (0-100%RH) to clamps 16 and 17;
in particular, connect VRH signal to clamp
16 and connect GND to clamp 17.
Connect channel probe signal 0-10Vdc (0-
100%RH) to clamps 22 and 23, in
particular, connect VRH signal to clamp
22 and GND to clamp 23. For further
clarification on the channel probe, refer to
chapter 3 on programming (variables StC,
r0, t1).
