General
The fitting of the appliance should only be
carried out by a registered fitter.
The appliance is not connected to the flue gas
outlet channel.
Please note:
The power rating and required mains voltage
are shown on the rating plate at the back
of the oven. Connection should take place
according to national and local regulations.
If the specified power is more than 3 kW, a
socket suitable for current greater than 13 A
must be used.
Electrical connection 230 V~/400 V 3N~ 9,2 kW
 The electrical connection must comply
with national and local regulations. For the
Netherlands this includes the NEN 1010
amongst other standards.
 Wall socket and plug must be accessible at
all times.
5x1,5 mm
2
380 V 3N~
5x1,5 mm
2
400 V 3N~
5x1,5 mm
2
415 V 3N~
The appliance should always be earthed.
Use a good quality cable for connecting, type
H05V V-F.
If you want to make a fixed connection,
ensure that a multi-pole switch with a
distance between contacts of 3 mm is
installed in the supply cable.

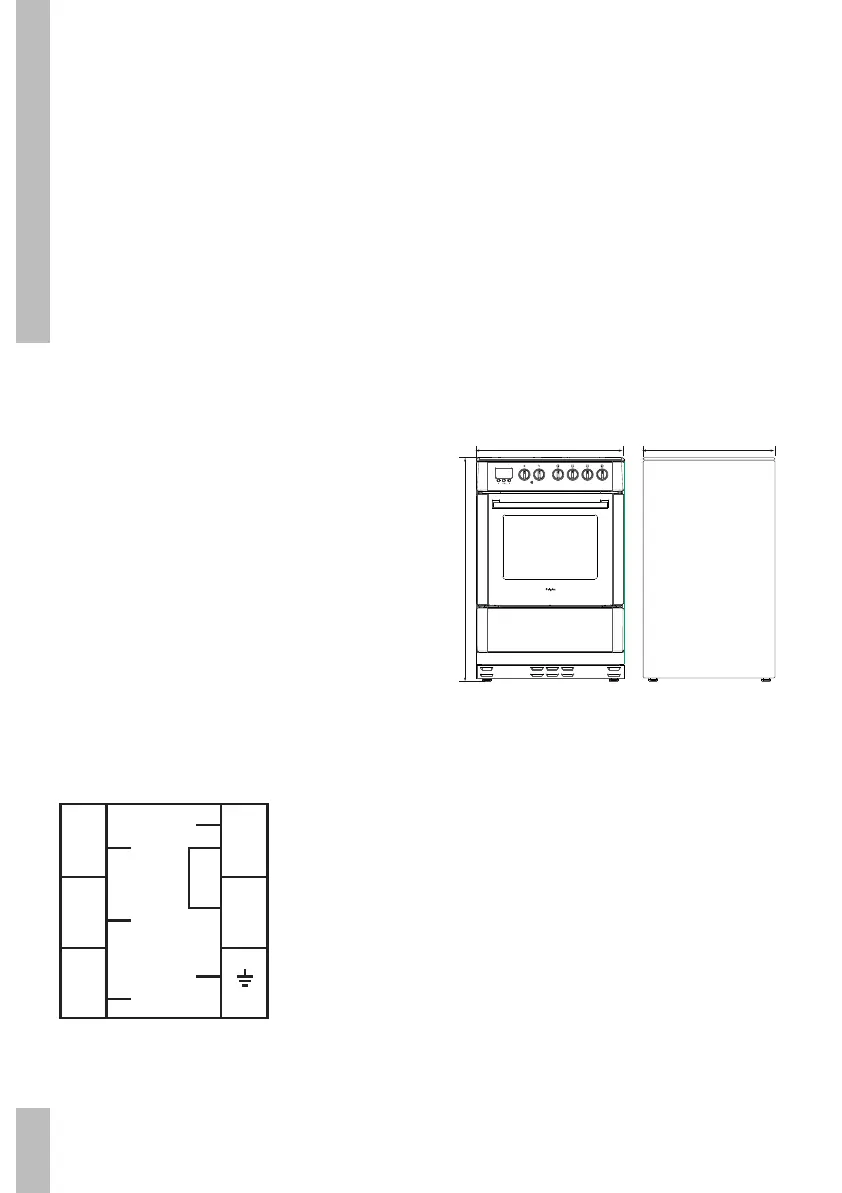

Built-in dimensions
front view side view
900-
915
600
600
L
N
PE
L
3
2
4
5
1
3
L
2
