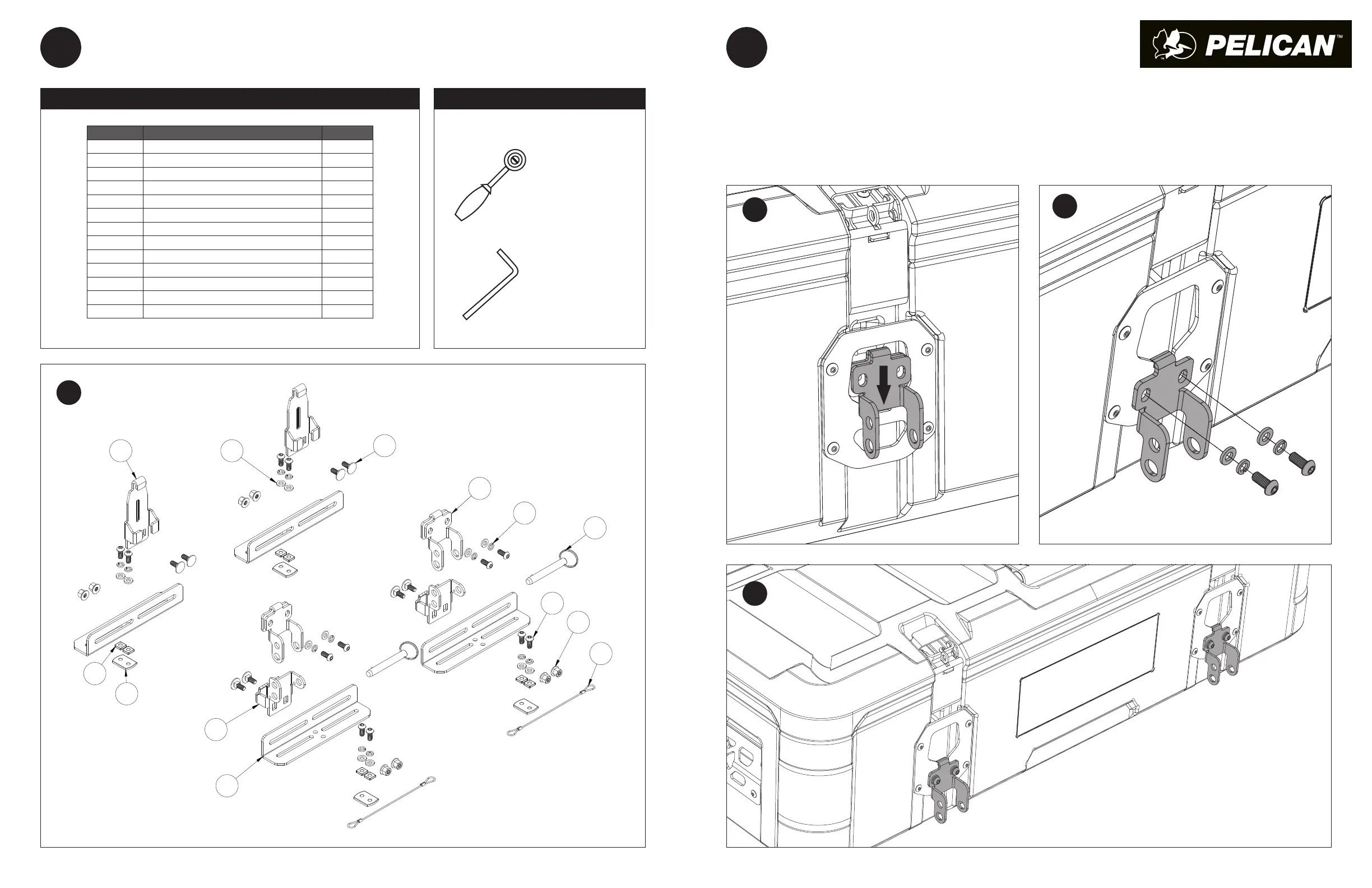

PARTS LIST TOOLS REQUIRED
*
1
1.1
GET ORGANIZED
M4 ALLEN KEY/ DRIVER
M10 WRENCH/SOCKET
ITEM NO. DESCRIPTION QT Y.
1 MOUNTING BRACKET 4
2 PINNED YOKE 2
3 FIXED HOOK 2
4 CASE PLATE CLAMP 2
5 QUICK-RELEASE PIN 2
6 LANYARD 2
7 M6-1.0 X 16 CARRIAGE BOLT 8
8 M6-1.0 NYLON LOCK FLANGE NUT 8
9 M6-1.0 X 14 BUTTON HEAD HEX DRIVE SCREW 12
10 M6 FLAT WASHER 12
11 M6 SPLIT LOCK WASHER 12
12 SINGLE T-NUT, M6/M8 T-SLOTS 8
13 DOUBLE T-NUT, M10 SLOTS 4
* Tools not included.
2
INSTALL CASE PLATE CLAMPS
OPTIMALLY MOUNT TO PLATES ON THE LATCHES SIDE OF CASE FOR
EASY LID OPENING FROM SIDE OF VEHICLE.
USING M4 ALLEN DRIVE TOOL, ASSEMBLE CLAMPS TO PLATES USING
M6 SCREWS, WITH LOCK WASHERS AND FLAT WASHERS AS SHOWN.
PARTIALLY TIGHTEN SCREWS ONLY TO ALLOW FINAL ADJUSTMENT.
REPEAT FOR 2ND MOUNTING PLATE ON SAME SIDE OF CASE.
1 2
2.1
2.2
2.3
