Pelican RFMT2 - Mount Assembly and Placement; Upper and Lower Mounts Assembly; Preliminary Mounting to Case Clamps; Fitting and Securing to Roof Rack

3

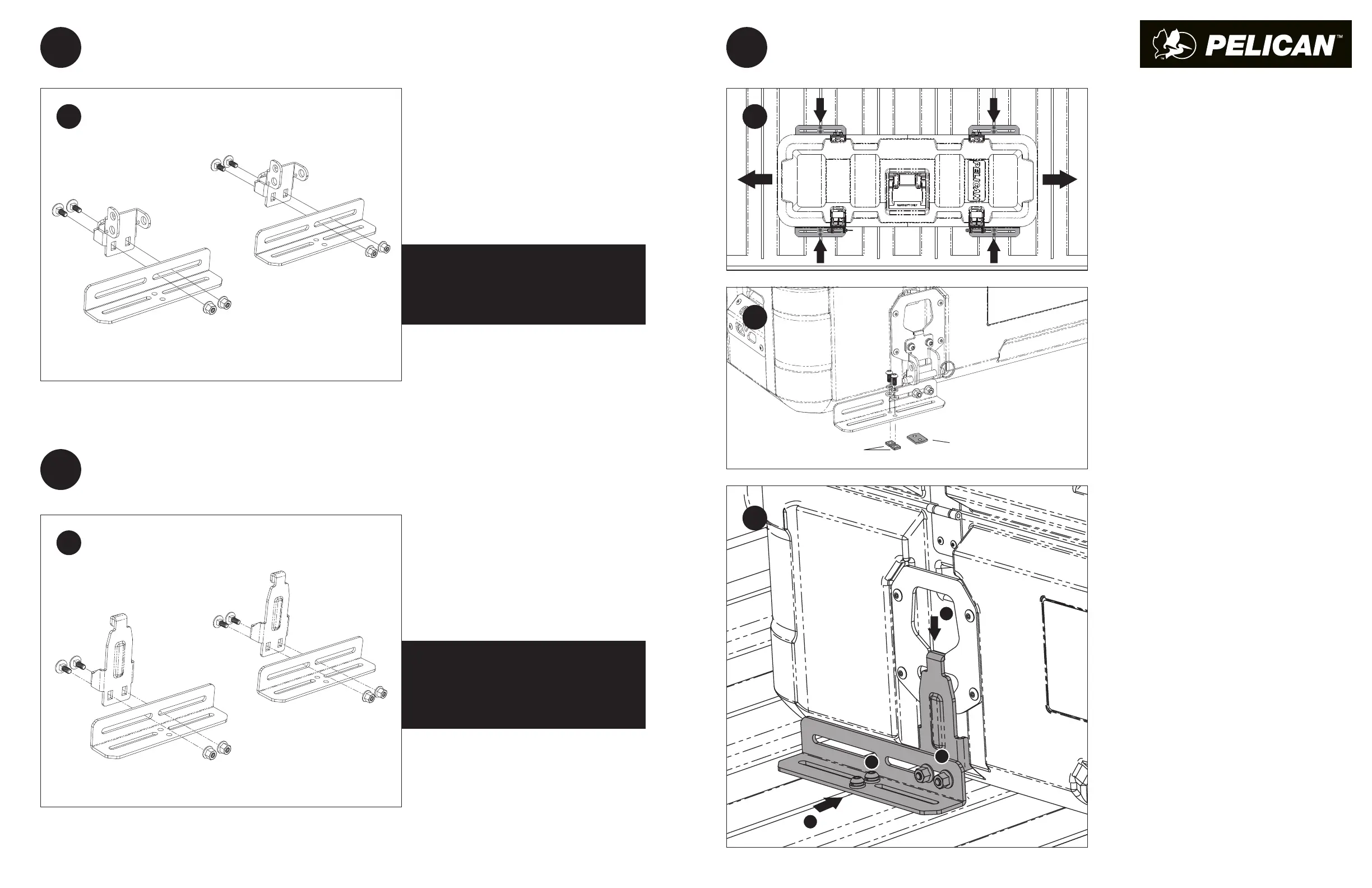

UPPER AND LOWER MOUNTS ASSEMBLY
4
PRELIMINARY MOUNTING
TO CASE CLAMPS
3.1
4.1
ASSEMBLE TWO FIXED BRACKET
ASSEMBLIES AS SHOWN, USING M6
CARRIAGE BOLTS AND LOCKNUTS.
ONLY PARTIALLY TIGHTEN NUTS TO
ALLOW FINAL ADJUSTMENT WITH
CASE POSITION.
NOTE: YOU MAY NEED TO REPOSITION
THE FIXED HOOK TO THE LEFT OR
RIGHT SLOTS LATER FOR DESIRED
PLACEMENT OF CASE ON RACK.
INSERT M6 SCREWS WITH FLAT AND
LOCK WASHERS INTO THE 4 MOUNTING
BRACKETS.
USE THE 8 SINGLE T-NUTS FOR T-SLOT
OPENINGS 6-8MM WIDE, OR 4 DOUBLE
T-NUTS FOR 10-11MM SLOT OPENINGS.
ONLY PARTIALLY TIGHTEN BRACKETS TO
RACK TO ALLOW FINAL ADJUSTMENT.
REPEAT FOR EACH OF THE 4 BRACKETS.
FOR T-SLOT OPENINGS
6-8mm WIDE
FOR T-SLOT OPENINGS
10mm WIDE
TIGHTEN THE TWO FIXED
HOOK MOUNTS FIRST
1. ADJUST THE FIXED HOOK MOUNT
AGAINST THE CASE WITH HOOK
RESTING IN THE CASE PLATE SLOT.
2. TIGHTEN THE 2 HEX NUTS WITH AN
M10 SOCKET/WRENCH.
3. TIGHTEN THE 2 ALLEN SCREWS NEXT,
TO SECURE BRACKET TO THE RACK.
REPEAT FOR THE OTHER FIXED HOOK
BRACKET.
5
5.1
5.2
5.3
1
2
1
3
FIT & SECURE
PLACE CARGO CASE IN DESIRED
POSITION ON YOUR ROOF RACK.
WITH THE 4 MOUNTS PLACED LOOSELY IN
THE CASE PLATE RECESSES AS SHOWN,
ADJUST MOUNT HOOKS/YOKES IN
THEIR SLOTS AND POSITION MOUNTING
BRACKETS AS NEEDED TO ALIGN WITH
CROSSBAR T-SLOTS.
3 4
ASSEMBLE TWO PINNED BRACKET
ASSEMBLIES AS SHOWN, USING M6
CARRIAGE BOLTS AND LOCKNUTS. ONLY
PARTIALLY TIGHTEN NUTS TO ALLOW
FINAL ADJUSTMENT WITH CASE
POSITION.
NOTE: YOU MAY NEED TO REPOSITION
THE PINNED YOKE TO THE LEFT OR RIGHT
SLOTS LATER FOR DESIRED PLACEMENT
OF CASE ON RACK.
