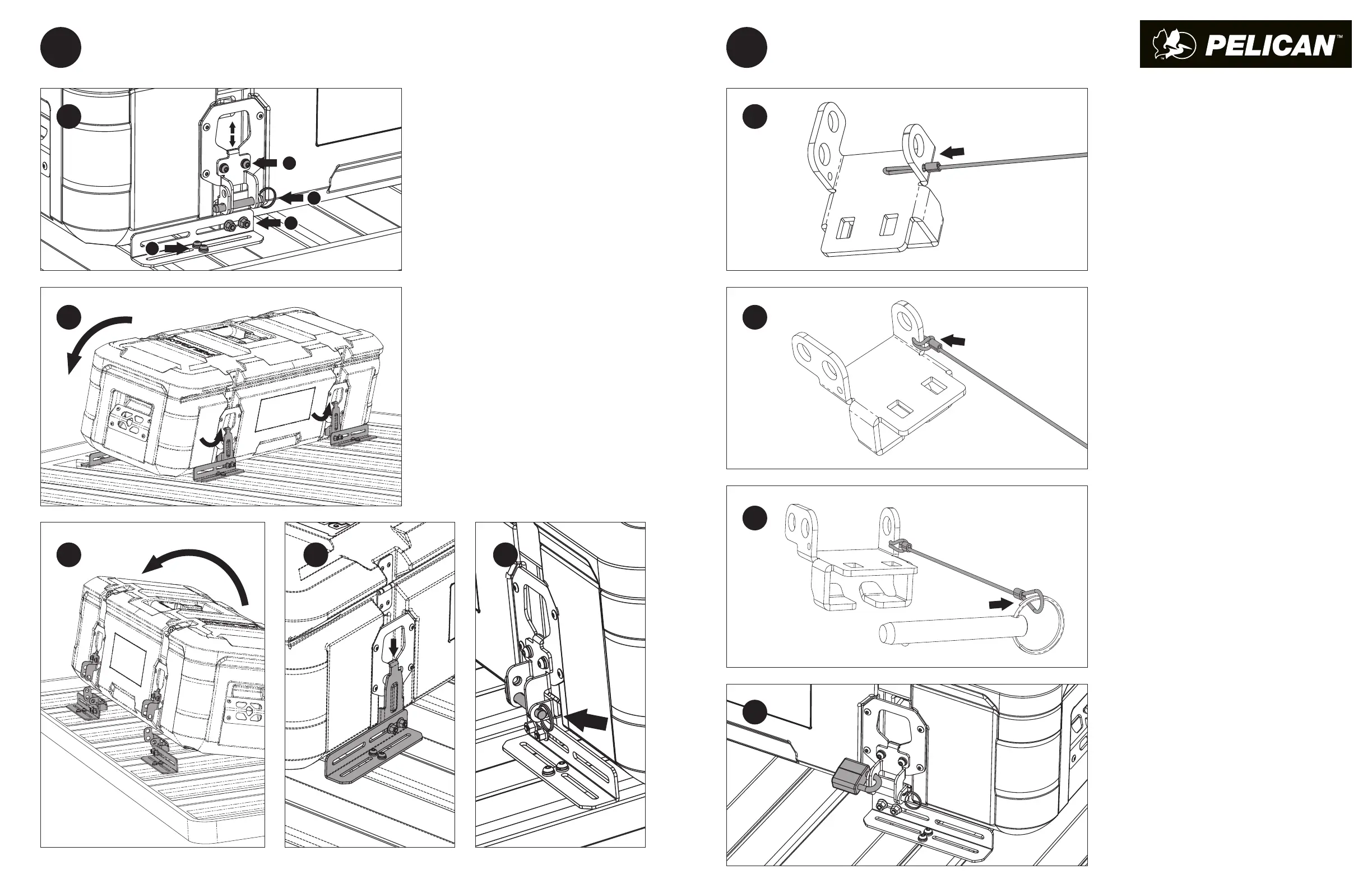

LOADING CARGO
CASE ON ROOF MOUNTS
LOWER THE CASE WITH ITS BACK EDGE
RESTING ON ROOF RACK. VISUALLY LINE
UP PLATE CLAMPS WITH MOUNT YOKES.
ROTATE FRONT EDGE OF CASE DOWN INTO
POSITION ON THE PIN YOKES.
THIS WILL ENGAGE FIXED HOOKS AT REAR.
CHECK HOOK ENGAGEMENT.
INSERT QUICK RELEASE PINS
5 6
5.4
5.5
5.6 5.7 5.8
FIT & SECURE
ADJUST/TIGHTEN
PINNED MOUNTS LAST
1. INSERT QUICK RELEASE PINS AS SHOWN.
WITH FASTENERS LOOSENED, ALIGN ALL
PARTS.
2. FIRST TIGHTEN HEX NUTS WITH M10
SOCKET/WRENCH.
3. NEXT TIGHTEN THE MOUNTING BRACKET
SCREWS TO THE RACK WITH M4 ALLEN
TOOL.
4. FINALLY, ADJUST VERTICAL POSITION OF
PLATE CLAMP TO ALLOW EASY INSERTION
OF QUICK RELEASE PIN, AND TIGHTEN
SCREWS WITH M4 ALLEN TOOL.
6.3
6.1
1. SQUEEZE END OF LANYARD AND PUSH
THROUGH HOLE IN PINNED YOKE
2. FEED OTHER END BACK THROUGH LOOP.
PUSH PAST CRIMP EDGE TO SECURE, AS
SHOWN.
3. ATTACH LOOSE END TO KEY-RING OF
QUICK RELEASE PIN. REPEAT FOR OTHER
LANYARD.
6.2
TO SECURE CARGO
CASE AGAINST THEFT
PADLOCK ONE OR BOTH PINNED MOUNTS
(PADLOCK SOLD SEPARATELY).
6.4
5 6
2
4
1
3
ASSEMBLE LANYARDS
