IMPORTANT: If at anytime your appliance does not seem to be operating as it had,
ALWAYS confirm the mode of operation.
CHOOSE MODE OF OPERATION:
STEP 1 Decide on mode of operation:
Manual Operation Thermostat On/Off or Thermostat Low/High
STEP 2 Find mode of operation:
(For this example we desire the Manual Operation Mode.)

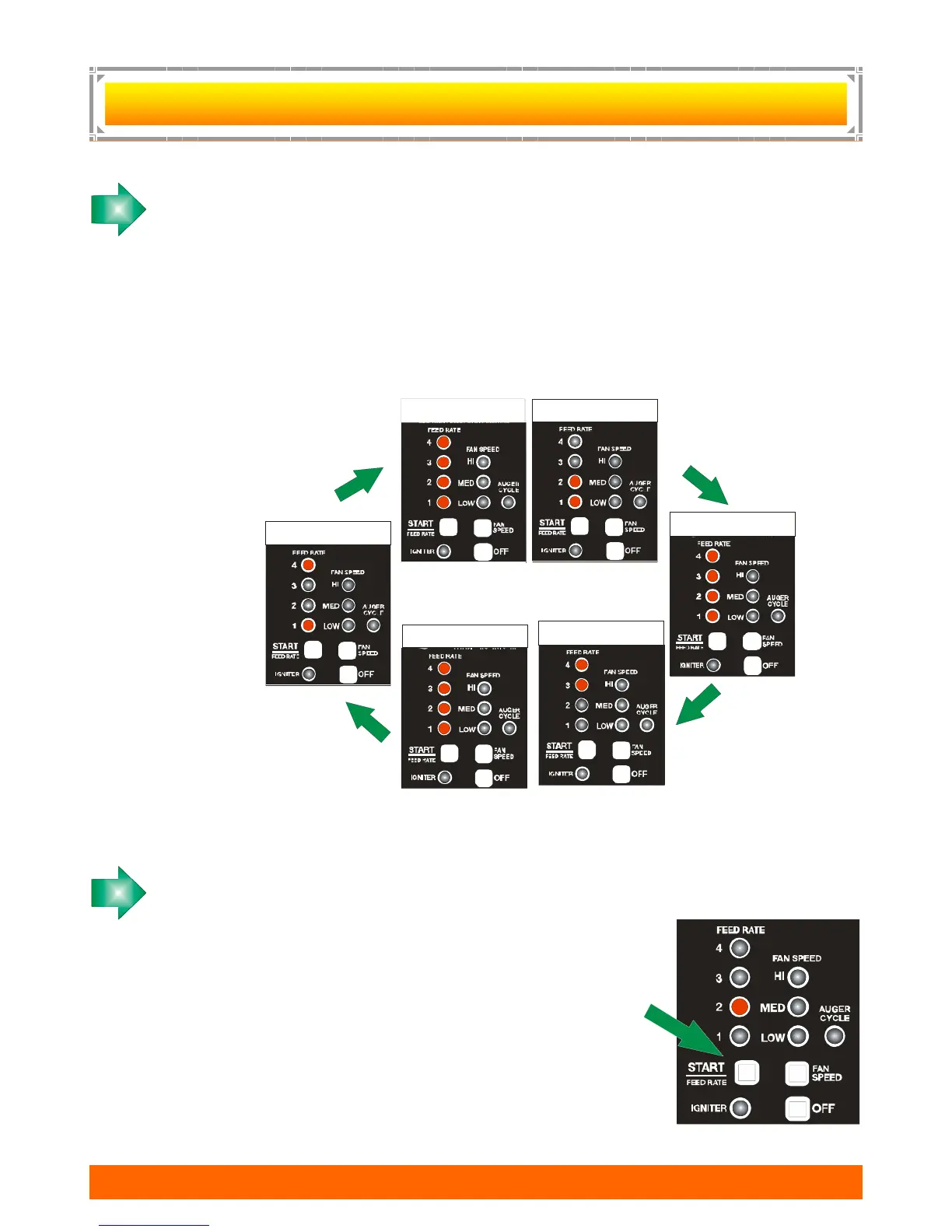

Press and hold in the OFF button, while you are holding in the off button the following cycle will
occur: All the feed rate lights will be solid, then 2 of the feed rate lights will flash together
Step 3
Set mode of operation:
To choose the mode you want the board to operate in, simply let go of the OFF button when the
proper lights flash.
Then press the START touch pad to activate the setting.
All 4 Lights
Feed Rates 1 & 2
All 4 Lights
All 4 Lights
Feed Rates 3 & 4
Feed Rates 1 & 4
Only be concerned with the
lights. All others do not effect the mode
selection process.
FEED RATE
NOTE: The Starting Point of the
cycle, depends on what
mode the control was in.
Thermostat
On / Off Mode
Thermostat
Low / High Mode
Manual
“You are in
control”
OPERATING IN MANUAL MODE:
TO START
Step 1 Press the START touch pad. It’s that easy!
The control board goes through the entire start up automatically
- Convection (heating) fan will start
(if a speed was selected before)
- The 300 watt Auto-Igniter will begin to glow and the IGNITER
LED will be solid.
- The AUGER CYCLE LED will go solid for 3 seconds, indicating
signal is being sent to the Auger motor.
- Combustion (exhaust) fan will start and operate at full speed for
60 seconds, then the Voltage regulator will adjust fan
Lights may be difficult
To see from an angle.
