Cautions:
Do not try to operate your stove with viewing door open. Pellets will not feed under these
circumstances and a safety concern may arise from sparks or fumes entering room.
If you are not drawing combustion air from outside, care must be taken to allow for adequate air
make up, to avoid possible room air starvation when stove or other exhaust fans are in
operation.
It is highly recommended that you install a high quality smoke detector as well as a carbon
monoxide gas detector in the room where stove is installed. Care should be taken to make
sure detectors are in working order at all times.

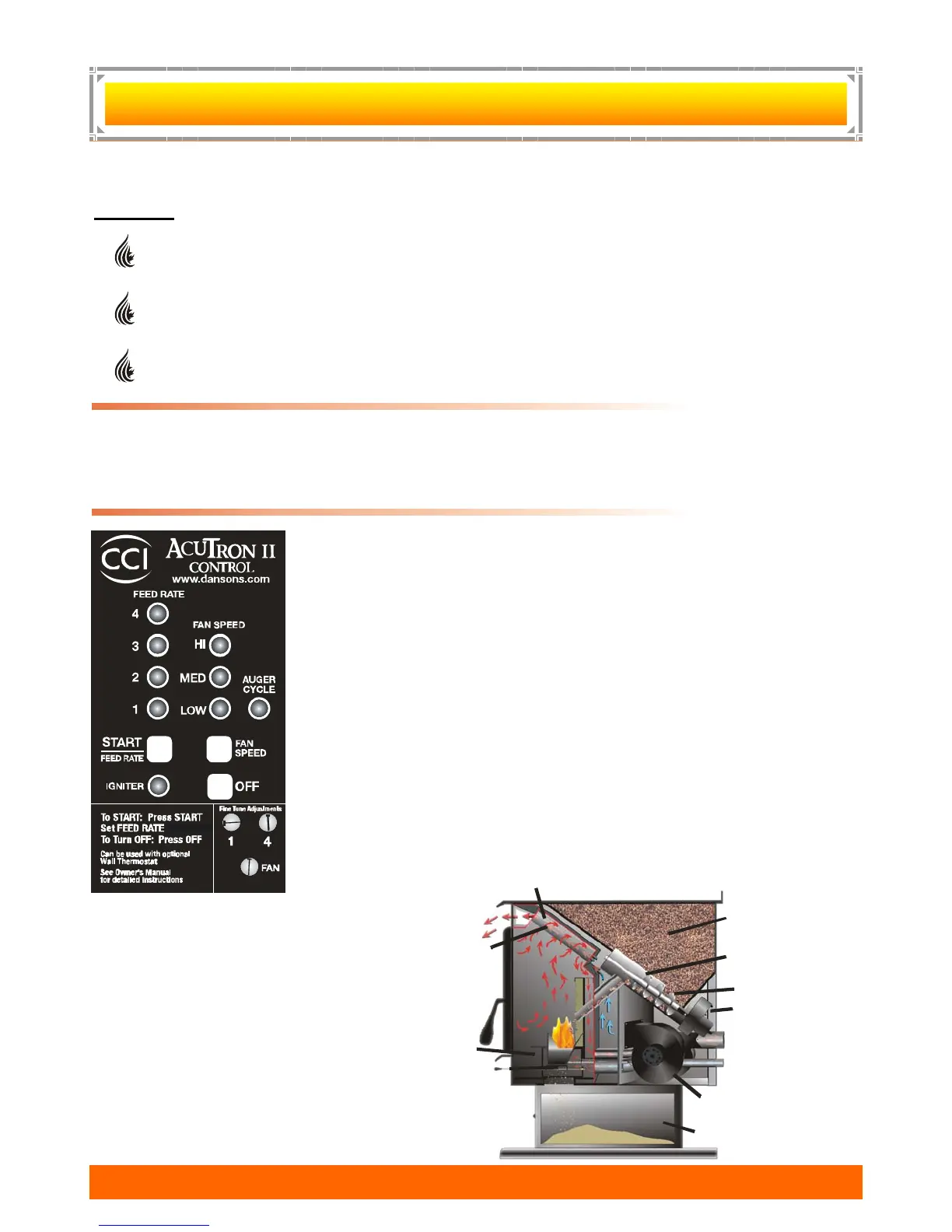

Fuel in the form of wood pellets or is stored in the hopper. An auger delivers the
pellets to the burn grate. The fuel rate, or heat output, is set by adjusting the feed
rate touch pad, (settings 1 to 4). A fan provides combustion air to the burn grate.
The amount of combustion air in the burn grate is adjustable and automatically
changes as the fuel rate changes. The higher the fuel rate, the larger the amount
of combustion air and visa versa. The fuel burns in the burn grate, producing
heat. Some heat radiates out the front of your stove. The majority of the heat
passes around the heat exchange tubes and air plenum around the firebox and is
then moved into the room by the room air fan. A small amount of heat must pass
out the exhaust of your stove, along with gases, into the atmosphere.
Your stove's heat output can be adjusted from setting 1-4, through the FEED
RATE touch pad, to vary your heat output from Low to High. The room air fan can
be manually adjusted through the FAN SPEED to run faster or slower to corre-
spond to the amount of heat being produced. The room air fan is also on a limit
switch, controlled to run on high when the stove reaches higher temperatures and
then resume the speed you had selected once it cools to a lower temperature.
Your stove can run efficiently over
extended periods of time and at dif-
ferent heat output levels as long as
the fuel supply is uninterrupted and
timely cleaning and maintenance
is preformed. An example of how
improper cleaning effects operations
is; the exhaust pressure switch will
shut the pellet supply off and your
stove will shut off if the exhaust sys-
tem becomes plugged.
The operations and maintenance of your PelPro Series of multi-fuel appliance are unique and should not
be considered to be like a wood, coal, gas, electric, propane or oil heater, stove or appliance.
FUEL CONSIDERATIONS
Your PelPro Series of Multi-fuel appliance is designed to burn the following:
1. Wood pellets that comply with the Pellet Fuel Industries standards.
2. A combination of up to 50/50 Wood Pellet and Shelled Corn
PelPro Appliances www.pelprostoves.com 6
as desiredas desired
