REPAIR PARTS
Standard
Injector
OO-21 AA-21 BB-21 CC-21 DD-21 EE-23 FF-23 GG-21
High Pressure
Injector
OO-326 AA-328 BB-330 CC-332 DD-334 EE-336 FF-338 GG-340
Low Pressure
Injector
OO-526 AA-528 BB-530 CC-532 DD534 EE-536 FF-538

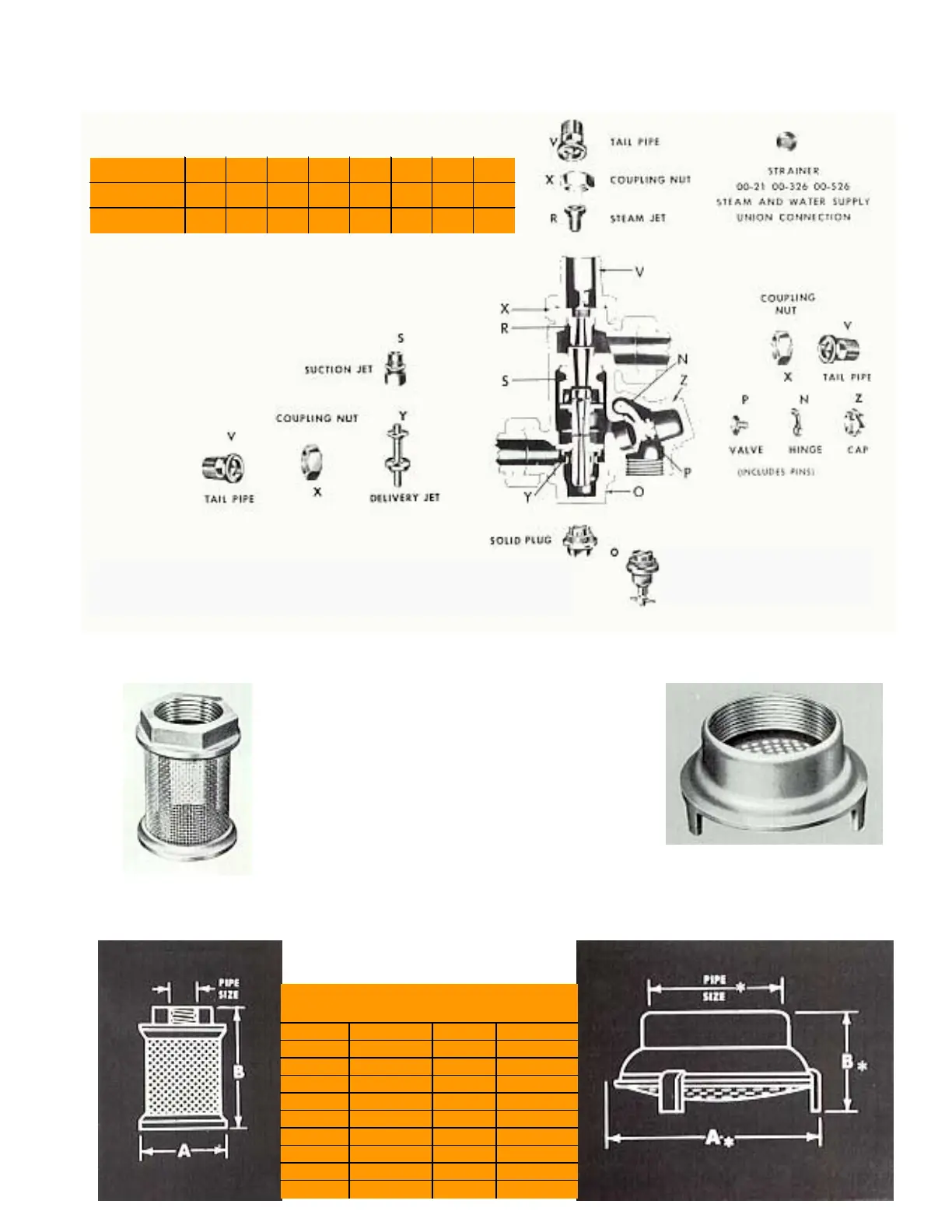

Steam jet, suction jet and delivery jet are not interchangeable on various models,
therefore you must supply us with serial number of injector which is stamped on
nameplate above overflow connection.
PLUG WITH RELIEF VALVE USED
ON
3/8” TO 1 1/4” HIGH AND LOW
BRASS STRAINERS
These large-capacity strainers are furnished with every injector
to prevent passageways in the jets from becoming stopped up
by foreign matter. Sizes 2” and l arger are the flat type shown
at right.
Pipe size A B Wire Mesh
3/8 1 11/16 dia 2 1/4 30
1/2 1 11/16 dia 2 1/4 30
3/4 1 11/16 dia 2 5/16 30
1 1 7/8 dia 2 9/16 16
1 1/4 2 3/16 dia 2 9/16 16
1 1/2 2 1/2 dia 2 11/16 16
2* 3 5/8 dia* 1 3/4* 1/8 holes
2 1/2* 4 3/5 dia* 1 13/16* 1/8 holes
3* 4 1/4 sq* 1 13/16* 1/8 holes
DIMENSIONS IN INCHES
