STEP #12

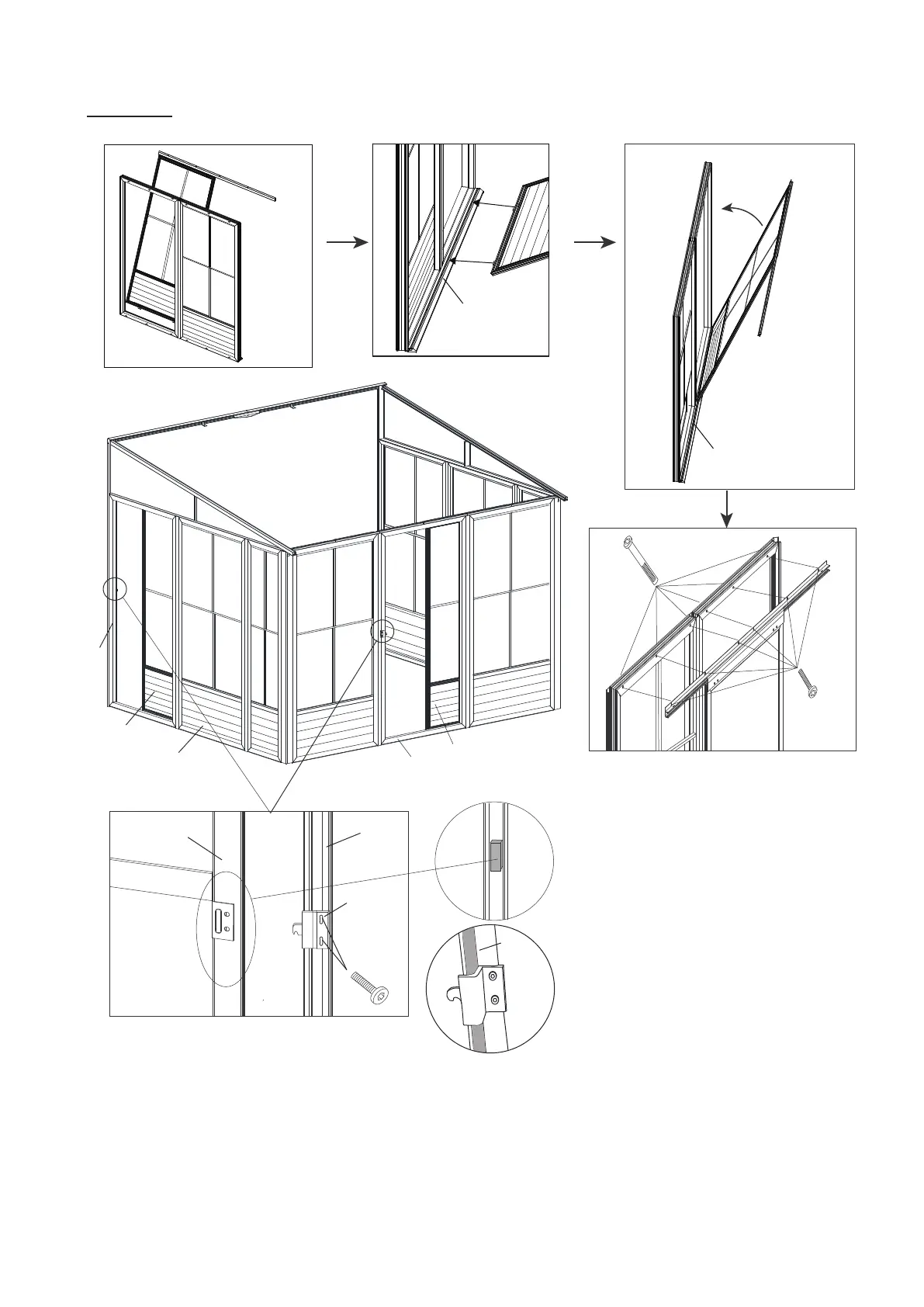

12.1 Put the assembled Sliding Door (C-3) upright, insert the lower end into the Bottom Door
Rail (G-3), and fix the upper end with Bolts (Cc-3- 2/Ww).Make sure to push up the upper door
track (F-3) so that the doors does not rub against the bottom track.
12.2 Fix the Right Door Latch (Dd-R-3) with the Sliding Door Frame by using the
Bolts (Bb-3).
C-3
C-3
C-3
Bb-3
Dd-R-3
D-3
D-3
D-3
F-3
C-3
Cc-3-2
Ww
①
②
③
④
D-3
G-3
B-3
“INSIDE VIEW ”
Remove the small square
here and you can use it.
B-3
B-3
G-3
Dd-R-3
D-3
