Penguin FLORENCE - Page 56

56

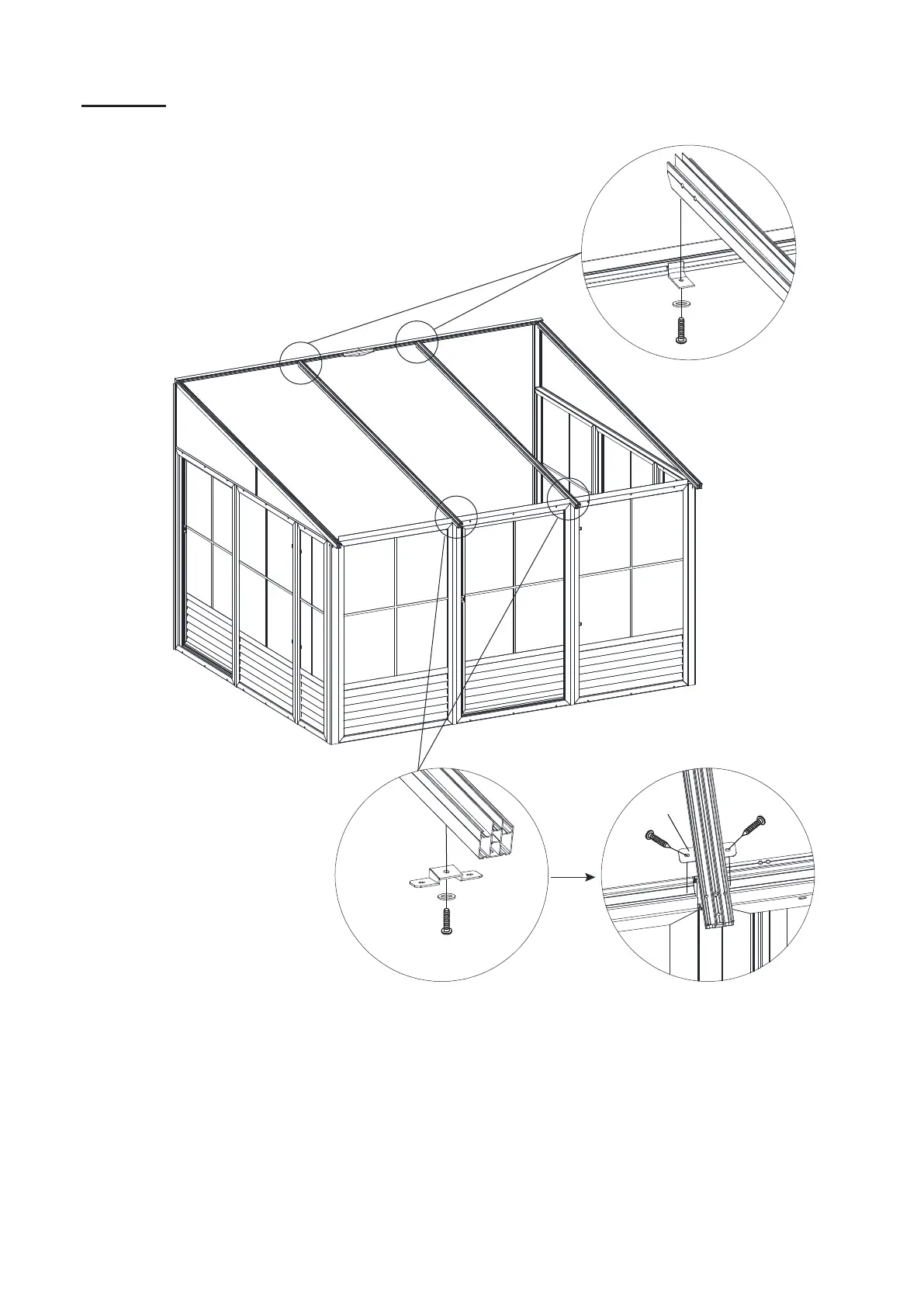

STEP #13
13.Attach the Mounting Bracket (U-3) and the Regular Roof Bar (G) together using the
Bolts (Bb-3), ( Hand Tighten.DO not use power drill.). The upper end of the Regular Roof
Bar (G) is then attached to the Rafter Bracket (O-3) using Bolts (Bb-3), (hand tighten, DO
not use power drill.) The lower end of the Regular Roof Bar (G) is secured between each
panel using Bolts (Z-3).
Bb-3
O-3
G
G
G
Z-3
Z-3
U-3
U-3
G
G
Bb-3
