Penguin FLORENCE - Page 63

63
G
V-3
STEP #20
A1
A1
C1
Please note: The Roof Panels are built up
between each other as shown in the picture.
Y-3
Y-3
A1
C1
A1
F1
Vv-1
Gg-3
Vv-1
Gg-3
Vv-1
Gg-3
Vv-1
Gg-3
V-3
V-3
ML-3/MR-3

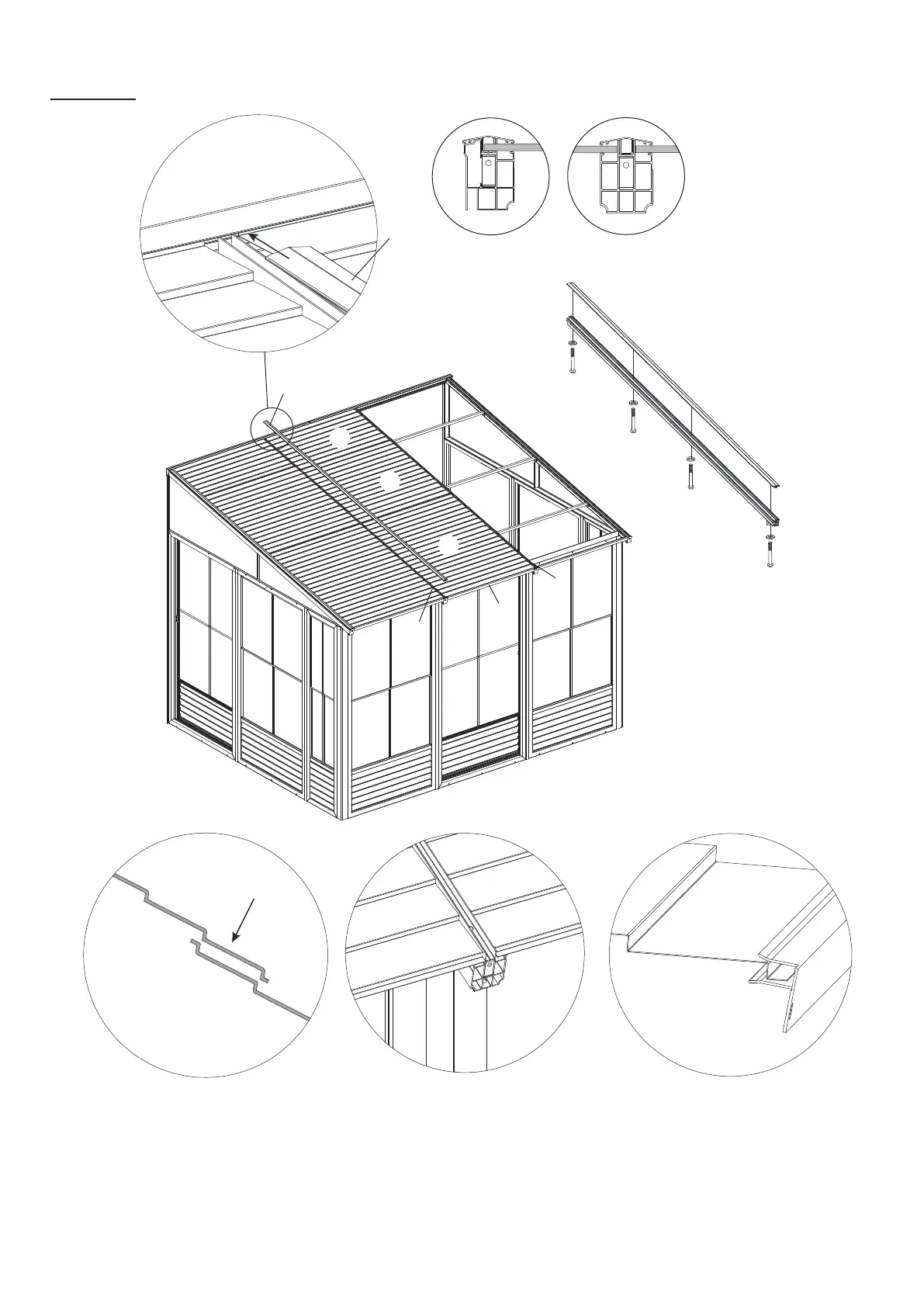

20.2. Attach the Roof bar Pressboard (V-3) by inserting one end into the Wall Track (ML-3) and
connecting it to the Rafters (G), securing it with Bolts (Vv-1) and Washers (Gg-3).
20.1. Attach Slide Roof Panels (A1/C1) to Rafters (G) in order.
G
G
V-3
V-3
F
G
