STEP #21
V-3
V-3
V-3
F
F1G
G
Please note: The Roof Panels are built up
between each other as shown in the picture.
X-3
X-3
A
C
A
V-3
V-3
ML-3/MR-3

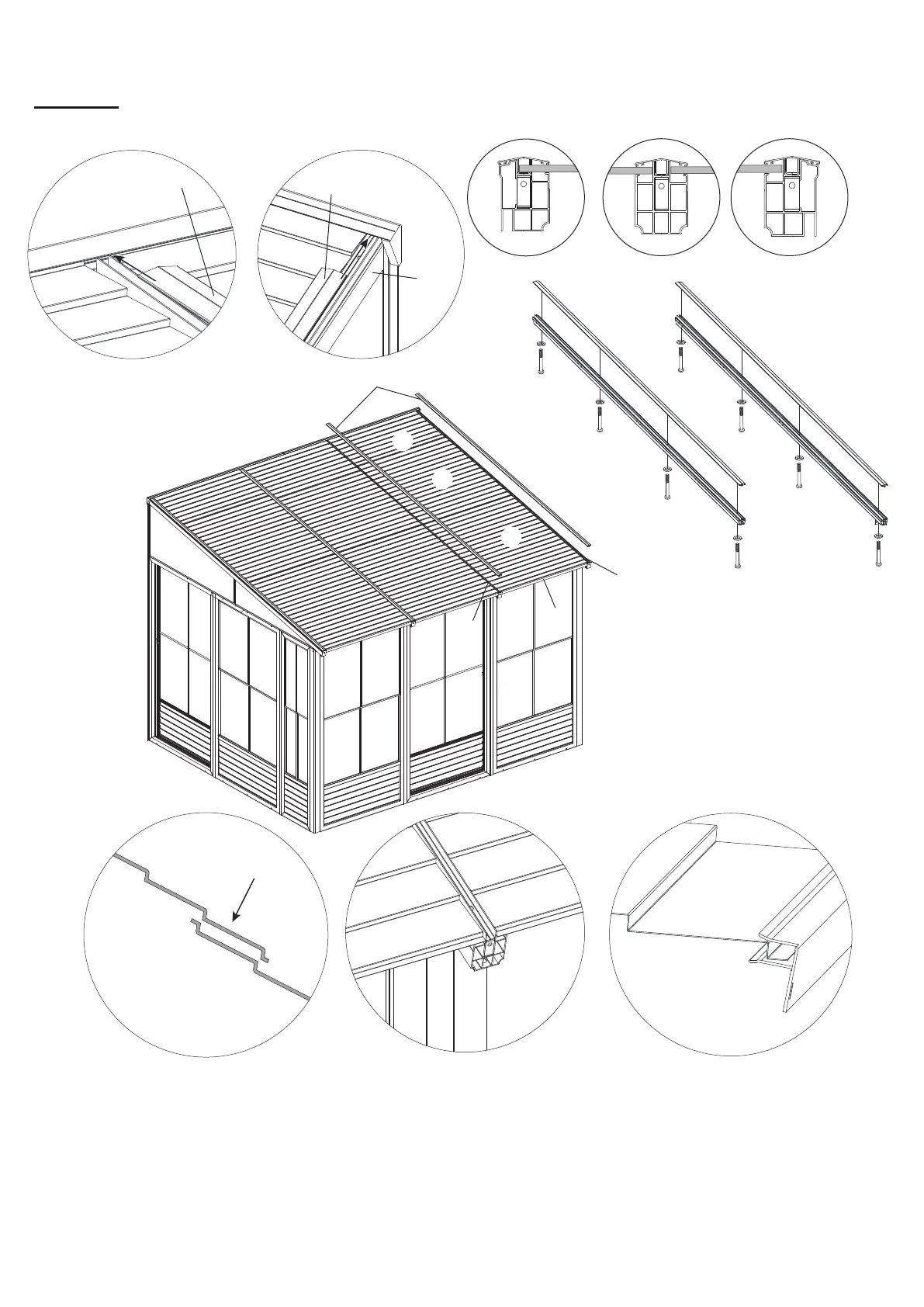

21.2. Attach the Roof bar Pressboard (V-3) by inserting one end into the Wall Track (MR-3) and
connecting it to the Rafters (G), securing it with Bolts (Vv-1) and Washers (Gg-3).
21.1. Attach Slide Roof Panels (A/C) to Rafters (G/F1) in order.
V-3
F1
F1
F1
V-3
V-3
G
G
Vv-1
Gg-3
Vv-1
Gg-3
ML-3
MR-3
C
A
A
