PennBarry Domex - Electrical Connections; Wiring Instructions

1401 North Plano Road, Richardson, Texas 75081
Phone: 972-234-3202 | Fax: 972-497-0441

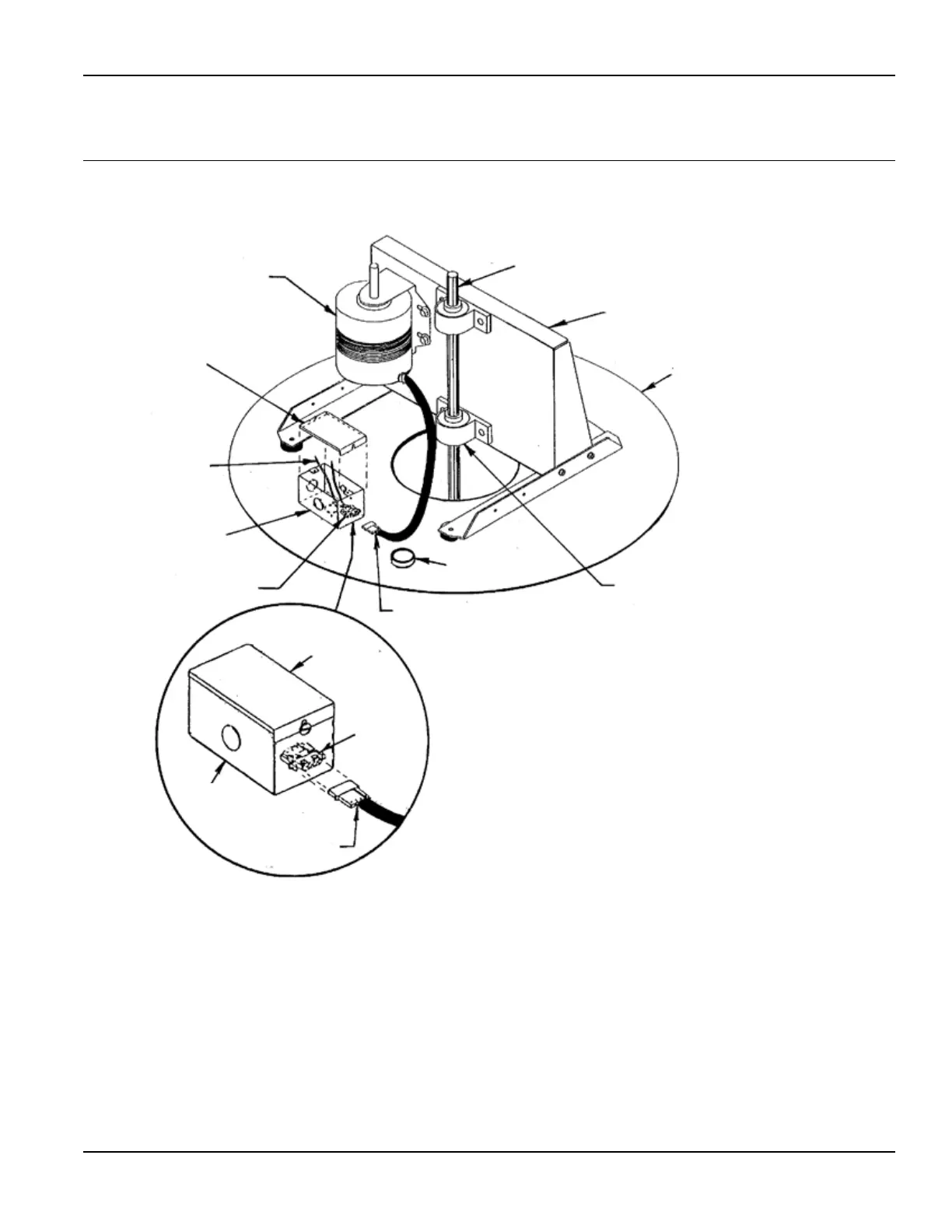

PENNBARRY 10
O.D.P. MOTOR
JUNCTION BOX
COVER
POWER LEADS
8” LONG
CONDUIT
GUIDE
WIRING HARNESS WITH CONNECTOR
JUNCTION
BOX
COVER
4 TERMINAL
SOCKET
BEARINGS
TOP PLATE
JUNCTION BOX
FAN SHAFT
MOTOR SUPPORT
PLATE
4 TERMINAL
SOCKET
WIRING HARNESS
WITH CONNECTOR
(FROM MOTOR)
JUNCTION
BOX
ELECTRICAL CONNECTIONS
Connect motor per nameplate to correct power supply. Install
all wiring, protection and grounding in accordance with National
Electrical Code and local requirements. Follow all local electrical
and safety codes, as well as the National Electrical Code (NEC)
and the Occupational Safety and Health Act (OSHA).
WIRING INSTRUCTIONS
CAUTION: When bringing power lines up, power MUST be off.
1. Bring power lines up to motor compartment thru conduit guide.
2. Remove junction box cover so that power leads are exposed.
3. Remove one knock-out, attach connector and run power lines
from source into junction box.
Operation & Maintenance Manual
Domex, Centrifugal Roof, Direct & Belt Drive Exhausters
4. Terminal socket has two 8” long pigtails already stripped. Make
connection to power lines using proper size wire nuts and fold
wires back into box.
5. Replace junction box cover and secure in place with screw.
6. Plug harness connector (from motor) into terminal socket at end
of junction box. Unit is now ready to test.
This drawing illustrates our understanding of order requirements. When approved, it represents details for fabrication, as such, PennBarry will not be responsible for revisions in the eld or other
changes after release for fabrication. Published and protected by PennBarry, Richardson, TX. All rights reserved. May not be reproduced partially or in full without permission from the publisher.
No rights conveyed to manufacture partially or in full, use or sell either the method of construction represented or any invention in any way related thereto.
Wiring Harness - Disconnect Device
O.D.P. Motors (ITW Harness) 115/220 Single Phase
