PENNBARRY 9
*NOTE- ALL WIRING MUST BE PROVIDED BY A
LICENSED ELECTRICIAN FAMILIAR WITH
EXPLOSION PROOF WIRING PRACTICES AND
REGULATIONS, USING COMPONENTS
APPROPRIATE TO THE SPECIFIC INSTALLATION
AND N.E.C. AND/OR LOCAL CODES.
CLOSE NIPPLE AND UNION DIRECTLY
OUT OF MOTOR.
N.E.C. SPECIFIES A SEAL WITHIN 18”.
PUNCH OR DRILL HOLE FOR CONDUIT
PATH. HOLE MUST BE SEALED OR
CAULKED TO PREVENT WATER ENTRY.
RIGID CONDUIT OR I.M.C. (INTERMEDIATE
METAL CONDUIT) PER N.E.C. AND/OR
LOCAL CODES. (BY OTHERS)
DX08Q DX10Q DX11Q DX13Q DX16Q
L
DIA.
20 7/8 20 7/8 20 7/8 21 7/16 28 1/2
H
EXP. MOTOR
18 19 19 19 26 11/16
All dimensions in inches.
† Outside dimension of curb should be 1 1/2” less than ‘E’ dimension
Operation & Maintenance Manual
Domex, Centrifugal Roof, Direct & Belt Drive Exhausters

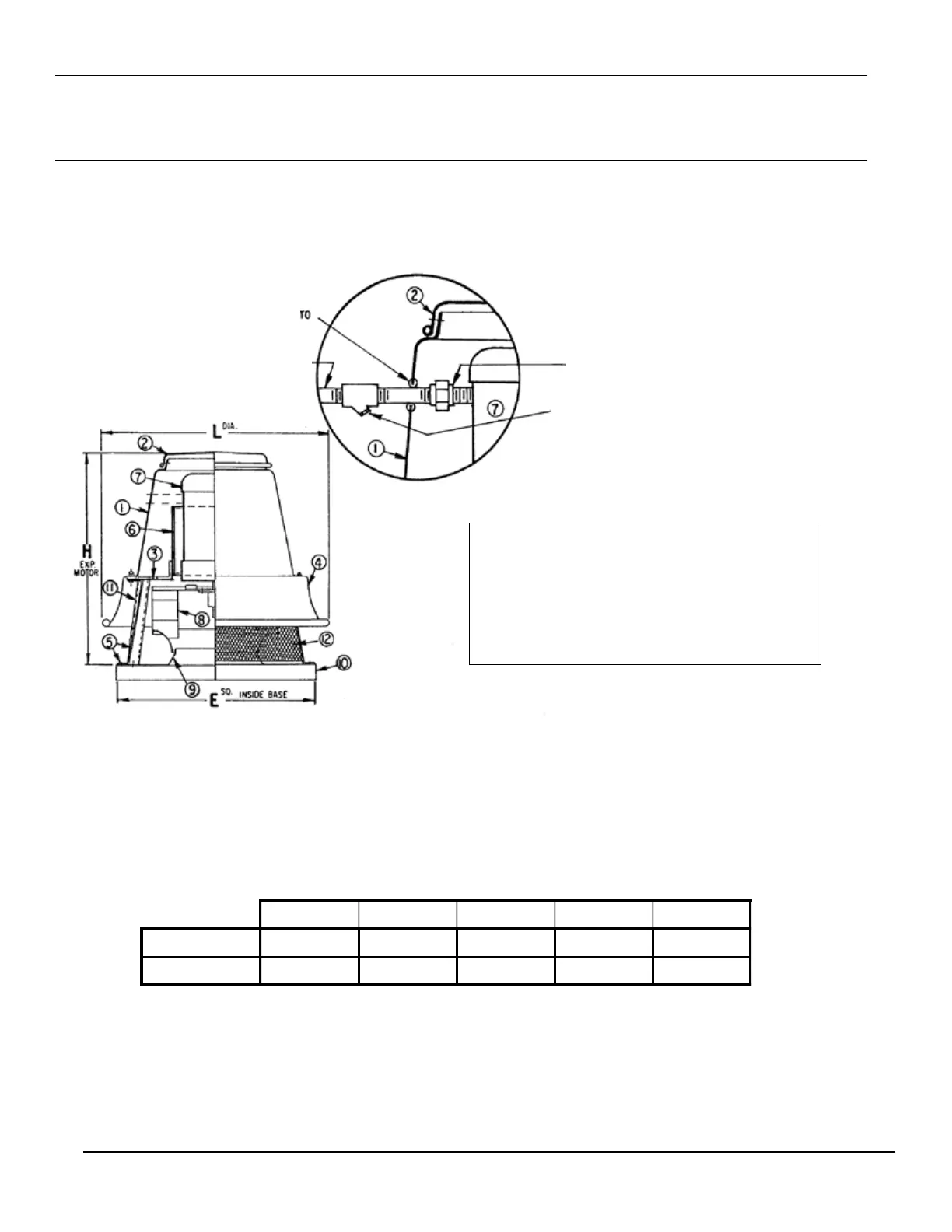

Direct Drive - Explosion Proof Motor
Legend
6. Motor Mounting Plate
7. Motor (Exp. Motor)
8. Centrifugal Fan Wheel with Cooling
Vanes
9. Spun Venturi
Dimensional Data
1. Motor Dome
2. Motor Hood Top (For Exp. Motor)
3. Top Plate
4. Discharge Apron
5. Structural Support Braces
10. Mounting Base
11. Conduit Guide (Not for Exp. Motor)
12. Aluminum Bird Screen
Material: Spun Aluminum Housing
This drawing illustrates our understanding of order requirements. When approved, it represents details for fabrication, as such, PennBarry will not be responsible for revisions in the eld or other
changes after release for fabrication. Published and protected by PennBarry, Richardson, TX. All rights reserved. May not be reproduced partially or in full without permission from the publisher.
No rights conveyed to manufacture partially or in full, use or sell either the method of construction represented or any invention in any way related thereto.
Spun Aluminum Centrifugal Roof Exhauster
