MagicFalls with LightCascade Technology LED Light Installation and User’s Guide MagicFalls with LightCascade Technology LED Light Installation and User’s Guide

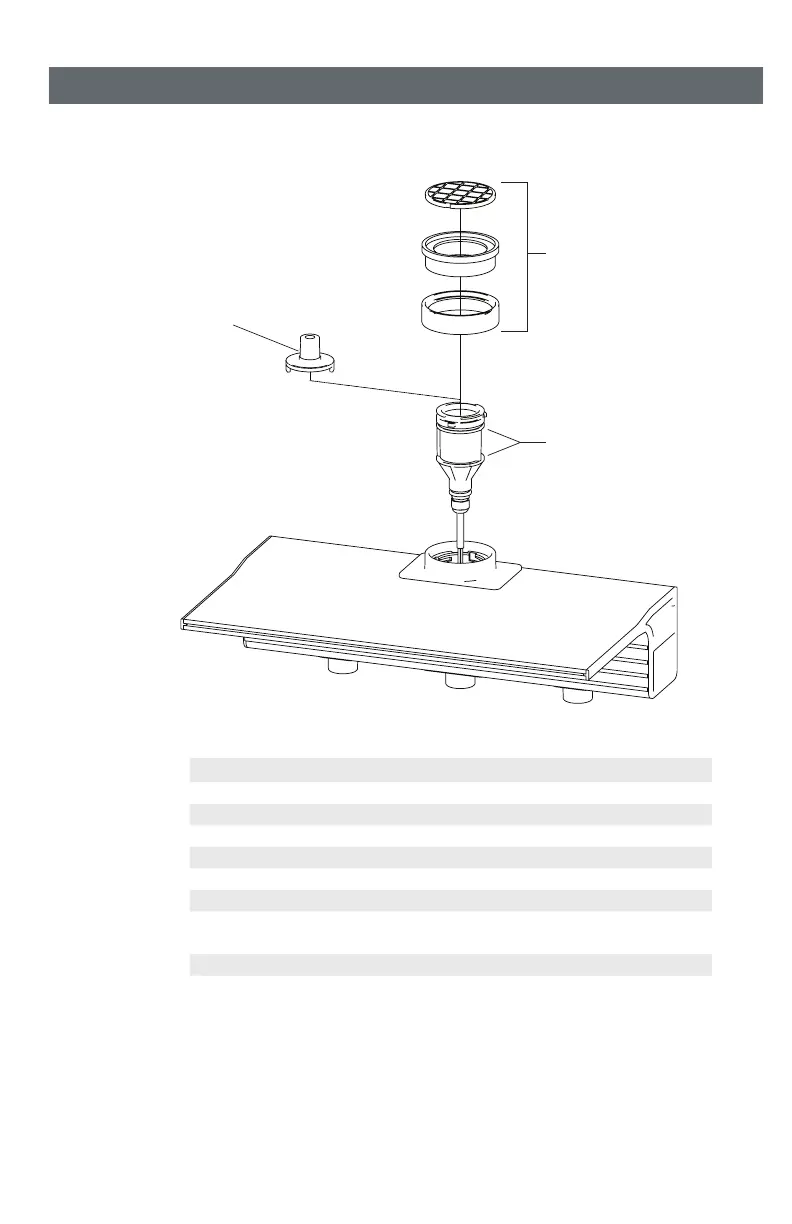

REPLACEABLE PARTS LIST

558

Item Part No. Description

MAGI STREAM LAMINARS

1 580101 White Deck Lid and Collar

1 580097 Tan Deck Lid and Collar

1 580105 Gray Deck Lid and Collar

1 580109 Dark Gray Deck Lid and Collar

1 580113 Black Deck Lid and Collar

2 580096 Light Engine Installation Tool

3 580090 Light Engine Top And Bottom O-Rings

580004 Rock Trap (not shown)

2313 Internal Support Extractor Tool (not shown)
