MagicFalls with LightCascade Technology LED Light Installation and User’s Guide MagicFalls with LightCascade Technology LED Light Installation and User’s Guide

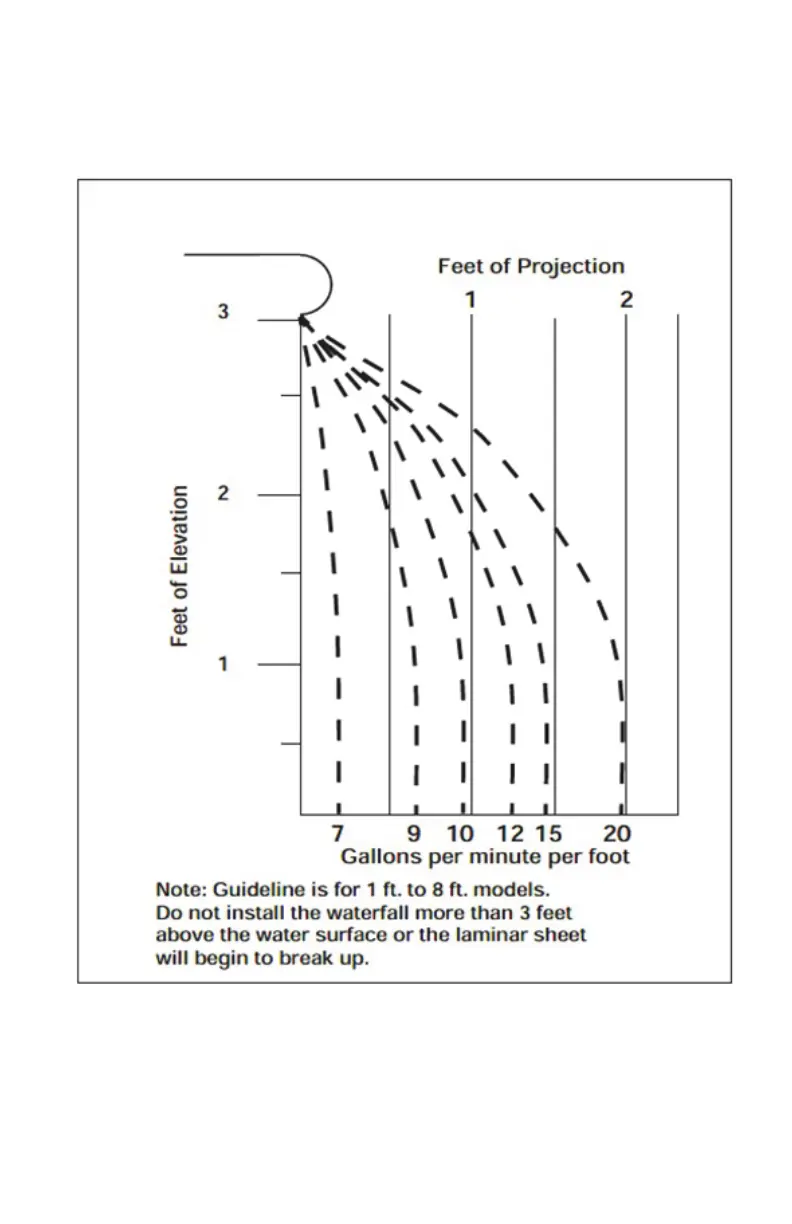

WATER FLOW REQUIREMENT CHART

Use the Water Flow Requirement Chart below to determine the waterfall effect

projection for 1 ft. to 8 ft. models.

WATER FLOW REQUIREMENT CHART
