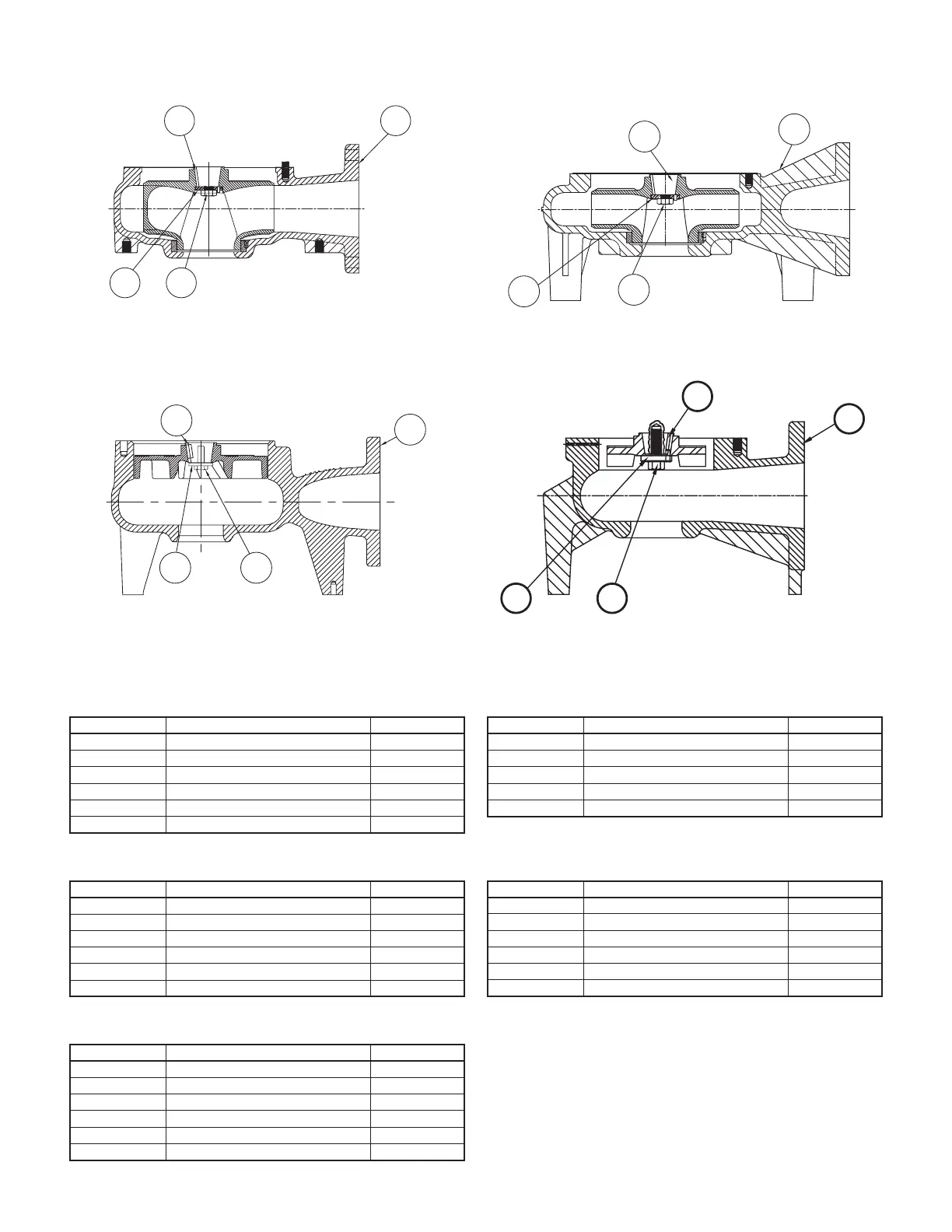

WET END PARTS
C4
C2
C1
C3
C3
C1
C4 C2
4RH/4RHX – 1150/1750 RPM 4RH/4RHX – 3450 RPM
4VHS/4VHSX, 4VH/4VHX, 6VH/6VHX
C1 C3
C2C4
C1
C3
C2
C4
4VHA/4VHAX
4VHA/4VHAX
Ref. Description Part Number
C1 KEY-SQUARE SST 05818A067
C2 SCREW-CAP 19105A033
C3 CASE-VOLUTE 27049F000
C4 WASHER-RETAINER 23609A003
Replacement Parts VOLUTE WEAR RING 27049F010M
Replacement Parts WEAR RING SCREW 05013A013
4RH/4RHX – 3450 RPM
Ref. Description Part Number
C1 KEY-SQUARE SST 05818A067
C2 SCREW-CAP 19105A033
C3 CASE-VOLUTE 25988D000
C4 WASHER-RETAINER 23609A003
Replacement Parts VOLUTE WEAR RING ---
Replacement Parts WEAR RING SCREW ---
4VHS/4VHSX, 4VH/4VHX
Ref. Description Part Number
C1 KEY-SQUARE SST 05818A067
C2 SCREW-CAP 19105A033
C3 CASE-VOLUTE 22886D000
C4 WASHER-RETAINER 23609A003
Replacement Parts VOLUTE WEAR RING 22712D001A
Replacement Parts WEAR RING SCREW 05013A013
4RH/4RHX – 1150/1750 RPM
Ref. Description Part Number
C1 KEY-SQUARE SST 05818A067
C2 SCREW-CAP 19105A033
C3 CASE-VOLUTE 070801002
C4 WASHER-RETAINER 23609A003
Replacement Parts O-RING 001500581
WET END PARTS LIST
6VH/6VHX
Ref. Description Part Number
C1 KEY-SQUARE SST 05818A067
C2 SCREW-CAP 19105A033
C3 CASE-VOLUTE 23035E000
C4 WASHER-RETAINER 23609A003
Replacement Parts VOLUTE WEAR RING 22712D001A
Replacement Parts WEAR RING SCREW 05013A013
