Pentair MYERS Series User Manual

8
9
2
14
A1
B2
B1
A2
19
15
4
10
11
2
1
20
197A3
18
11
13
17
8
16
6
5
3
7
12
21

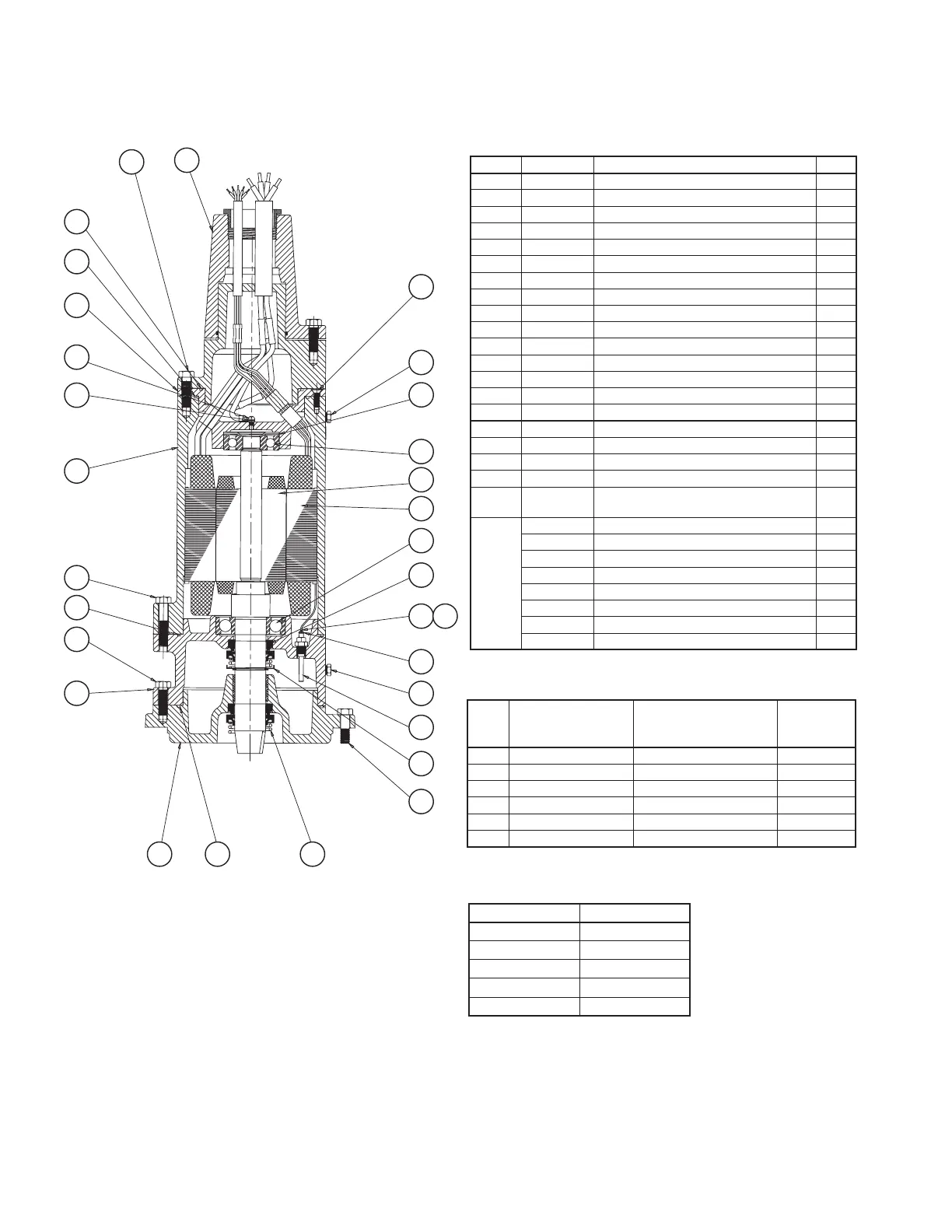

COMMON PARTS LIST
Ref. No. Part No. Description Qty.
1 25343A100 PROBE-SEAL 2
2 05022A092 PLUG-PIPE 1/4" HEX HD. 2
3 05028A002 SCREW-MACH. ST PL 1/4-20 1
4 05434A025 SCREW-MACH. ST Z&D #6-32 2
5 05876A119 O-RING 1
6 05876A120 O-RING 1
7 05876A121 O-RING 2
8 06107A016 WASHER-LOCK 1
9 07597A017 SCREW-MACH. FLT HEX HEAD SOCKET 2
10 12588A017 RING-RET EXTERNAL 1
11 19103A043 SCREW-CAP HEX SST 8
12 19103A045 SCREW-CAP HEX SST 4
13 19103A048 SCREW-CAP HEX SST 4
14 19331A007 WASHER-SPRING WAVE 2
15 22578A100 WIRE-ELECTRODE 2
16 22873C000 CAP-UPPER BEARING 1
17 22874D001 HOUSING-MOTOR 1
18 22882D010 HOUSING-SEAL 1
19 22883A000 SEAL TYPE 21 2
20 22912A000
RESISTOR-33000 OHM 1/2 WATT
(Hazardous location only)
1
21
22872C032 35' CORD ASSEMBLY 10-4 1
22872C035 35' CORD ASSEMBLY 8-4 SOOW 1
22872C036 35' CORD ASSEMBLY 8-4 W 1
22872C034 35' CORD ASSEMBLY 6-4 1
22872C632 35' HAZARDOUS LOCATION CORD 10-4 1
22872C635 35' HAZARDOUS LOCATION CORD 8-4 SOOW 1
22872C636 35' HAZARDOUS LOCATION CORD 8-4 W 1
22872C634 35' HAZARDOUS LOCATION CORD 6-4 1
Ref. Description
4VHA/ 4VHAX, 4VHS/
4VHSX, 4VH/ 4VHX,
6VH/ 6VHX
4RH/ 4RHX
A1 BEARING-BALL UPPER 08565A032 (1) 08565A032
A2 BEARING-BALL LOWER 08565A026 (1) 25833A002
A3 HOUSING-LOWER SEAL 22884D000 (1) 25991D000
RING-RET EXTERNAL 12558A024 (1) ---
WASHER 05030A214 (1) ---
GASKET-VELLUMOID 05231A080 (1) ---
MODEL SPECIFIC PARTS LIST
Cap Screw Torque Value
3/8-16 20 ft.-lbs.
1/2-13 43 ft.-lbs.
5/8-11 93 ft.-lbs.
3/4-10 128 ft.-lbs.
7/8-14 193 ft.-lbs.
MOTOR END PARTS

Pentair MYERS Series Specifications

General

Brand	Pentair
Model	MYERS Series
Category	Water Pump
Language	English
