Basic Wiring 2
Step 2: Remove the MCB 109 Option Card

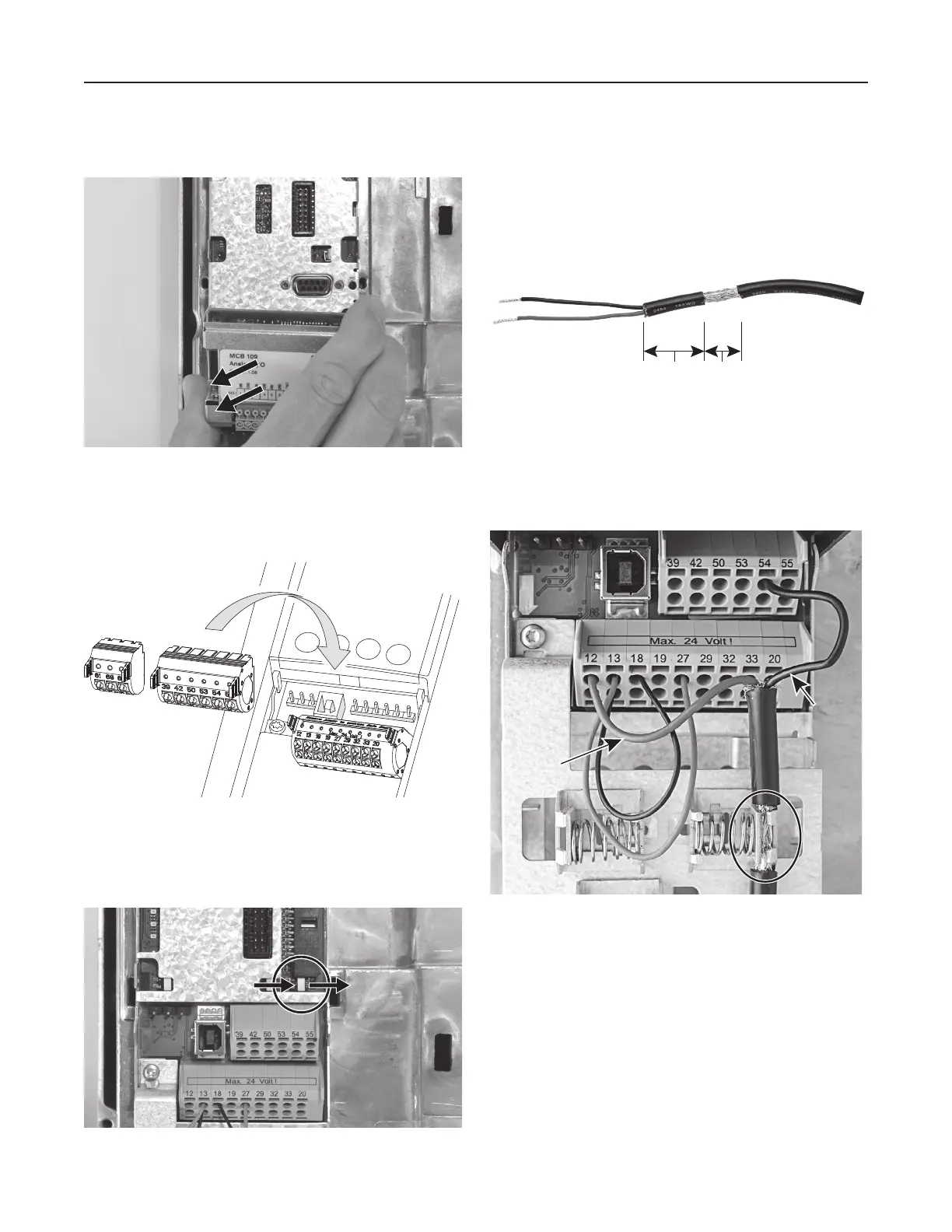

Grasp the card and pull straight out from the drive. See
Figure 4.
Figure 4.
Step 3: Install terminal block.
Retrieve the terminal blocks from the Accessory Bag and
install as shown. See Figure 5.
Figure 5.
Step 4: Set A54 dip switch
Using a small screwdriver, move the switch to the right. See
Figure 6.
Figure 6.
Step 5: Reassemble the components
Put the components back on the drive. To avoid damaging
the option card and keypad, please use care during the
reassembly process.
Prepare Transducer Cable
Remove insulation to expose cable shielding. See Figure 7.
Cut off green wire (if applicable).
1-1/2”
40 mm
5/8”
16 mm
Figure 7.
Wire the Pressure Transducer
The Black wire goes to Terminal 54. The Red wire goes to
Terminal 12. Clamp the bare spot on the cable to ground the
shielding. See Figure 8.
Black
wire
Red
wire
Figure 8.
Install Jumper Wires
Install an 18 - 22 AWG Jumper wire between Terminal 13
and Terminal 27. Install a second Jumper wire between
Terminal 13 and Terminal 18. See Figure 8.
