LEGEND® II INSTALLATION MANUAL
1. Tips on Hose Cutting for Larger Pools.
If the hose is short of the farthest end of the pool,
add an additional section of hose (Part # LX17), one
Swivel (Part # LX19), two Mender Nuts w/O-Rings
(Part # LX20), and one Hose Float (Part # LXD10).

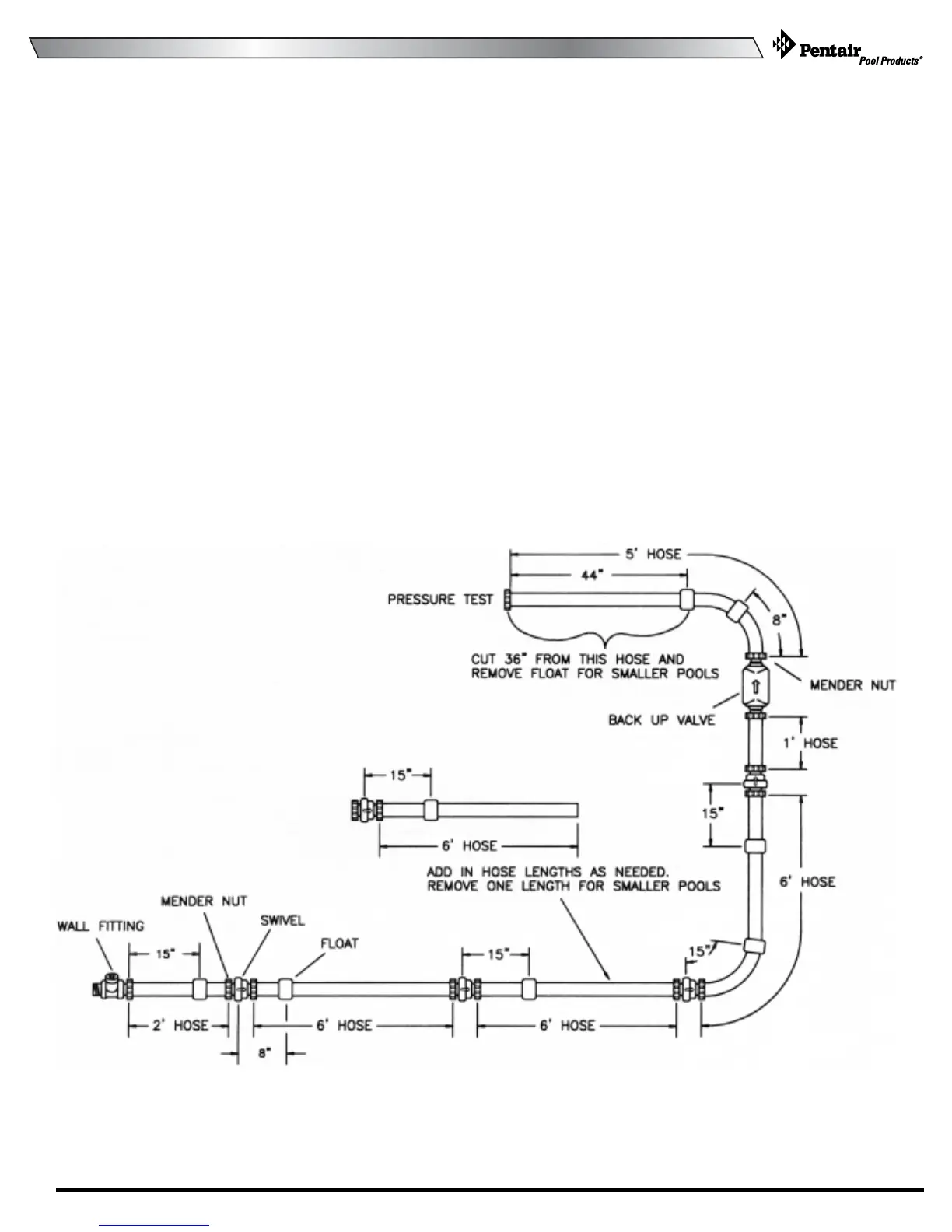

See diagram below. Re-measure and follow guide
on page 3-4.
TIPS FOR CUTTING HOSE IN A SMALL POOL,
AND FOR ADDING HOSES FOR LARGE POOLS
1. Tips on Hose Cutting for Smaller Pools.
If the hose hangs over the deck more than 9 ft. or the
pool is less than 6 ft. deep and narrow, cut 36 in. off
the 5 ft. section hose at the end of the feed hose and
remove one float. Then remove one 6 ft. hose (see
diagram), 1 swivel and 2 mender nuts. Re-measure
and cut hose according to the guide on page 3-4.
