Pentax IQZoom EZY-S - Page 17

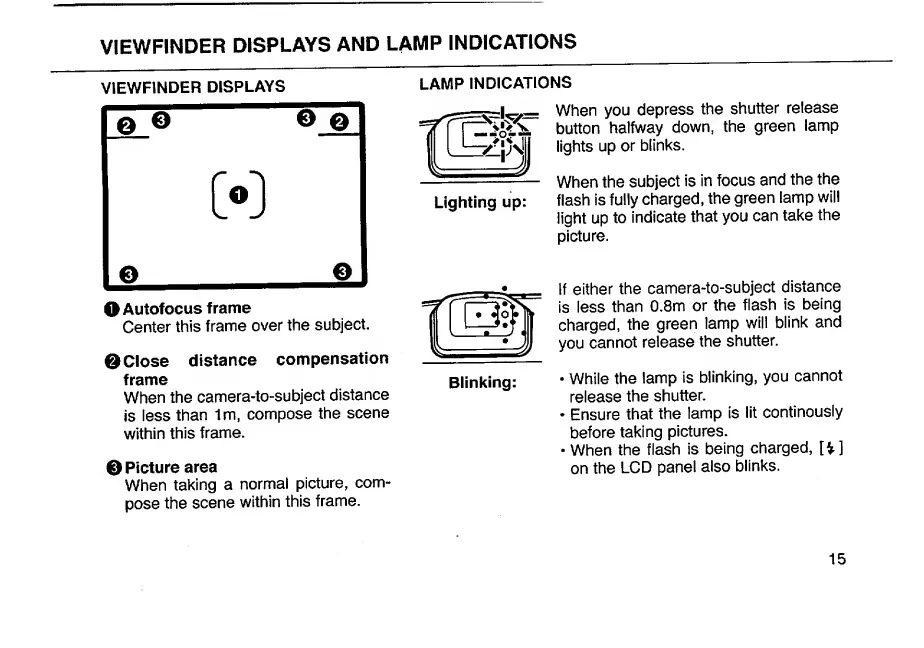

VIEWFINDER DISPLAYS AND LAMP INDICATIONS
VIEWFINDER DISPLAYS
O Autofocus frame
Center this frame over the subject.
0 Close distance compensation
frame
When the camera-to-subject distance
is less than 1m, compose the scene
within this frame.
0 Picture area
When taking a normal picture, com¬
pose the scene within this frame.
LAMP INDICATIONS
Lighting up:
When you depress the shutter release
button halfway down, the green lamp
lights up or blinks.
When the subject is in focus and the the
flash is fully charged, the green lamp will
light up to indicate that you can take the
picture.
Blinking:
If either the camera-to-subject distance
is less than 0,8m or the flash is being
charged, the green lamp will blink and
you cannot release the shutter.
• While the lamp is blinking, you cannot
release the shutter.
• Ensure that the lamp is lit continously
before taking pictures.
• When the flash is being charged, [i]
on the LCD panel also blinks.
15
