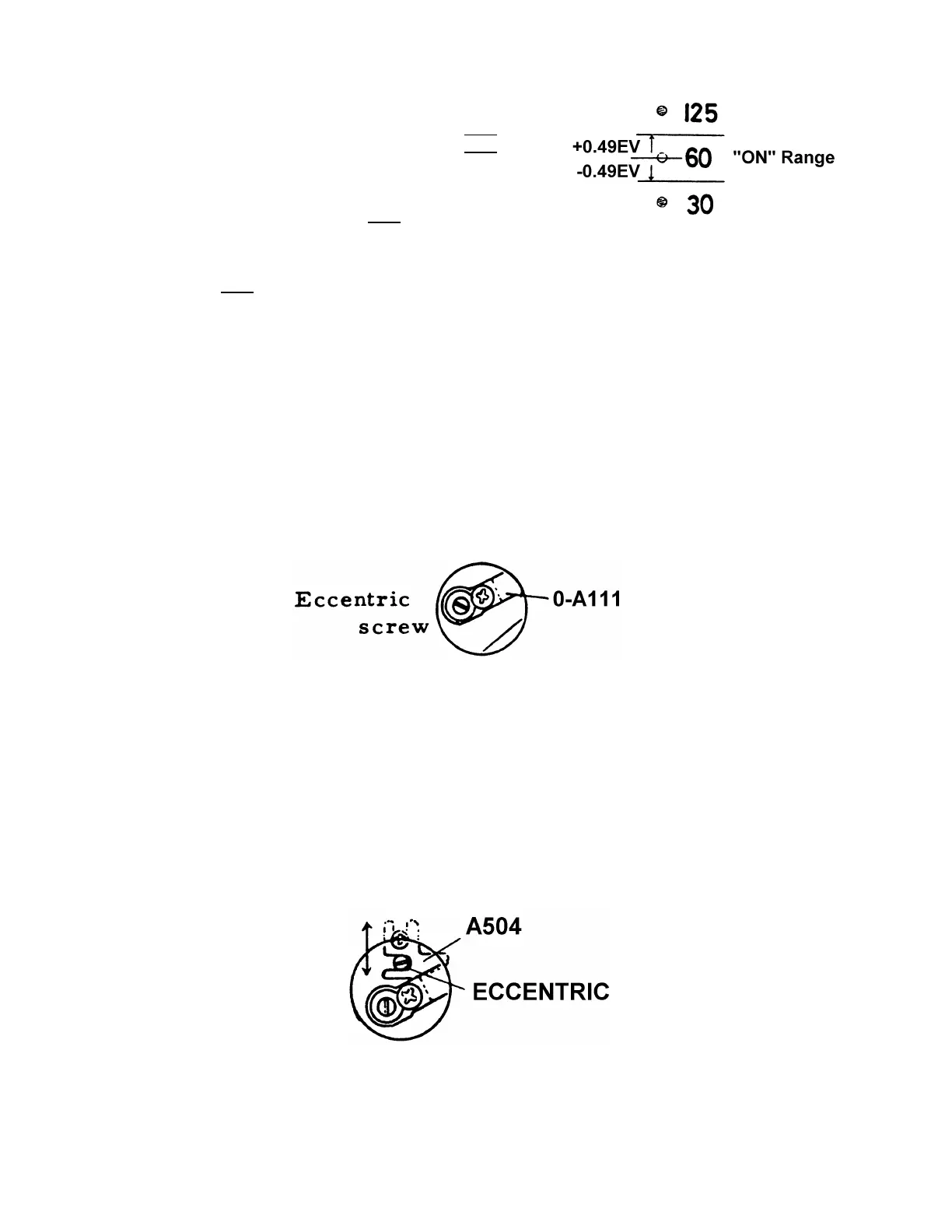

b) LED indication adjustment
High EV (EV12), EV16) - VR-B
Low EV (EV8) - VR-C
c) Battery checker - VR-D
2.45V - Turning on and off (flickering)
2.55V - Turning on
d) VR-E is prohibited to adjust
29. Counter indication (C15) - (A300)
30. Top cover
(A131) - (A300)
Set shutter dial at "B"
Shutter restriction lever is set at left (viewing from back)
Put on top cover softly and fix it turning shutter dial to AUTO position
Four retainer screws
Rewinding parts, shutter dial, winding lever, etc.
31. Shutter stroke adjustment
a) Set shutter dial at "B"
b) 0.2mm clearance is necessary after releasing shutter.
Adjust the shutter stroke with eccentric screw.
32. X Synchronization with self-timer operation at "B"
When camera is operated with self-timer operation at "B" position,
exposure time should be adjusted around 11~13ms.
To adjust the exposure time, bulb actuator plate (A504) should be moved
up or down with eccentric screw.
Also check shutter dial 100X with self-timer operation in the same manner.
If camera is not adjusted as mentioned above, it is impossible to take
pictures with complete synchronization with electronic flash, especially in
the following combination such as shutter dial at 100X, winding lever at
closed position and with self-timer operation.
33. Focusing
