18. Cocked shutter assembly (0-C23) - SW actuator lever shaft.
19. Main SW adjustment = (I200)
When shutter actuator plate is held in "ON" position, 0.2mm clearance is
necessary between longer contact piece of main SW and insulation blue
collar.
To adjust the clearance, bend the shorter contact piece.
When both contact pieces touch each other, and the shorter contact piece
is pulled down, the longer one should be down also as the shorter one does.
If there is not enough tension on the longer contact piece, it may show
uneven shutter speed.
When winding lever is at closed position, 0.2mm clearance is necessary
between both contact pieces.
20. Front board and mirror housing
When the above mentioned parts are installed, shutter block (E000) should
be cocked but not charge mirror housing.
Put on W14 (0.1mm) underneath front board and fasten it with (A132),
pushing down left. Confirm the function of self-timer, shutter mechanism
and mechanical back.
21. Parallax adjustment
22. P.C. board pattern assembly (T100)
(I1) - CNL-D 1.7 x 2.5 - (N5) - T-CNS 1.7 x 5 - (N4) - (N6 x 2)
23. ASA volume assembly (R100) - (A16) - CNL-D 1.7 x 2.5
24. Soldering 13 lead wires
25. Bottom cover assembly (A400) - (A23) - (C117)
26. LED positioning adjustment
27. Temporary top cover and installing ASA dial assembly (0-D11-01) and winding
lever temporarily.

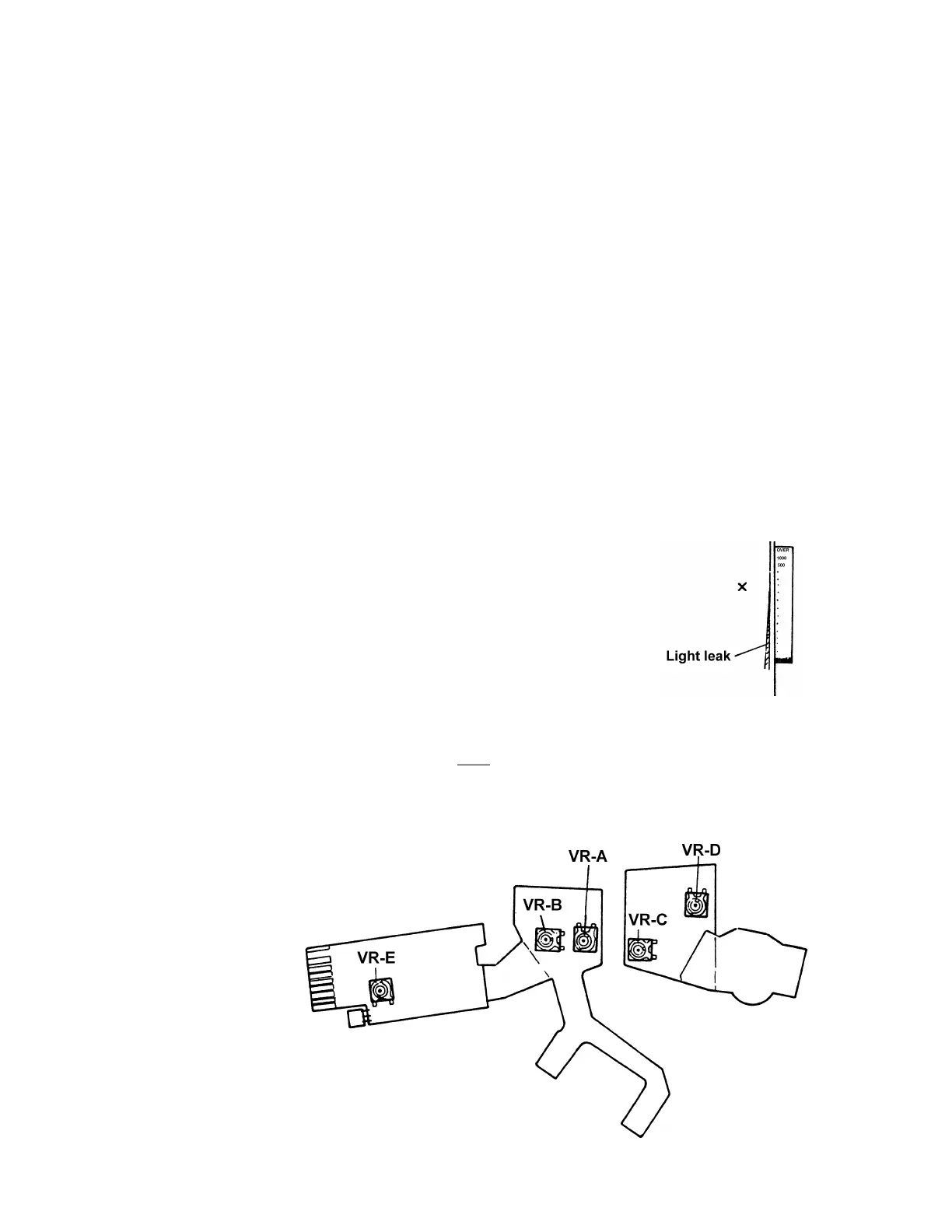

28. a) Shutter speed adjustment - VR-A
ASA 100, X1, f8, (KA-00-1A), 2.8V
EV12 - 1/60
EV16 - 1/1000
EV8 - 1/4
