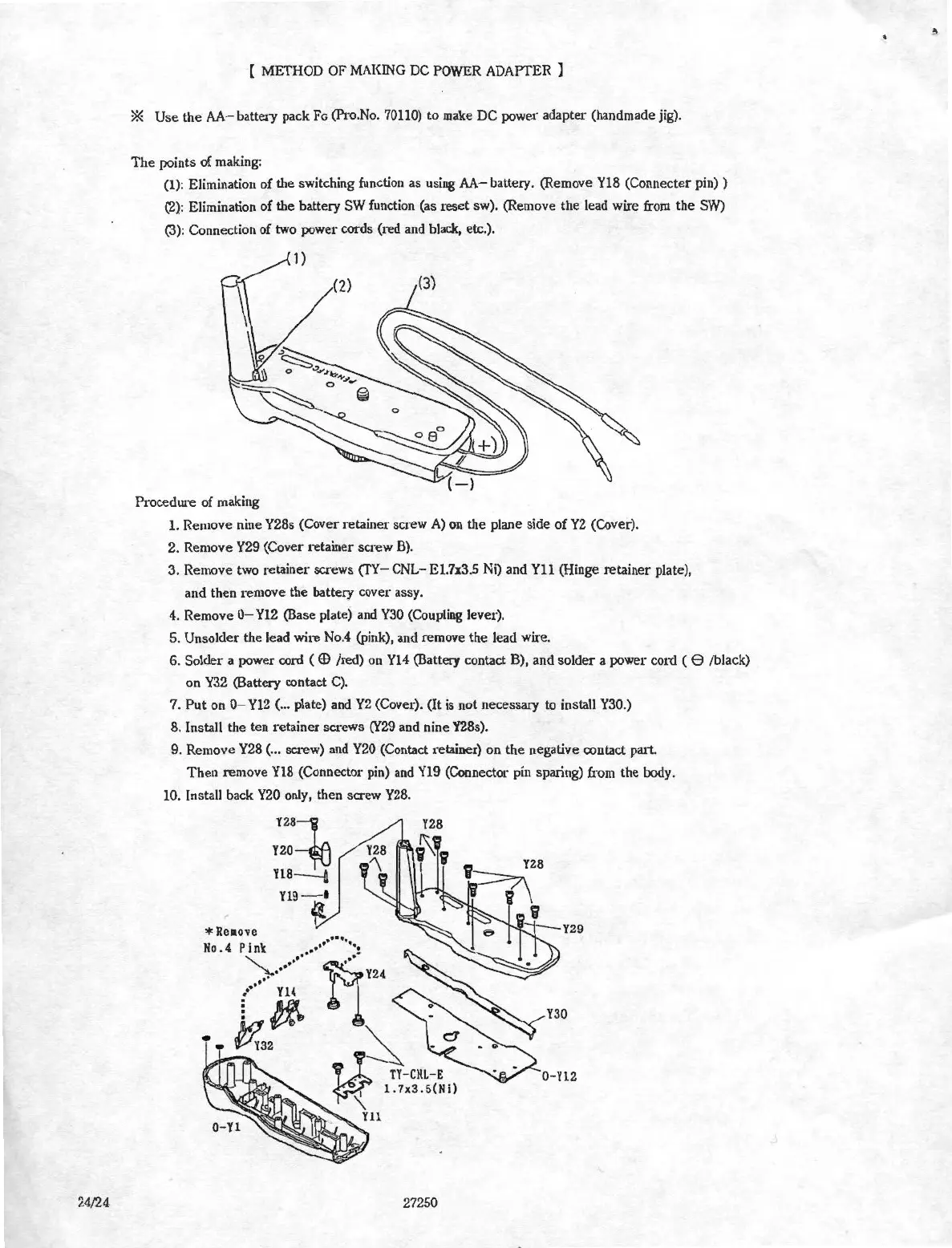

[ METHOD OF MAKING DC POWER ADAPTER )
* Use the AA - battery pack Fe (Pro.No. 70110) to make DC power adapter (handmade jig).
The points of making:
(1): Elimination of the switching function as u sing AA - battery. (Remove Yl8 (Connecter pin) )
(2}: Elimination of the battery SW function (as reset sw). (Remove the lead wire from the SW)
(3): Co nn ection of two power cords (red and black, etc.).
1)
Procedw·e of making
l. Remove ni ne Y28s (Cover retainer sc r ew A) on the plane side of Y2 (Cover).
2. Remove Y29 (Cover retainer screw B).
3. Remove two retainer screws (fY-CNL- El.7x3.5 Ni) and Yll (Hinge retainer plate),
and then r emove the battery cover assy.
4. Remove 0- Y12 (Base plate) and Y30 (Coupling lever).
5. Unsolder the lead wire No.4 (pink), and remove the lead wire.
6. Solder a power cord ( E9 /r ed) on Yl4 (Battery contact B), and solder a power cord ( e /b la ck)
on Y32 (Battery contact C).
7. Put on 0- Y12 ( ... plate) and Y2 (Cover). (It is not necessacy to install Y30 .)
8. Install the ten retainer scr ews (Y29 and nine Y28s).
9. Remove Y28 ( ... screw) and Y20 (Contact retainer) on the negative contact part.
Then remove Yl8 (Con nector pin) and Yl9 (Connector pi n sparing) from the body.
10. Install back Y20 only, then screw Y2 8.
::~
Yl8~
Y19 - •
~
*Re1 ove
N
•
p • L • • • • • •,,,
o ... an .. ··" •
..
;• Y14
"). . ······ fr" Y24
. tfe
. Pv32 ~ . <::!
V y- TY-CNL - E
~ l. 7x3.5( Nl)
Yll
27250
Y29
