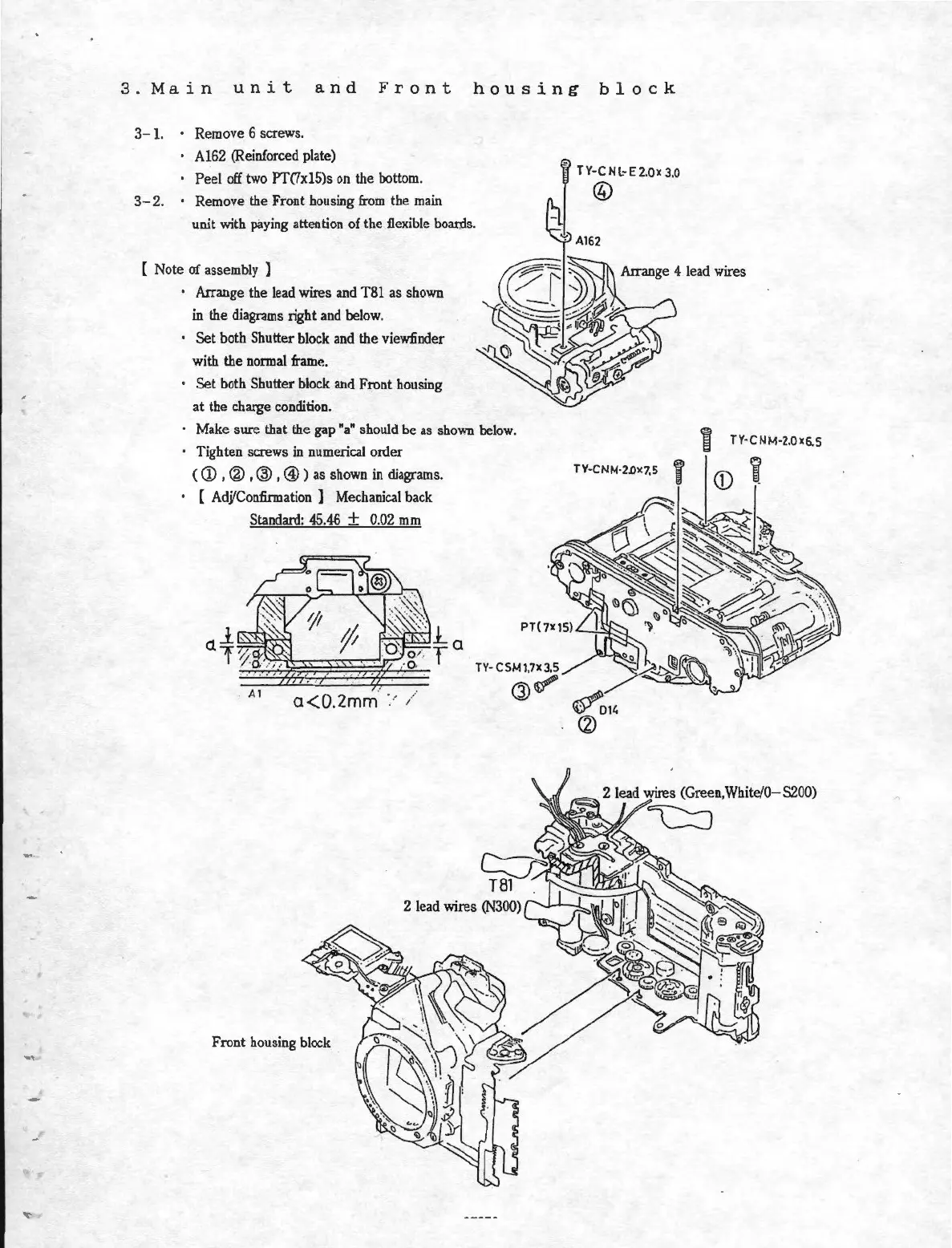

3. Main unit and Front housing blo ck
3- 1. Remove 6 screws.
Al62
(Reinforced plate)
Peel off two PT(lxl5)s on the bott om.
3- 2. Re mov e the Front housing from the main
unit with paying attention of the flexible boards.
[ Note of assembly ]
• Arrange the le
ad wires and T81 as shown
in the diagrams right and below.
• Set both Shutter block and the viewfinder
with the
nonnal frame.
· Set both Shutter bl ock and Front housing
at the charge condition.
· Make sure that the gap "a" should be as shown below.
• Tighten scre ws in numerical order
( <D , ® , @ , @ ) as shown in diagram s.
[
Adj/Confirmation ] Mechanical back
Sta ndard: 45 . 46 + 0.02 mm
Al
a<0 . 2mm . ': ' /
Front hous ing block
TY-C NL· E 2.0x 3.0
©
I TY-CNM-2.0 X6.S
TY -C NM ·2.0X7.S y CD i
