Pentax MZ-5 - Main Unit and Front Housing Block

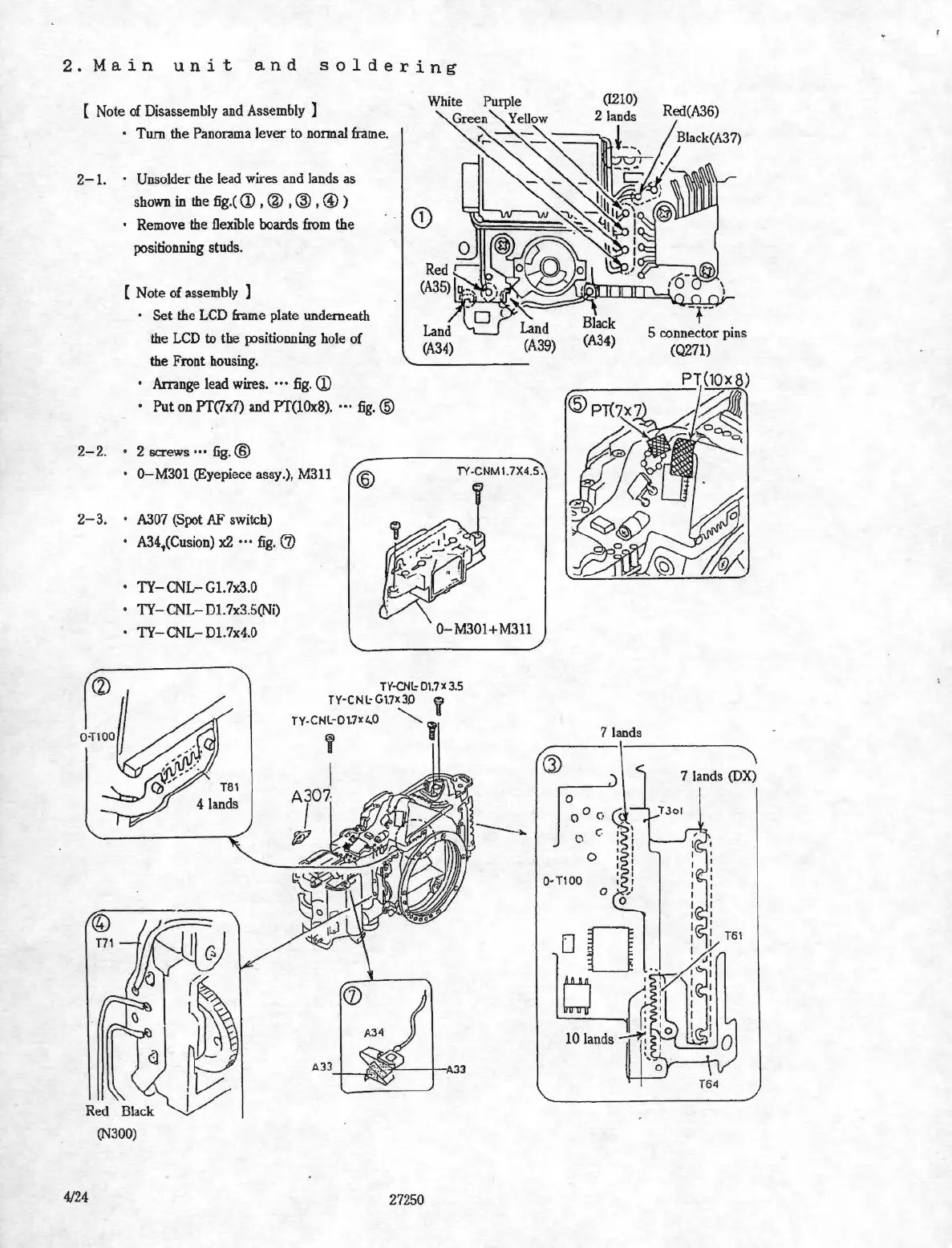

2. Main unit and soldering
[ Note of Disassembly and Assembly ]
• Turn the Panorama lever to normal frame.
2-1. Unsolder the lead wires and lands as
shown
in the fig.( CD , ® , @ , @ )
• Remove the flexible boards from the
positionning studs.
[ Note
of assembly ]
•
Set the LCD frame plate underneath
the
LCD to the positionning hole of
the Front housing.
Arrange lead wires. • · · fig.
(D
Put on PT(lx7) and PT(l0x8) . ... fig.@
2-2.
2 screws .. • fig. @
0- M301 (Eyepiece assy.), M311 ®
2-3. A307 (Spot AF switch)
A34,(Cusion) x2 .. • fig. <J)
4124
TY-CNL-Gl.7x3.0
TY-CNL-DL7x3.5(Ni)
TY-CNL-Dl.7x4.0
(N300)
A33
27250
TY ·CNMl.7X4. 5.
O-M301+M311
7 lands
(DX)
